固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDH3D13SNP-2R5MCFIXED IND 2.5UH 1.85A 122MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.85 A | 1.4A | - | Unshielded | 122mOhm Max | 2.5 µH | - | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | - | - | 100 kHz | 0.055" (1.40mm) |
|
|
CDH3D13SNP-3R6MCFIXED IND 3.6UH 1.65A 150MOHM SM Sumida America Components Inc. |
0 | - |
|
数据表 |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.65 A | 1.25A | - | Unshielded | 150mOhm Max | 3.6 µH | - | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | - | - | 100 kHz | 0.055" (1.40mm) |
|
|
CDH3D13SNP-4R7MCFIXED IND 4.7UH 1.4A 175MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.4 A | 1.15A | - | Unshielded | 175mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | - | - | 100 kHz | 0.055" (1.40mm) |
|
|
CDH3D13SNP-7R0MCFIXED IND 7UH 1.3A 250 MOHM SMD Sumida America Components Inc. |
0 | - |
|
数据表 |
CDH3D13/S | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.3 A | 950mA | - | Unshielded | 250mOhm Max | 7 µH | - | - | Surface Mount | - | 0.157" L x 0.150" W (4.00mm x 3.80mm) | - | - | 100 kHz | 0.055" (1.40mm) |
|
CDRH8D58/LDNP-5R0NCFIXED IND 5UH 6A 17.5 MOHM SMD Sumida America Components Inc. |
63 | - |
|
数据表 |
CDRH8D58/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 6 A | 3.8A | - | Shielded | 17.5mOhm Max | 5 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.236" (6.00mm) |
|
|
CDRH8D58/LDNP-100NCFIXED IND 10UH 4.5A 25.6MOHM SMD Sumida America Components Inc. |
84 | - |
|
数据表 |
CDRH8D58/LD | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±30% | 4.5 A | 2.6A | - | Shielded | 25.6mOhm Max | 10 µH | - | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | -40°C ~ 105°C | 100 kHz | 0.236" (6.00mm) |
|
CDRH10D48/ANP-7R2MCFIXED IND 7.2UH 2.9A 29 MOHM SMD Sumida America Components Inc. |
75 | - |
|
数据表 |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 2.9 A | - | - | Shielded | 29mOhm Max | 7.2 µH | - | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.177" (4.50mm) |
|
CLS62NP-220NCFIXED IND 22UH 468MA 355MOHM SMD Sumida America Components Inc. |
92 | - |
|
数据表 |
CLS | 4-SMD | Tape & Reel (TR) | Active | - | - | ±30% | 468 mA | - | - | Shielded | 355mOhm Max | 22 µH | - | - | Surface Mount | - | 0.268" L x 0.260" W (6.80mm x 6.60mm) | - | - | 2.52 MHz | 0.098" (2.50mm) |
|

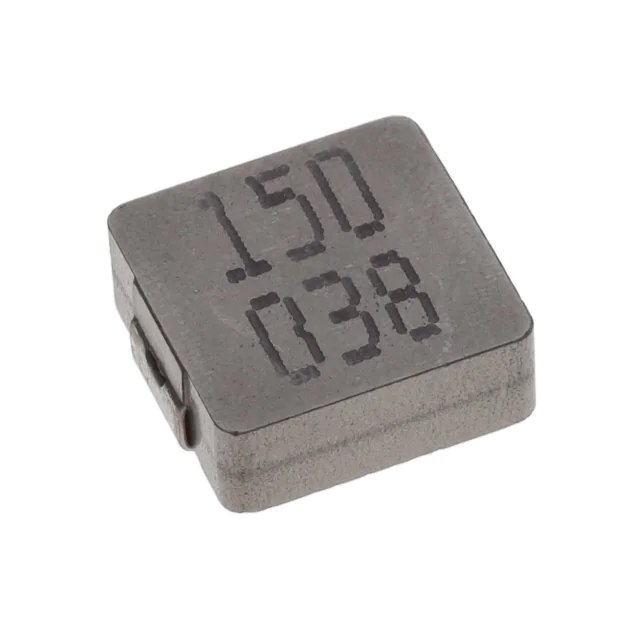

125CDMCCDS-150MCFIXED IND 15UH 8.5A 26 MOHM SMD Sumida America Components Inc. |
63 | - |
|
数据表 |
125CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 8.5 A | 11A | SMD | Shielded | 26mOhm Max | 15 µH | - | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | - | -55°C ~ 125°C | 100 kHz | 0.197" (5.00mm) |
|
CDRH60D45BT150NP-150MCFIXED IND 15UH 2A 76.8 MOHM SMD Sumida America Components Inc. |
1,000 | - |
|
数据表 |
CDRH60D45B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | ±20% | 2 A | 2.3A | - | Shielded | 76.8mOhm | 15 µH | - | - | Surface Mount | AEC-Q200 | 0.260" L x 0.248" W (6.60mm x 6.30mm) | - | -55°C ~ 150°C | 100 kHz | 0.189" (4.80mm) |
