固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

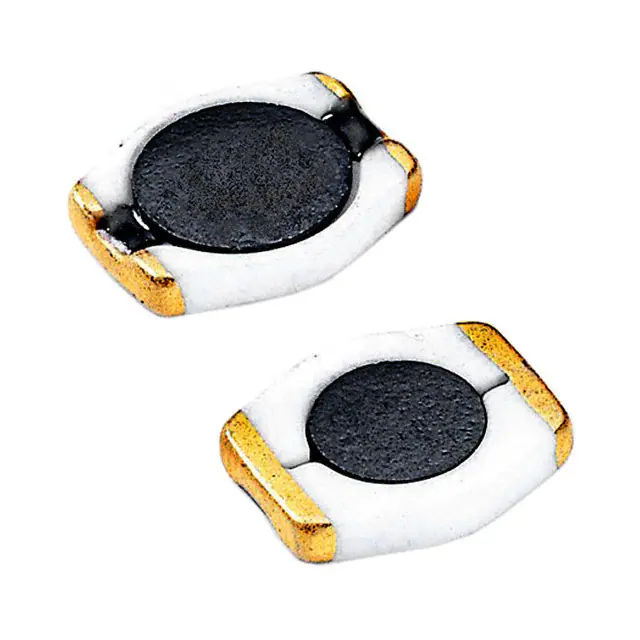

SC2506-100FIXED IND 10UH 1.1A 240 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.1 A | 1A | - | Unshielded | 240mOhm Max | 10 µH | - | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | - | - | 100 kHz | 0.065" (1.65mm) |
|
|
SC2506-101FIXED IND 100UH 400MA 2 OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 400 mA | 300mA | - | Unshielded | 2Ohm Max | 100 µH | - | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | - | - | 100 kHz | 0.065" (1.65mm) |
|
|
SC2506-150FIXED IND 15UH 900MA 300MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 900 mA | 900mA | - | Unshielded | 300mOhm Max | 15 µH | - | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | - | - | 100 kHz | 0.065" (1.65mm) |
|
|
SC2506-220FIXED IND 22UH 780MA 420MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 780 mA | 700mA | - | Unshielded | 420mOhm Max | 22 µH | - | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | - | - | 100 kHz | 0.065" (1.65mm) |
|
|
SC2506-221FIXED IND 220UH 240MA 4.6OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 240 mA | 220mA | - | Unshielded | 4.6Ohm Max | 220 µH | - | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | - | - | 100 kHz | 0.065" (1.65mm) |
|
|
SC2506-330FIXED IND 33UH 680MA 650MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 680 mA | 600mA | - | Unshielded | 650mOhm Max | 33 µH | - | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | - | - | 100 kHz | 0.065" (1.65mm) |
|
|
SC2506-331FIXED IND 330UH 190MA 7.3OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 190 mA | 180mA | - | Unshielded | 7.3Ohm Max | 330 µH | - | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | - | - | 100 kHz | 0.065" (1.65mm) |
|
|
SC2506-470FIXED IND 47UH 560MA 880MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 560 mA | 500mA | - | Unshielded | 880mOhm Max | 47 µH | - | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | - | - | 100 kHz | 0.065" (1.65mm) |
|
|
SC2506-471FIXED IND 470UH 160MA 12 OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 160 mA | 140mA | - | Unshielded | 12Ohm Max | 470 µH | - | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | - | - | 100 kHz | 0.065" (1.65mm) |
|
|
SC2506-4R7FIXED IND 4.7UH 1.6A 145MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC2506 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.6 A | 1.6A | - | Unshielded | 145mOhm Max | 4.7 µH | - | - | Surface Mount | - | 0.364" L x 0.310" W (9.25mm x 7.87mm) | - | - | 100 kHz | 0.065" (1.65mm) |
