固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

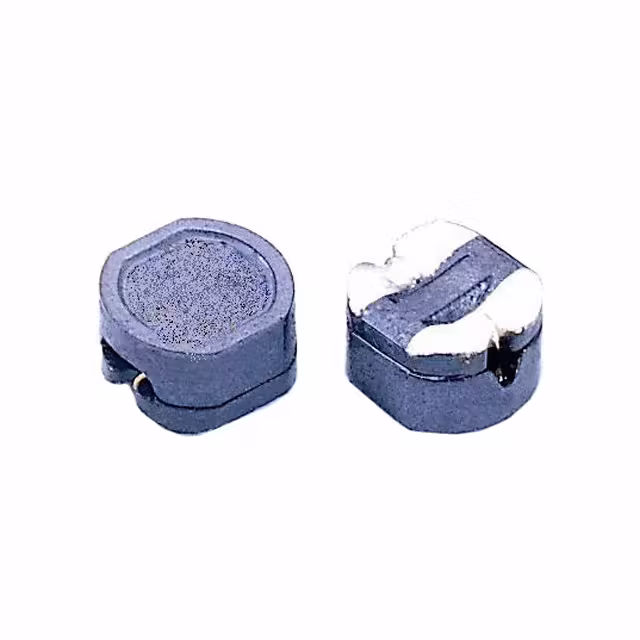

SCR63B-330FIXED IND 33UH 890MA 410MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 890 mA | 610mA | - | Shielded | 410mOhm Max | 33 µH | - | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.138" (3.50mm) |
|
|
SCR63B-680FIXED IND 68UH 570MA 820MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 570 mA | 420mA | - | Shielded | 820mOhm Max | 68 µH | - | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.138" (3.50mm) |
|
SC1704-150FIXED IND 15UH 600MA 660MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 600 mA | 400mA | - | Unshielded | 660mOhm Max | 15 µH | - | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.043" (1.10mm) |
|
|
SC1704-151FIXED IND 150UH 190MA 6.4OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 190 mA | 130mA | - | Unshielded | 6.4Ohm Max | 150 µH | - | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.043" (1.10mm) |
|
|
SC1704-1R2FIXED IND 1.2UH 1.7A 120MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±30% | 1.7 A | 1.5A | - | Unshielded | 120mOhm Max | 1.2 µH | - | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.043" (1.10mm) |
|
|
SC1704-1R5FIXED IND 1.5UH 1.5A 140MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±30% | 1.5 A | 1.05A | - | Unshielded | 140mOhm Max | 1.5 µH | - | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.043" (1.10mm) |
|
|
SC1704-2R2FIXED IND 2.2UH 1.35A 150MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.35 A | 900mA | - | Unshielded | 150mOhm Max | 2.2 µH | - | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.043" (1.10mm) |
|
|
SC1704-331FIXED IND 330UH 130MA 15 OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 130 mA | 90mA | - | Unshielded | 15Ohm Max | 330 µH | - | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.043" (1.10mm) |
|
|
SC1704-3R3FIXED IND 3.3UH 1.25A 190MOHM SM Signal Transformer |
0 | - |
|
数据表 |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.25 A | 800mA | - | Unshielded | 190mOhm Max | 3.3 µH | - | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.043" (1.10mm) |
|
|
SC1704-470FIXED IND 47UH 350MA 2.16OHM SMD Signal Transformer |
0 | - |
|
数据表 |
SC1704 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 350 mA | 200mA | - | Unshielded | 2.16Ohm Max | 47 µH | - | - | Surface Mount | - | 0.264" L x 0.220" W (6.70mm x 5.60mm) | - | -40°C ~ 125°C | 100 kHz | 0.043" (1.10mm) |
