固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F1C1-201612-R68MFIXED IND 0.68UH 5.3A23 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 5.3 A | 5.3A | 0806 | Shielded | 23mOhm Max | 680 nH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
F1C1-201612-R24MFIXED IND 0.24UH 8.6A 11.0 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 8.6 A | 8.7A | 0806 | Shielded | 11mOhm Max | 240 nH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
F1C1-201612-1R0MFIXED IND 1.0UH 4.5A 36 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 4.5 A | 4.5A | 0806 | Shielded | 36mOhm Max | 1 µH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.047" (1.20mm) |
|
|
F1C1-201610-R10MFIXED IND 0.10UH 8.0A 12 MOHM Signal Transformer |
0 | - |
|
数据表 |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | ±20% | 8 A | 8.4A | 0806 | Shielded | 12mOhm Max | 100 nH | - | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
CH-2FIXED IND 70MH 2A 900 MOHM CHASS Signal Transformer |
4 | - |
|
数据表 |
- | Nonstandard | Box | Active | - | - | - | 2 A | - | - | Unshielded | 900mOhm | 70 mH | - | - | Chassis Mount | - | 3.374" L x 2.752" W (85.70mm x 69.90mm) | - | - | - | 2.874" (73.00mm) |
|

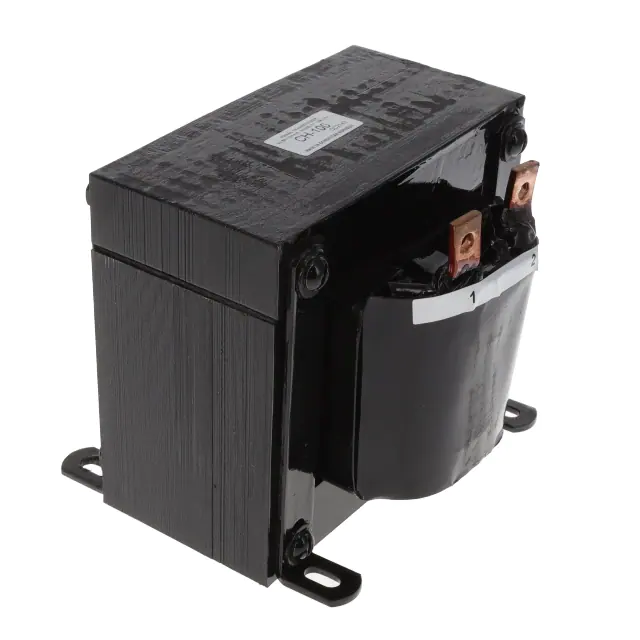

CH-100FIXED IND 500UH 100A 5 MOHM CHAS Signal Transformer |
0 | - |
|
数据表 |
- | Nonstandard | Box | Active | - | - | - | 100 A | - | - | Unshielded | 5mOhm | 500 µH | - | - | Chassis Mount | - | 6.374" L x 6.252" W (161.90mm x 158.80mm) | - | - | - | 5.374" (136.50mm) |
|
SCR63B-100FIXED IND 10UH 1.8A 140 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.8 A | 1A | - | Shielded | 140mOhm Max | 10 µH | - | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.138" (3.50mm) |
|
|
SCR63B-120FIXED IND 12UH 1.53A 160MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.53 A | 940mA | - | Shielded | 160mOhm Max | 12 µH | - | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.138" (3.50mm) |
|
|
SCR63B-150FIXED IND 15UH 1.37A 180MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.37 A | 860mA | - | Shielded | 180mOhm Max | 15 µH | - | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.138" (3.50mm) |
|
|
SCR63B-220FIXED IND 22UH 1.1A 320 MOHM SMD Signal Transformer |
0 | - |
|
数据表 |
SCR63B | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | ±20% | 1.1 A | 760mA | - | Shielded | 320mOhm Max | 22 µH | - | - | Surface Mount | - | 0.256" L x 0.232" W (6.50mm x 5.90mm) | - | -40°C ~ 125°C | 2.52 MHz | 0.138" (3.50mm) |
