固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0402-47NG-TFIXED IND 47NH 150MA 750MOHM SMD Abracon LLC |
8,304 | - |
|
数据表 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 150 mA | - | 0402 (1005 Metric) | Unshielded | 750mOhm Max | 47 nH | 20 @ 250MHz | 2.1GHz | Surface Mount | - | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
AISC-0402HP-2N2B-TFIXED IND 2.2NH 2.1A 38 MOHM SMD Abracon LLC |
7,539 | - |
|
数据表 |
AISC-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±0.2nH | 2.1 A | - | 0402 (1005 Metric) | Unshielded | 38mOhm Max | 2.2 nH | 22 @ 250MHz | 8.5GHz | Surface Mount | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
.jpg)
|
AIML-1008HC-3R3M-TFIXED IND 3.3UH 1.3A 120MOHM SMD Abracon LLC |
7,064 | - |
|
数据表 |
AIML-1008HC | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | ±20% | 1.3 A | - | 1008 (2520 Metric) | Shielded | 120mOhm | 3.3 µH | - | 30MHz | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | -55°C ~ 125°C | 1 MHz | 0.039" (1.00mm) |
|
AISC-0805-R22G-TFIXED IND 220NH 400MA 1.1OHM SMD Abracon LLC |
5,886 | - |
|
数据表 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 400 mA | - | 0805 | Unshielded | 1.1Ohm Max | 220 nH | 45 @ 250MHz | 850MHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 100 MHz | 0.061" (1.55mm) |
|
|
AISC-0805-R27G-TFIXED IND 270NH 350MA 1 OHM SMD Abracon LLC |
5,710 | - |
|
数据表 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 350 mA | - | 0805 | Unshielded | 1Ohm Max | 270 nH | 38 @ 250MHz | 680MHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 100 MHz | 0.061" (1.55mm) |
|

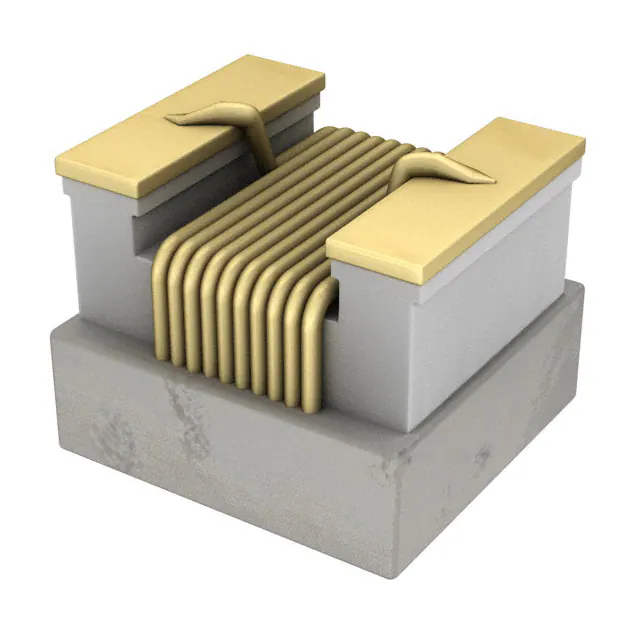

AISC-1008-R68J-TFIXED IND 680NH 400MA 1.47OHM SM Abracon LLC |
5,405 | - |
|
数据表 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | 1008 (2520 Metric) | Unshielded | 1.47Ohm Max | 680 nH | 45 @ 100MHz | 360MHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.090" (2.29mm) |
|
|
AISC-0402HP-4N7J-TFIXED IND 4.7NH 1.4A 75 MOHM SMD Abracon LLC |
4,976 | - |
|
数据表 |
AISC-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 1.4 A | - | 0402 (1005 Metric) | Unshielded | 75mOhm Max | 4.7 nH | 20 @ 250MHz | 6.85GHz | Surface Mount | - | 0.039" L x 0.022" W (1.00mm x 0.55mm) | - | -40°C ~ 125°C | 250 MHz | 0.024" (0.60mm) |
|
|
AISC-1008-R10J-TFIXED IND 100NH 650MA 560MOHM SM Abracon LLC |
4,000 | - |
|
数据表 |
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 650 mA | - | 1008 (2520 Metric) | Unshielded | 560mOhm Max | 100 nH | 60 @ 350MHz | 1GHz | Surface Mount | - | 0.115" L x 0.110" W (2.92mm x 2.79mm) | - | -40°C ~ 125°C | 25 MHz | 0.090" (2.29mm) |
|
ASPI-4030S-2R2N-TFIXED IND 2.2UH 2.95A 30MOHM SMD Abracon LLC |
24,477 | - |
|
数据表 |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±30% | 2.95 A | 4.9A | - | Shielded | 30mOhm | 2.2 µH | - | 52MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
|
|
ASPI-4030S-3R3M-TFIXED IND 3.3UH 2.4A 40 MOHM SMD Abracon LLC |
36,264 | - |
|
数据表 |
ASPI-4030S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | ±20% | 2.4 A | 3.3A | - | Shielded | 40mOhm | 3.3 µH | - | 38MHz | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | -40°C ~ 125°C | 100 kHz | 0.118" (3.00mm) |
