固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AIMC-0402HQ-3N3C-TFIXED IND 3.3NH 700MA 90MOHM SMD Abracon LLC |
9,464 | - |
|
数据表 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 700 mA | - | 0402 (1005 Metric) | Unshielded | 90mOhm Max | 3.3 nH | 20 @ 250MHz | 6GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
AISC-0402-5N1J-TFIXED IND 5.1NH 800MA 83MOHM SMD Abracon LLC |
8,435 | - |
|
数据表 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 800 mA | - | 0402 (1005 Metric) | Unshielded | 83mOhm Max | 5.1 nH | 23 @ 250MHz | 5.8GHz | Surface Mount | - | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
AIMC-0402HQ-4N7C-TFIXED IND 4.7NH 600MA 130MOHM SM Abracon LLC |
8,400 | - |
|
数据表 |
AIMC-0402HQ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | ±0.2nH | 600 mA | - | 0402 (1005 Metric) | Unshielded | 130mOhm Max | 4.7 nH | 20 @ 250MHz | 6GHz | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | - | -55°C ~ 125°C | 250 MHz | 0.026" (0.65mm) |
|
|
AISC-0402-12NJ-TFIXED IND 12NH 640MA 120MOHM SMD Abracon LLC |
7,376 | - |
|
数据表 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 640 mA | - | 0402 (1005 Metric) | Unshielded | 120mOhm Max | 12 nH | 26 @ 250MHz | 3.6GHz | Surface Mount | - | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
AISC-0603-R015G-TFIXED IND 15NH 550MA 150MOHM SMD Abracon LLC |
6,000 | - |
|
数据表 |
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 550 mA | - | - | Unshielded | 150mOhm Max | 15 nH | 37 @ 250MHz | 6GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 250 MHz | 0.040" (1.02mm) |
|
|
AISC-0402-23NJ-TFIXED IND 23NH 400MA 250MOHM SMD Abracon LLC |
5,935 | - |
|
数据表 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | 0402 (1005 Metric) | Unshielded | 250mOhm Max | 23 nH | 26 @ 250MHz | 2.72GHz | Surface Mount | - | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
AISC-0402-11NJ-TFIXED IND 11NH 640MA 120MOHM SMD Abracon LLC |
5,871 | - |
|
数据表 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 640 mA | - | 0402 (1005 Metric) | Unshielded | 120mOhm Max | 11 nH | 26 @ 250MHz | 3.68GHz | Surface Mount | - | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|
|
AISC-0402-27NJ-TFIXED IND 27NH 400MA 300MOHM SMD Abracon LLC |
5,672 | - |
|
数据表 |
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 400 mA | - | 0402 (1005 Metric) | Unshielded | 300mOhm Max | 27 nH | 26 @ 250MHz | 2.48GHz | Surface Mount | - | 0.047" L x 0.025" W (1.19mm x 0.64mm) | - | -40°C ~ 125°C | 250 MHz | 0.026" (0.66mm) |
|

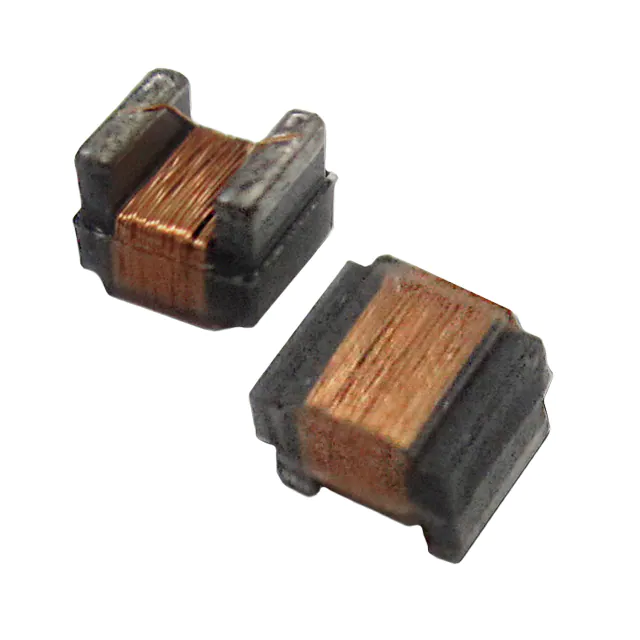

AISC-0805-R39J-TFIXED IND 390NH 290MA 1.5OHM SMD Abracon LLC |
4,625 | - |
|
数据表 |
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±5% | 290 mA | - | 0805 | Unshielded | 1.5Ohm Max | 390 nH | 35 @ 250MHz | 560MHz | Surface Mount | - | 0.090" L x 0.068" W (2.29mm x 1.73mm) | - | -40°C ~ 125°C | 100 MHz | 0.061" (1.55mm) |
|
|
AISC-0603-R18G-TFIXED IND 180NH 180MA 1.38OHM SM Abracon LLC |
4,090 | - |
|
数据表 |
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | ±2% | 180 mA | - | - | Unshielded | 1.38Ohm Max | 180 nH | 25 @ 100MHz | 1.3GHz | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | - | -40°C ~ 125°C | 100 MHz | 0.040" (1.02mm) |
