固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWS-4.3-10FIXED IND 10UH 4.3A 26 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 4.3 A | - | - | Unshielded | 26mOhm | 10 µH | - | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | - | -40°C ~ 130°C | 10 kHz | 0.325" (8.25mm) |
|
SH260S-4.3-10FIXED IND 10UH 4.3A 26 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 4.3 A | - | - | Unshielded | 26mOhm | 10 µH | - | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.404" (10.25mm) |
|
SWT-0.36-375FIXED IND 375UH 360MA 1.3 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 360 mA | - | - | Unshielded | 1.3Ohm | 375 µH | - | - | Through Hole | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | - | -40°C ~ 125°C | 10 kHz | 0.307" (7.80mm) |
|

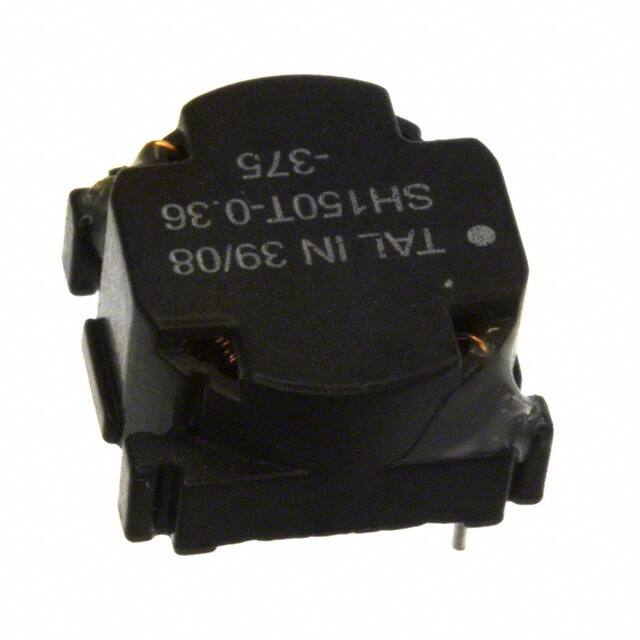

SH150T-0.36-375FIXED IND 375UH 360MA 1.3 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 360 mA | - | - | Unshielded | 1.3Ohm | 375 µH | - | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.311" (7.90mm) |
|
SWT-1.54-77FIXED IND 77UH 1.54A 200 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 1.54 A | - | - | Unshielded | 200mOhm | 77 µH | - | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.346" (8.80mm) |
|

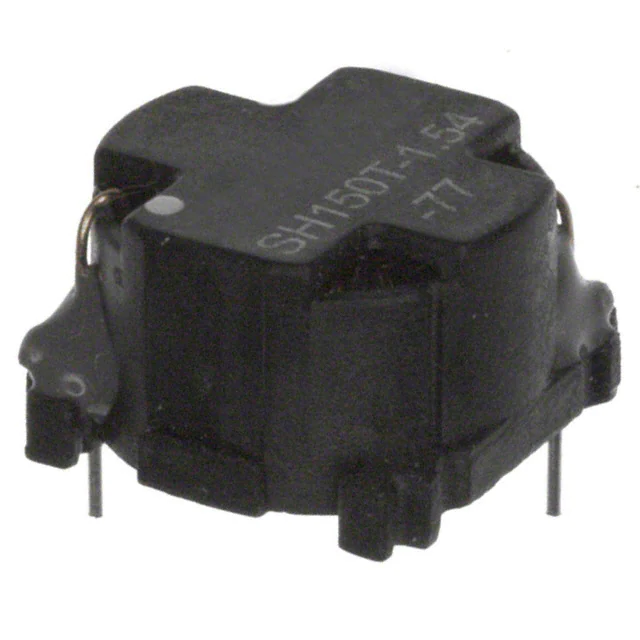

SH150T-1.54-77FIXED IND 77UH 1.54A 200 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 1.54 A | - | - | Unshielded | 200mOhm | 77 µH | - | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.358" (9.10mm) |
|

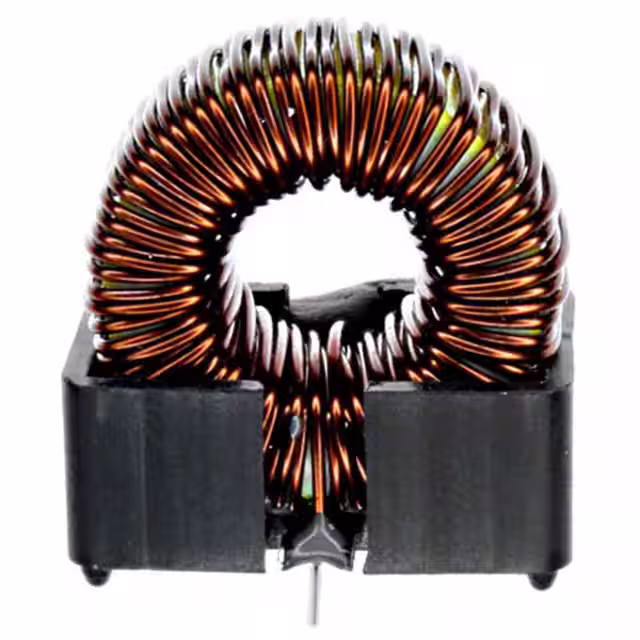

SH50C-0.64-470FIXED IND 470UH 640MA 160MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 640 mA | - | - | Unshielded | 160mOhm Max | 470 µH | - | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | - | -40°C ~ 125°C | 10 kHz | 1.059" (26.90mm) |
|
|
SWS-5.0-15FIXED IND 15UH 5A 27 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 5 A | - | - | Unshielded | 27mOhm | 15 µH | - | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | - | -40°C ~ 130°C | 10 kHz | 0.400" (10.16mm) |
|
|
SH260S-5.0-15FIXED IND 15UH 5A 27 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 5 A | - | - | Unshielded | 27mOhm | 15 µH | - | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.451" (11.45mm) |
|
|
SWT-1.26-112FIXED IND 112UH 1.26A 300MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 1.26 A | - | - | Unshielded | 300mOhm | 112 µH | - | - | Through Hole | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.346" (8.80mm) |
