固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SH150S-1.20-38FIXED IND 38UH 1.2A 100 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 1.2 A | - | - | Unshielded | 100mOhm | 38 µH | - | - | Surface Mount | - | 0.559" L x 0.551" W (14.20mm x 14.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.337" (8.55mm) |
|
SWS-3.00-25FIXED IND 25UH 3A 40 MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 40mOhm | 25 µH | - | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.400" (10.16mm) |
|

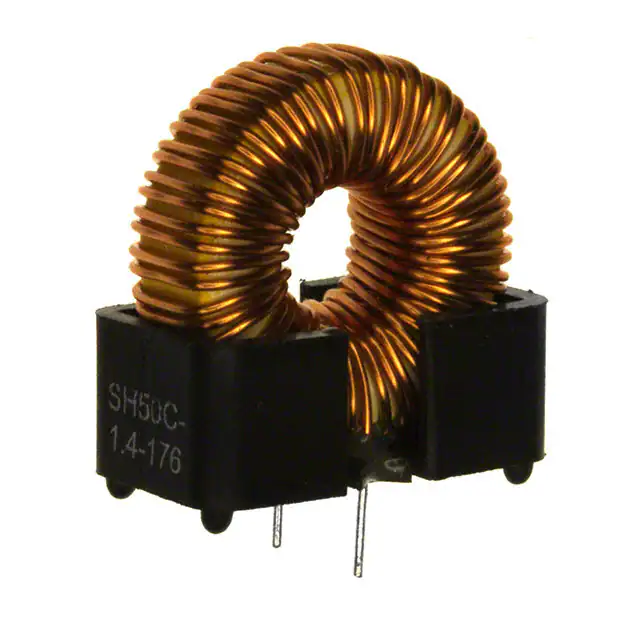

SH50C-1.4-176FIXED IND 176UH 1.4A 140 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 1.4 A | - | - | Unshielded | 140mOhm Max | 176 µH | - | - | Through Hole | - | 0.827" L x 0.449" W (21.00mm x 11.40mm) | - | -40°C ~ 125°C | 10 kHz | 0.937" (23.80mm) |
|

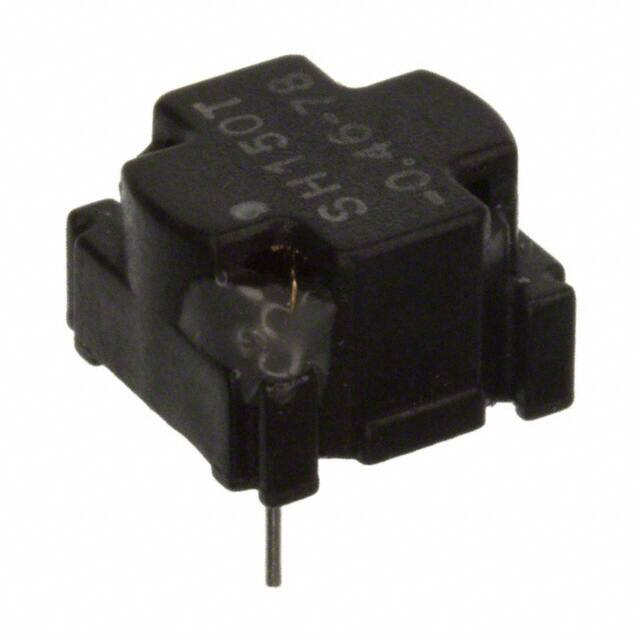

SH150T-0.46-78FIXED IND 78UH 460MA 800 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 460 mA | - | - | Unshielded | 800mOhm | 78 µH | - | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.280" (7.10mm) |
|
SH150T-1.02-17FIXED IND 17UH 1.02A 100 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 1.02 A | - | - | Unshielded | 100mOhm | 17 µH | - | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.280" (7.10mm) |
|
SWC-3.0-150FIXED IND 150UH 3A 100 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 100mOhm Max | 150 µH | - | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | - | -40°C ~ 125°C | 10 kHz | 1.059" (26.90mm) |
|
|
SWT-0.16-178FIXED IND 178UH 160MA 2.8 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 160 mA | - | - | Unshielded | 2.8Ohm | 178 µH | - | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
SWT-0.25-79FIXED IND 79UH 250MA 1.5 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 250 mA | - | - | Unshielded | 1.5Ohm | 79 µH | - | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | - | -40°C ~ 125°C | 10 kHz | 0.217" (5.50mm) |
|
|
SH150T-0.16-178FIXED IND 178UH 160MA 2.8 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 160 mA | - | - | Unshielded | 2.8Ohm | 178 µH | - | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | - | -40°C ~ 125°C | 10 kHz | 0.201" (5.10mm) |
|
|
SH150T-0.25-79FIXED IND 79UH 250MA 1.5 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 250 mA | - | - | Unshielded | 1.5Ohm | 79 µH | - | - | Through Hole | - | 0.339" L x 0.339" W (8.60mm x 8.60mm) | - | -40°C ~ 125°C | 10 kHz | 0.201" (5.10mm) |
