固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

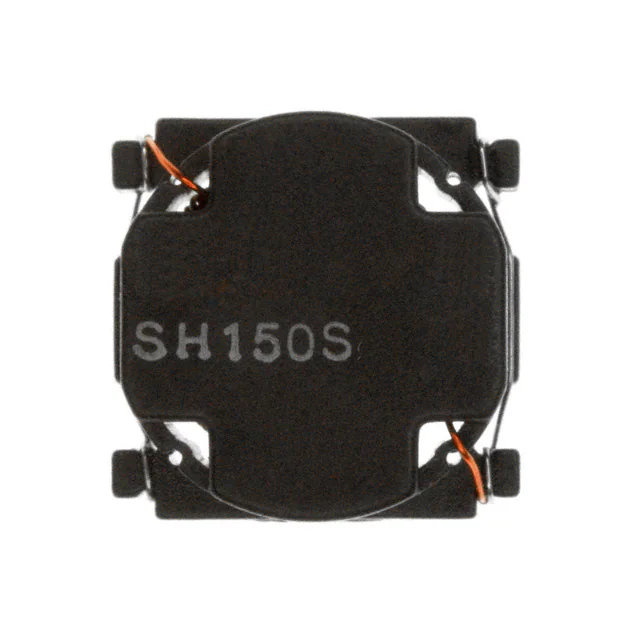

SH150S-1.26-112FIXED IND 112UH 1.26A 300MOHM SM Amgis, LLC |
2,411 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 1.26 A | - | - | Unshielded | 300mOhm | 112 µH | - | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.388" (9.85mm) |
|
|
SH150S-1.54-77FIXED IND 77UH 1.54A 200MOHM SMD Amgis, LLC |
827 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 1.54 A | - | - | Unshielded | 200mOhm | 77 µH | - | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.388" (9.85mm) |
|
SH50F-3.0-47FIXED IND 47UH 3A 50 MOHM TH Amgis, LLC |
1,943 | - |
|
数据表 |
SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 50mOhm Max | 47 µH | - | - | Through Hole | - | 0.669" Dia (17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.492" (12.50mm) |
|
|
SH150S-2.24-37FIXED IND 37UH 2.24A 100MOHM SMD Amgis, LLC |
7,551 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 2.24 A | - | - | Unshielded | 100mOhm | 37 µH | - | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.388" (9.85mm) |
|
|
SH150S-2.74-24FIXED IND 24UH 2.74A 70 MOHM SMD Amgis, LLC |
290 | - |
|
数据表 |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 2.74 A | - | - | Unshielded | 70mOhm | 24 µH | - | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.388" (9.85mm) |
|

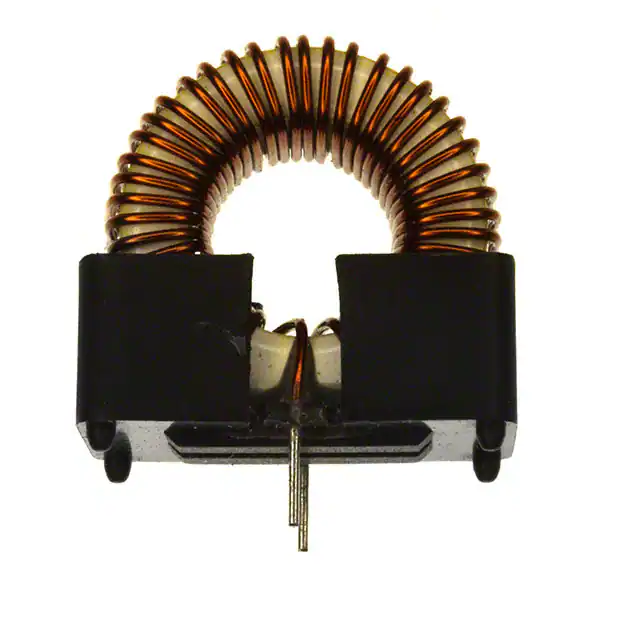

SH50C-3.0-150FIXED IND 150UH 3A 100 MOHM TH Amgis, LLC |
576 | - |
|
数据表 |
SH50 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 100mOhm Max | 150 µH | - | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | - | -40°C ~ 125°C | 10 kHz | 1.059" (26.90mm) |
|
SH50S-1.4-176FIXED IND 176UH 1.4A 140MOHM SMD Amgis, LLC |
1,422 | - |
|
数据表 |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 1.4 A | - | - | Unshielded | 140mOhm Max | 176 µH | - | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.411" (10.45mm) |
|
|
SH50S-1.4-220FIXED IND 220UH 1.4A 380MOHM SMD Amgis, LLC |
546 | - |
|
数据表 |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 1.4 A | - | - | Unshielded | 380mOhm Max | 220 µH | - | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.451" (11.45mm) |
|
SH150T-0.68-377FIXED IND 377UH 680MA 1 OHM TH Amgis, LLC |
230 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 680 mA | - | - | Unshielded | 1Ohm | 377 µH | - | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.358" (9.10mm) |
|

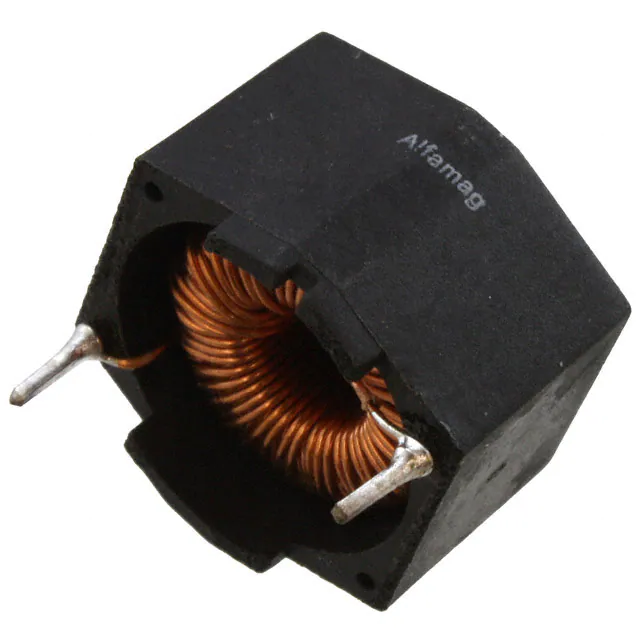

SH50F-1.4-220FIXED IND 220UH 1.4A 380 MOHM TH Amgis, LLC |
1,857 | - |
|
数据表 |
SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | ±20% | 1.4 A | - | - | Unshielded | 380mOhm Max | 220 µH | - | - | Through Hole | - | 0.669" Dia (17.00mm) | - | -40°C ~ 125°C | 10 kHz | 0.492" (12.50mm) |
