固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

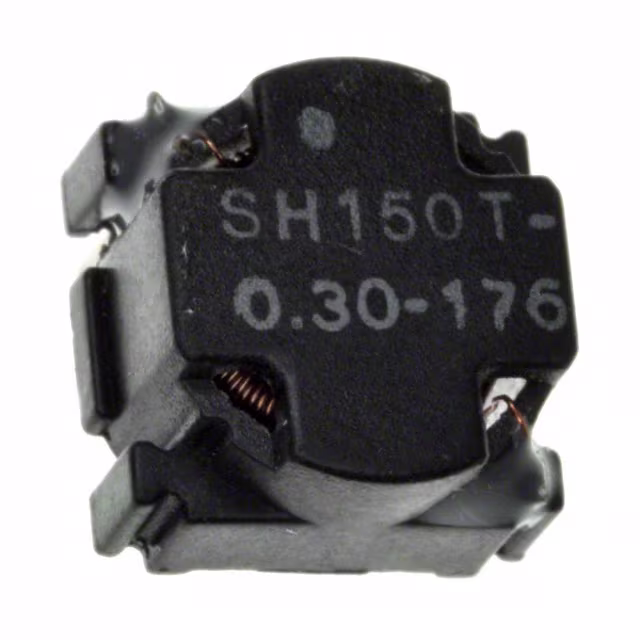

SH150T-0.30-176FIXED IND 176UH 300MA 1.4 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 300 mA | - | - | Unshielded | 1.4Ohm | 176 µH | - | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.280" (7.10mm) |
|
SH150T-0.25-256FIXED IND 256UH 250MA 2.2 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 250 mA | - | - | Unshielded | 2.2Ohm | 256 µH | - | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.280" (7.10mm) |
|
SWT-0.44-252FIXED IND 252UH 440MA 900MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 440 mA | - | - | Unshielded | 900mOhm | 252 µH | - | - | Through Hole | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | - | -40°C ~ 125°C | 10 kHz | 0.307" (7.80mm) |
|
|
SWT-0.54-173FIXED IND 173UH 540MA 600MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 540 mA | - | - | Unshielded | 600mOhm | 173 µH | - | - | Through Hole | - | 0.504" L x 0.504" W (12.80mm x 12.80mm) | - | -40°C ~ 125°C | 10 kHz | 0.307" (7.80mm) |
|

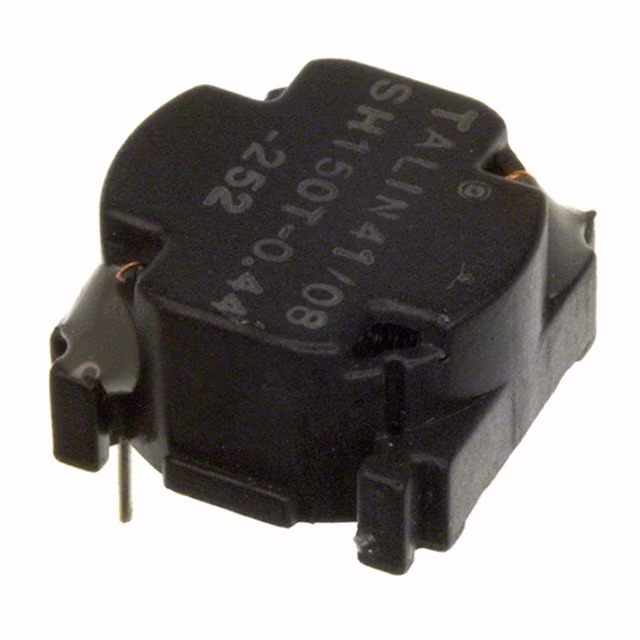

SH150T-0.44-252FIXED IND 252UH 440MA 900MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 440 mA | - | - | Unshielded | 900mOhm | 252 µH | - | - | Through Hole | - | 0.551" L x 0.559" W (14.00mm x 14.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.311" (7.90mm) |
|
SWS-1.4-220FIXED IND 220UH 1.4A 380MOHM SMD Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 1.4 A | - | - | Unshielded | 380mOhm Max | 220 µH | - | - | Surface Mount | - | 0.701" L x 0.669" W (17.80mm x 17.00mm) | - | -40°C ~ 125°C | 20 kHz | 0.435" (11.05mm) |
|
SWC-3.0-68FIXED IND 68UH 3A 20 MOHM TH Amgis, LLC |
0 | - |
|
数据表 |
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | ±20% | 3 A | - | - | Unshielded | 20mOhm Max | 68 µH | - | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | - | -40°C ~ 125°C | 10 kHz | 1.059" (26.90mm) |
|
SH50S-0.9-267FIXED IND 267UH 900MA 180MOHM SM Amgis, LLC |
0 | - |
|
数据表 |
SH50 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | ±20% | 900 mA | - | - | Unshielded | 180mOhm Max | 267 µH | - | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | - | -40°C ~ 125°C | 10 kHz | 0.411" (10.45mm) |
|

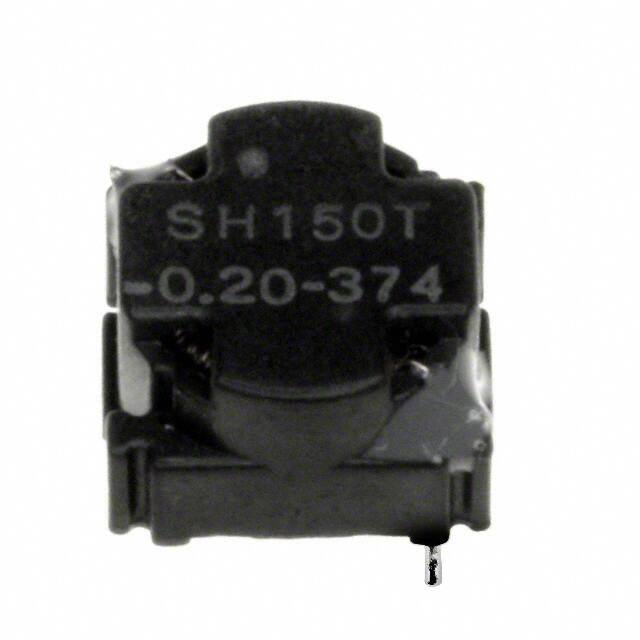

SH150T-0.20-374FIXED IND 374UH 200MA 2.7 OHM TH Amgis, LLC |
0 | - |
|
数据表 |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | ±20% | 200 mA | - | - | Unshielded | 2.7Ohm | 374 µH | - | - | Through Hole | - | 0.433" L x 0.441" W (11.00mm x 11.20mm) | - | -40°C ~ 125°C | 10 kHz | 0.280" (7.10mm) |
|
SWS-0.9-330FIXED IND 330UH 900MA 180MOHM SM Amgis, LLC |
0 | - |
|
数据表 |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | ±20% | 900 mA | - | - | Unshielded | 180mOhm Max | 330 µH | - | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | - | -40°C ~ 125°C | 20 kHz | 0.541" (13.75mm) |
