固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
159ZCFIXED IND 60MH 2A 700 MOHM CHASS Hammond Manufacturing |
27 | - |
|
数据表 |
159 | Nonstandard | Bulk | Active | - | - | ±15% | 2 A | - | - | Unshielded | 700mOhm | 60 mH | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | - | - | - | 2.630" (66.80mm) |
|
|
159SFIXED IND 4H 225MA 65 OHM CHASS Hammond Manufacturing |
6 | - |
|
数据表 |
159 | Nonstandard | Bulk | Active | - | - | ±15% | 225 mA | - | - | Unshielded | 65Ohm | 4 H | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | - | - | - | 2.630" (66.80mm) |
|
|
159VFIXED IND 1.5H 500MA 27 OHM CHAS Hammond Manufacturing |
77 | - |
|
数据表 |
159 | Nonstandard | Bulk | Active | - | - | ±15% | 500 mA | - | - | Unshielded | 27Ohm | 1.5 H | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | - | - | - | 2.630" (66.80mm) |
|
|
159ZAFIXED IND 300MH 1A 6OHM CHAS MNT Hammond Manufacturing |
11 | - |
|
数据表 |
159 | Nonstandard | Bulk | Active | - | - | ±15% | 1 A | - | - | Unshielded | 6Ohm | 300 mH | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | - | - | - | 2.630" (66.80mm) |
|
193TFIXED IND 50MH 2A 700 MOHM CHASS Hammond Manufacturing |
11 | - |
|
数据表 |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | ±15% | 2 A | - | - | Unshielded | 700mOhm | 50 mH | - | - | Chassis Mount | - | 2.750" L x 2.500" W (69.85mm x 63.50mm) | - | -40°C ~ 65°C | - | 3.125" (79.38mm) |
|
|
193DFIXED IND 8H 150MA 75 OHM CHASS Hammond Manufacturing |
4 | - |
|
数据表 |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | ±15% | 150 mA | - | - | Unshielded | 75Ohm | 8 H | - | - | Chassis Mount | - | 3.250" L x 2.500" W (82.55mm x 63.50mm) | - | -40°C ~ 65°C | - | 3.125" (79.38mm) |
|

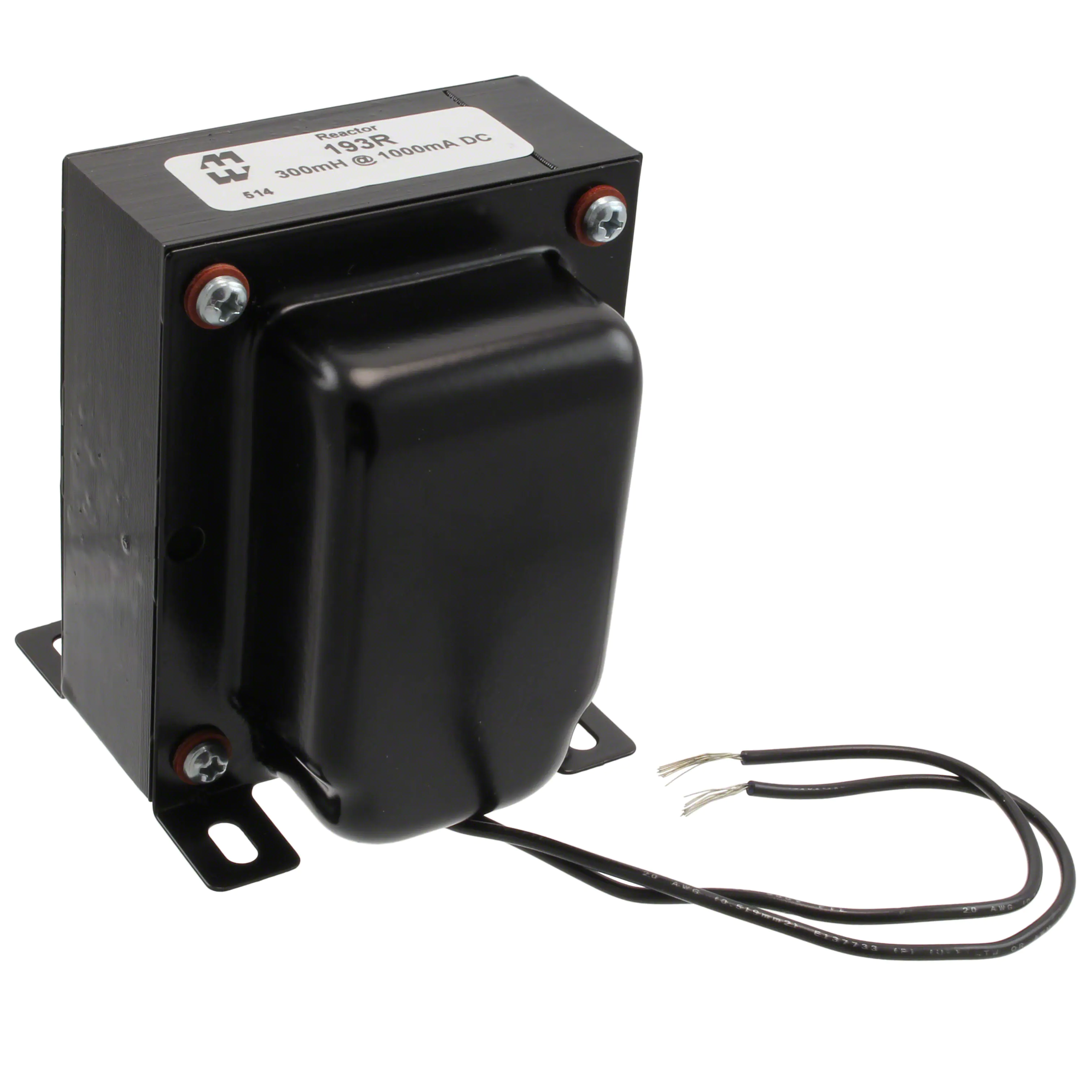

193RFIXED IND 300MH 1A 3.5 OHM CHASS Hammond Manufacturing |
6 | - |
|
数据表 |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | ±15% | 1 A | - | - | Unshielded | 3.5Ohm | 300 mH | - | - | Chassis Mount | - | 3.500" L x 3.130" W (88.90mm x 79.50mm) | - | -40°C ~ 65°C | - | 3.810" (96.77mm) |
|
193JFIXED IND 10H 200MA 82 OHM CHASS Hammond Manufacturing |
6 | - |
|
数据表 |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | ±15% | 200 mA | - | - | Unshielded | 82Ohm | 10 H | - | - | Chassis Mount | - | 3.750" L x 3.130" W (95.25mm x 79.50mm) | - | -40°C ~ 65°C | - | 3.810" (96.77mm) |
|
195C30FIXED IND 1MH 30A 9MOHM CHAS MNT Hammond Manufacturing |
18 | - |
|
数据表 |
195 | Nonstandard | Bulk | Active | - | - | ±15% | 30 A | - | - | Unshielded | 9mOhm | 1 mH | - | - | Chassis Mount | - | 3.750" L x 3.850" W (95.25mm x 97.79mm) | - | - | - | 3.130" (79.50mm) |
|
|
193SFIXED IND 1H 1A 5.75OHM CHAS MNT Hammond Manufacturing |
4 | - |
|
数据表 |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | ±15% | 1 A | - | - | Unshielded | 5.75Ohm | 1 H | - | - | Chassis Mount | - | 4.000" L x 3.750" W (101.60mm x 95.25mm) | - | -40°C ~ 65°C | - | 4.560" (115.82mm) |
