固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

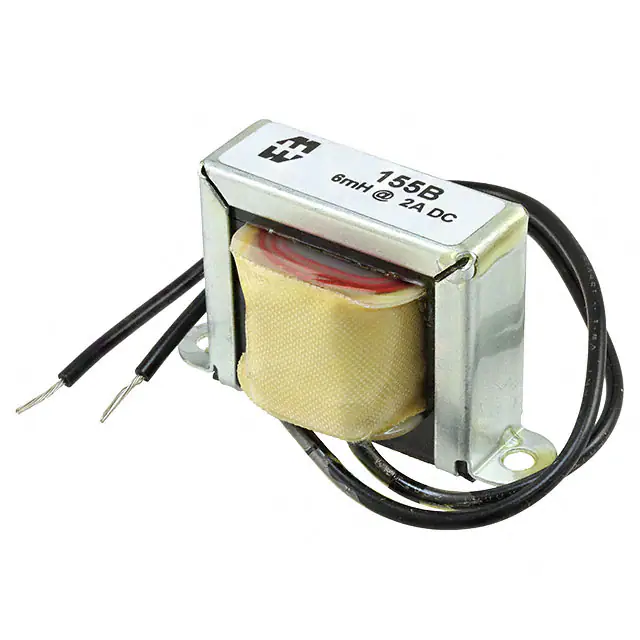

155BFIXED IND 6MH 2A 300 MOHM CHASS Hammond Manufacturing |
61 | - |
|
数据表 |
155 | Nonstandard | Bulk | Active | - | - | ±15% | 2 A | - | - | Unshielded | 300mOhm | 6 mH | - | - | Chassis Mount | - | 2.380" L x 1.380" W (60.45mm x 35.05mm) | - | - | - | 1.380" (35.05mm) |
|
194AFIXED IND 4H 50MA 167 OHM CHASS Hammond Manufacturing |
12 | - |
|
数据表 |
194 | Nonstandard | Box | Active | - | - | ±15% | 50 mA | - | - | Unshielded | 167Ohm | 4 H | - | - | Chassis Mount | - | 2.380" L x 1.200" W (60.45mm x 30.48mm) | - | - | - | 1.375" (34.93mm) |
|
156RFIXED IND 1.5H 200MA 56 OHM CHAS Hammond Manufacturing |
18 | - |
|
数据表 |
156 | Nonstandard | Bulk | Active | - | - | ±15% | 200 mA | - | - | Unshielded | 56Ohm | 1.5 H | - | - | Chassis Mount | - | 2.810" L x 1.500" W (71.37mm x 38.10mm) | - | - | - | 1.690" (42.93mm) |
|
|
194BFIXED IND 4H 90MA 108 OHM CHASS Hammond Manufacturing |
13 | - |
|
数据表 |
194 | Nonstandard | Box | Active | - | - | ±15% | 90 mA | - | - | Unshielded | 108Ohm | 4 H | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | - | - | - | 2.000" (50.80mm) |
|

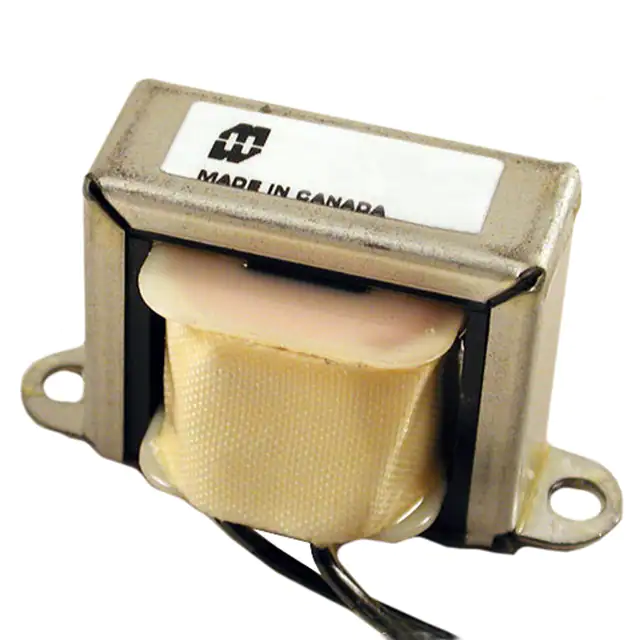

157DFIXED IND 1MH 10A 38 MOHM CHASS Hammond Manufacturing |
39 | - |
|
数据表 |
157 | Nonstandard | Bulk | Active | - | - | ±15% | 10 A | - | - | Unshielded | 38mOhm | 1 mH | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | - | - | - | 2.000" (50.80mm) |
|
159ZEFIXED IND 28MH 3A 430 MOHM CHASS Hammond Manufacturing |
38 | - |
|
数据表 |
159 | Nonstandard | Bulk | Active | - | - | ±15% | 3 A | - | - | Unshielded | 430mOhm | 28 mH | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | - | - | - | 2.630" (66.80mm) |
|
1539M31FIXED IND 5MH 2.2A 714 MOHM TH Hammond Manufacturing |
9 | - |
|
数据表 |
1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 2.2 A | - | - | Unshielded | 714mOhm Max | 5 mH | - | - | Through Hole | - | 1.500" Dia (38.10mm) | - | - | 1 kHz | 1.500" (38.10mm) |
|
|
159ZGFIXED IND 15MH 4A 250 MOHM CHASS Hammond Manufacturing |
28 | - |
|
数据表 |
159 | Nonstandard | Bulk | Active | - | - | ±15% | 4 A | - | - | Unshielded | 250mOhm | 15 mH | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | - | - | - | 2.630" (66.80mm) |
|
158MFIXED IND 10H 100MA 262 OHM CHAS Hammond Manufacturing |
15 | - |
|
数据表 |
158 | Nonstandard | Bulk | Active | - | - | ±15% | 100 mA | - | - | Unshielded | 262Ohm | 10 H | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | - | - | - | 2.000" (50.80mm) |
|
|
158QFIXED IND 5H 150MA 105 OHM CHASS Hammond Manufacturing |
15 | - |
|
数据表 |
158 | Nonstandard | Bulk | Active | - | - | ±15% | 150 mA | - | - | Unshielded | 105Ohm | 5 H | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | - | - | - | 2.000" (50.80mm) |
