固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1536WFIXED IND 125UH 3.5A 80 MOHM TH Hammond Manufacturing |
427 | - |
|
数据表 |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | ±20% | 3.5 A | - | - | Unshielded | 80mOhm | 125 µH | - | 2.65MHz | Through Hole | - | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - | - | 1 kHz | - |
|
1532CFIXED IND 24UH 800MA 340 MOHM TH Hammond Manufacturing |
119 | - |
|
数据表 |
1532 | Axial | Bulk | Active | Wirewound | - | ±10% | 800 mA | - | - | Unshielded | 340mOhm Max | 24 µH | 65 @ 2.5MHz | 25MHz | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - | - | 2.5 MHz | - |
|
|
1536XFIXED IND 250UH 2.5A 170 MOHM TH Hammond Manufacturing |
2,704 | - |
|
数据表 |
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | ±20% | 2.5 A | - | - | Unshielded | 170mOhm | 250 µH | - | 1.5MHz | Through Hole | - | 0.430" Dia x 1.250" L (10.92mm x 31.75mm) | - | - | 1 kHz | - |
|
1537EFIXED IND 10UH 20A 6 MOHM TH Hammond Manufacturing |
587 | - |
|
数据表 |
1537 | Axial | Bulk | Active | Molded | Ferrite | ±5% | 20 A | - | - | Unshielded | 6mOhm | 10 µH | - | - | Through Hole | - | 0.630" Dia x 1.250" L (16.00mm x 31.75mm) | - | - | 1 kHz | - |
|
1539M03FIXED IND 25UH 8A 23 MOHM TH Hammond Manufacturing |
490 | - |
|
数据表 |
1539 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | ±10% | 8 A | - | - | Unshielded | 23mOhm Max | 25 µH | - | - | Through Hole | - | 0.830" Dia (21.08mm) | - | - | 1 kHz | 0.910" (23.11mm) |
|
1538M11FIXED IND 50UH 8A 28 MOHM TH Hammond Manufacturing |
152 | - |
|
数据表 |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | ±10% | 8 A | - | - | Unshielded | 28mOhm Max | 50 µH | - | - | Through Hole | - | 0.880" Dia x 1.120" L (22.35mm x 28.45mm) | - | - | 1 kHz | - |
|
|
1538M02FIXED IND 10UH 9A 17 MOHM TH Hammond Manufacturing |
141 | - |
|
数据表 |
1538 | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | ±10% | 9 A | - | - | Unshielded | 17mOhm Max | 10 µH | - | - | Through Hole | - | 0.630" Dia x 1.120" L (16.00mm x 28.45mm) | - | - | 1 kHz | - |
|
|
1532AFIXED IND 10UH 1.5A 110 MOHM TH Hammond Manufacturing |
7,174 | - |
|
数据表 |
1532 | Axial | Bulk | Active | Wirewound | - | ±10% | 1.5 A | - | - | Unshielded | 110mOhm Max | 10 µH | 69 @ 2.5MHz | 40MHz | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - | - | 2.5 MHz | - |
|
159ZJFIXED IND 10MH 5A 160 MOHM CHASS Hammond Manufacturing |
101 | - |
|
数据表 |
159 | Nonstandard | Bulk | Active | - | - | ±15% | 5 A | - | - | Unshielded | 160mOhm | 10 mH | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | - | - | - | 2.630" (66.80mm) |
|

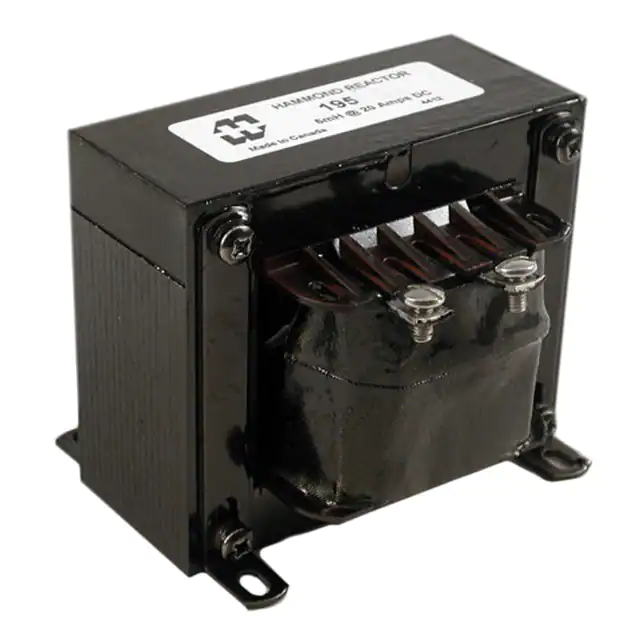

195C20FIXED IND 1MH 20A 13 MOHM CHASS Hammond Manufacturing |
47 | - |
|
数据表 |
195 | Nonstandard | Bulk | Active | - | - | ±15% | 20 A | - | - | Unshielded | 13mOhm | 1 mH | - | - | Chassis Mount | - | 3.000" L x 3.060" W (76.20mm x 77.72mm) | - | - | - | 2.500" (63.50mm) |
