固定电感器
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 供应商设备封装 | 屏蔽 | 直流电阻 (DCR) | 电感 | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 安装类型 | 额定值 | 尺寸 / 尺寸 | 特性 | 工作温度 | 电感频率 - 测试 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
195T10FIXED IND 100MH 10A 420 MOHM Hammond Manufacturing |
10 | - |
|
数据表 |
195 | Nonstandard | Bulk | Active | - | - | ±15% | 10 A | - | - | Unshielded | 420mOhm | 100 mH | - | - | Chassis Mount | - | 7.500" L x 6.000" W (190.50mm x 152.40mm) | - | - | - | 6.250" (158.75mm) |
|
|
195B150FIXED IND 500UH 150A 1.8 MOHM Hammond Manufacturing |
10 | - |
|
数据表 |
195 | Nonstandard | Bulk | Active | - | - | ±15% | 150 A | - | - | Unshielded | 1.8mOhm | 500 µH | - | - | Chassis Mount | - | 5.250" L x 5.500" W (133.35mm x 139.70mm) | - | - | - | 4.470" (113.54mm) |
|
|
195G50FIXED IND 5MH 50A 21 MOHM CHASS Hammond Manufacturing |
6 | - |
|
数据表 |
195 | Nonstandard | Bulk | Active | - | - | ±15% | 50 A | - | - | Unshielded | 21mOhm | 5 mH | - | - | Chassis Mount | - | 7.500" L x 6.500" W (190.50mm x 165.10mm) | - | - | - | 6.250" (158.75mm) |
|
|
195R20FIXED IND 50MH 20A 130 MOHM CHAS Hammond Manufacturing |
5 | - |
|
数据表 |
195 | Nonstandard | Bulk | Active | - | - | ±15% | 20 A | - | - | Unshielded | 130mOhm | 50 mH | - | - | Chassis Mount | - | 9.000" L x 8.250" W (228.60mm x 209.55mm) | - | - | - | 7.500" (190.50mm) |
|
1532HFIXED IND 100UH 400MA 3 OHM TH Hammond Manufacturing |
46 | - |
|
数据表 |
1532 | Axial | Bulk | Active | Wirewound | - | ±10% | 400 mA | - | - | Unshielded | 3Ohm Max | 100 µH | 107 @ 790kHz | 12MHz | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - | - | 790 kHz | - |
|

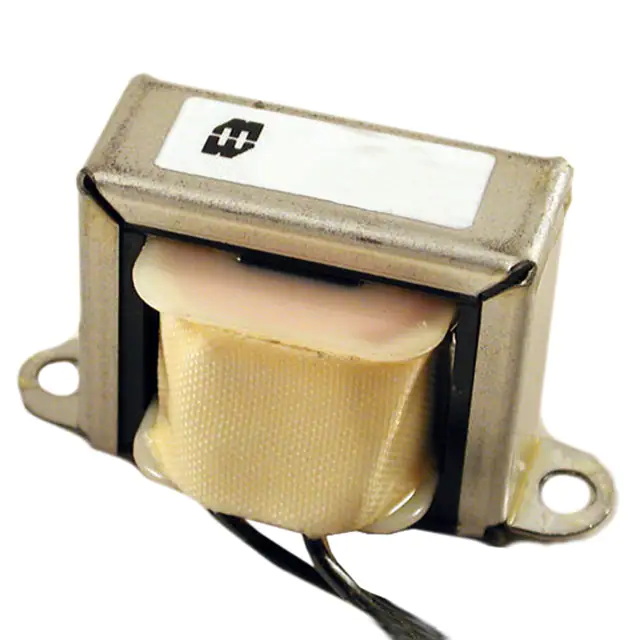

158SAFIXED IND 1H 240MA 41 OHM CHASS Hammond Manufacturing |
10 | - |
|
数据表 |
158 | Nonstandard | Bulk | Active | - | - | ±15% | 240 mA | - | - | Unshielded | 41Ohm | 1 H | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | - | - | - | 2.000" (50.80mm) |
|
159ZBFIXED IND 320MH 600MA 7.8 OHM Hammond Manufacturing |
9 | - |
|
数据表 |
159 | Nonstandard | Bulk | Active | - | - | ±15% | 600 mA | - | - | Unshielded | 7.8Ohm | 320 mH | - | - | Chassis Mount | - | 4.030" L x 2.250" W (102.36mm x 57.15mm) | - | - | - | 2.630" (66.80mm) |
|

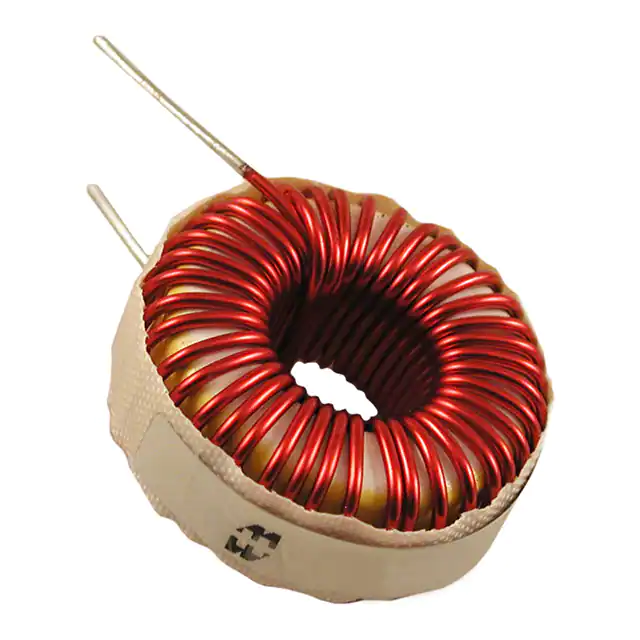

1540M22FIXED IND 900UH 3.75A 175MOHM TH Hammond Manufacturing |
15 | - |
|
数据表 |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | ±15% | 3.75 A | - | - | Unshielded | 175mOhm Max | 900 µH | - | - | Through Hole | - | 2.125" Dia x 0.937" W (53.97mm x 23.80mm) | - | - | - | - |
|
|
154MFIXED IND 2H 100MA 175 OHM CHASS Hammond Manufacturing |
18 | - |
|
数据表 |
154 | Nonstandard | Bulk | Active | - | - | ±15% | 100 mA | - | - | Unshielded | 175Ohm | 2 H | - | - | Chassis Mount | - | 2.060" L x 1.250" W (52.32mm x 31.75mm) | - | - | - | 1.190" (30.23mm) |
|
|
154EFIXED IND 20H 20MA 1.666K OHM Hammond Manufacturing |
9 | - |
|
数据表 |
154 | Nonstandard | Bulk | Active | - | - | ±15% | 20 mA | - | - | Unshielded | 1.666kOhm | 20 H | - | - | Chassis Mount | - | 2.060" L x 1.250" W (52.32mm x 31.75mm) | - | - | - | 1.190" (30.23mm) |
