场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXKP20N60C5MMOSFET N-CH 600V 7.6A TO220ABFP IXYS |
6,484 | - |
|
数据表 |
CoolMOS™ | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 7.6A (Tc) | 10V | 200mOhm @ 10A, 10V | Through Hole | 3.5V @ 1.1mA | 30 nC @ 10 V | 600 V | ±20V | 1520 pF @ 100 V | - | - | TO-220ABFP | - | - | -55°C ~ 150°C (TJ) |
|

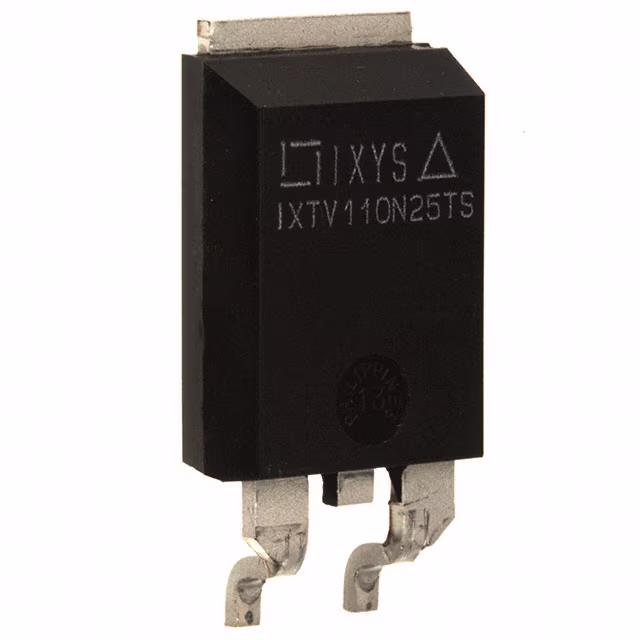

IXTV110N25TSMOSFET N-CH 250V 110A PLUS220SMD IXYS |
9,800 | - |
|
数据表 |
- | PLUS-220SMD | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 110A (Tc) | 10V | 24mOhm @ 55A, 10V | Surface Mount | 4.5V @ 1mA | 157 nC @ 10 V | 250 V | ±20V | 9400 pF @ 25 V | - | - | PLUS-220SMD | - | 694W (Tc) | -55°C ~ 150°C (TJ) |
|
IXTP32N20TMOSFET N-CH 200V 32A TO220AB IXYS |
3,549 | - |
|
数据表 |
Trench | TO-220-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 32A (Tc) | 10V | 72mOhm @ 16A, 10V | Through Hole | 4.5V @ 250µA | 38 nC @ 10 V | 200 V | ±20V | 1760 pF @ 25 V | - | - | TO-220-3 | - | 200W (Tc) | -55°C ~ 175°C (TJ) |
|
IXTA460P2MOSFET N-CH 500V 24A TO263 IXYS |
36 | - |
|
数据表 |
PolarP2™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24A (Tc) | 10V | 270mOhm @ 12A, 10V | Surface Mount | 4.5V @ 250µA | 48 nC @ 10 V | 500 V | ±30V | 2890 pF @ 25 V | - | - | TO-263AA | - | 480W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFH12N100QMOSFET N-CH 1000V 12A TO247AD IXYS |
54 | - |
|
数据表 |
HiPerFET™, Q Class | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 12A (Tc) | 10V | 1.05Ohm @ 6A, 10V | Through Hole | 5.5V @ 4mA | 90 nC @ 10 V | 1000 V | ±20V | 2900 pF @ 25 V | - | - | TO-247AD (IXFH) | - | 300W (Tc) | -55°C ~ 150°C (TJ) |
.jpg)
|
IXFX64N60Q3MOSFET N-CH 600V 64A PLUS247-3 IXYS |
17 | - |
|
数据表 |
HiPerFET™ | TO-247-3 Variant | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 64A (Tc) | 10V | 95mOhm @ 32A, 10V | Through Hole | 6.5V @ 4mA | 190 nC @ 10 V | 600 V | ±30V | 9930 pF @ 25 V | - | - | PLUS247™-3 | - | 1250W (Tc) | -55°C ~ 150°C (TJ) |
|
IXFZ520N075T2MOSFET N-CH 75V 465A DE475 IXYS |
60 | - |
|
数据表 |
HiPerFET™, TrenchT2™ | 6-SMD, Flat Leads | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 465A (Tc) | 10V | 1.3mOhm @ 100A, 10V | Surface Mount | 4V @ 8mA | 545 nC @ 10 V | 75 V | ±20V | 41000 pF @ 25 V | - | - | DE475 | - | 600W (Tc) | -55°C ~ 175°C (TJ) |
|
VMO650-01FMOSFET N-CH 100V 690A Y3-DCB IXYS |
2 | - |
|
数据表 |
HiPerFET™ | Y3-DCB | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 690A (Tc) | 10V | 1.8mOhm @ 500mA, 10V | Chassis Mount | 6V @ 130mA | 2300 nC @ 10 V | 100 V | ±20V | 59000 pF @ 25 V | - | - | Y3-DCB | - | 2500W (Tc) | -40°C ~ 150°C (TJ) |
|
MMIX1F520N075T2MOSFET N-CH 75V 500A 24SMPD IXYS |
8,760 | - |
|
数据表 |
GigaMOS™, TrenchT2™ | 24-PowerSMD, 21 Leads | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500A (Tc) | 10V | 1.6mOhm @ 100A, 10V | Surface Mount | 5V @ 8mA | 545 nC @ 10 V | 75 V | ±20V | 41000 pF @ 25 V | - | - | 24-SMPD | - | 830W (Tc) | -55°C ~ 175°C (TJ) |
|
IXTK17N120LMOSFET N-CH 1200V 17A TO264 IXYS |
4,512 | - |
|
数据表 |
Linear | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 17A (Tc) | 20V | 900mOhm @ 8.5A, 20V | Through Hole | 5V @ 250µA | 155 nC @ 15 V | 1200 V | ±30V | 8300 pF @ 25 V | - | - | TO-264 (IXTK) | - | 700W (Tc) | -55°C ~ 150°C (TJ) |
