厂商料号	库存情况	价格	数量	数据表	系列	封装/外壳	包装	产品状态	FET 类型	技术	电流 - 连续漏极 (Id) @ 25°C	驱动电压（最大导通电阻，最小导通电阻）	导通电阻 (Rds On)（最大值）@ Id, Vgs	安装类型	栅极阈值电压 (Vgs(th)）（最大值）@ Id	栅极电荷 (Qg)（最大值）@ Vgs	漏极到源极电压 (Vdss)	栅极电压 (Vgs)（最大值）	输入电容 (Ciss)（最大值）@ Vds	认证	FET 特性	供应商设备封装	等级	功耗（最大值）	工作温度
IXTQ250N075T MOSFET N-CH 75V 250A TO3P IXYS	4,116	-	询价单	数据表	TrenchMV™	TO-3P-3, SC-65-3	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	250A (Tc)	10V	4mOhm @ 50A, 10V	Through Hole	4V @ 250µA	200 nC @ 10 V	75 V	±20V	9900 pF @ 25 V	-	-	TO-3P	-	550W (Tc)	-55°C ~ 175°C (TJ)
IXTQ280N055T MOSFET N-CH 55V 280A TO3P IXYS	6,051	-	询价单	数据表	TrenchMV™	TO-3P-3, SC-65-3	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	280A (Tc)	10V	3.2mOhm @ 50A, 10V	Through Hole	4V @ 250µA	200 nC @ 10 V	55 V	±20V	9700 pF @ 25 V	-	-	TO-3P	-	550W (Tc)	-55°C ~ 175°C (TJ)
IXTT10P50 MOSFET P-CH 500V 10A TO268 IXYS	7,906	-	询价单	数据表	-	TO-268-3, D3PAK (2 Leads + Tab), TO-268AA	Box	Active	P-Channel	MOSFET (Metal Oxide)	10A (Tc)	10V	900mOhm @ 5A, 10V	Surface Mount	5V @ 250µA	160 nC @ 10 V	500 V	±20V	4700 pF @ 25 V	-	-	TO-268AA	-	300W (Tc)	-55°C ~ 150°C (TJ)
IXTT20N50D MOSFET N-CH 500V 20A TO268 IXYS	3,380	-	询价单	数据表	Depletion	TO-268-3, D3PAK (2 Leads + Tab), TO-268AA	Tube	Active	N-Channel, Depletion Mode	MOSFET (Metal Oxide)	20A (Tc)	10V	330mOhm @ 10A, 10V	Surface Mount	3.5V @ 250mA	125 nC @ 10 V	500 V	±30V	2500 pF @ 25 V	-	-	TO-268AA	-	400W (Tc)	-55°C ~ 150°C (TJ)
IXTU01N100D MOSFET N-CH 1000V 400MA TO251 IXYS	7,180	-	询价单	数据表	Depletion	TO-251-3 Short Leads, IPAK, TO-251AA	Tube	Active	N-Channel, Depletion Mode	MOSFET (Metal Oxide)	400mA (Tc)	0V	80Ohm @ 50mA, 0V	Through Hole	4.5V @ 25µA	5.8 nC @ 5 V	1000 V	±20V	100 pF @ 25 V	-	-	TO-251AA	-	1.1W (Ta), 25W (Tc)	-55°C ~ 150°C (TJ)
IXTU64N055T MOSFET N-CH 55V 64A TO251 IXYS	7,760	-	询价单	数据表	Trench	TO-251-3 Short Leads, IPAK, TO-251AA	Tube	Active	N-Channel	MOSFET (Metal Oxide)	64A (Tc)	-	-	Through Hole	4V @ 25µA	-	55 V	-	-	-	-	TO-251AA	-	-	-

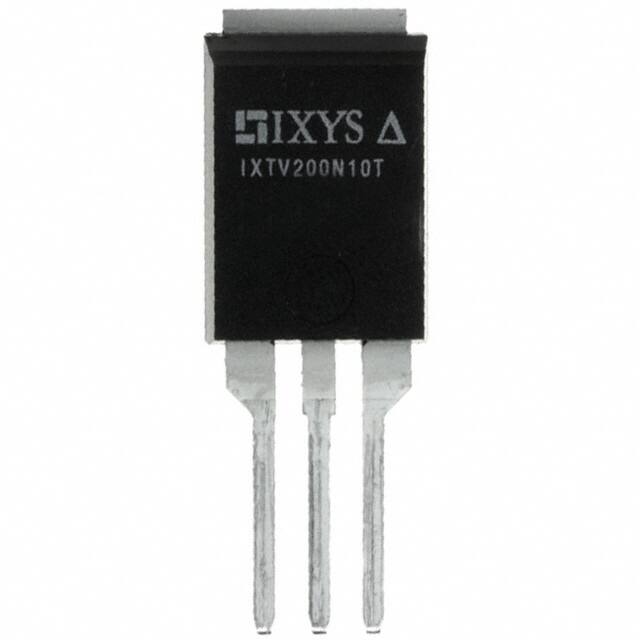

IXTV200N10T MOSFET N-CH 100V 200A PLUS220 IXYS	7,263	-	询价单	数据表	TrenchMV™	TO-220-3, Short Tab	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	200A (Tc)	10V	5.5mOhm @ 50A, 10V	Through Hole	4.5V @ 250µA	152 nC @ 10 V	100 V	±30V	9400 pF @ 25 V	-	-	PLUS220	-	550W (Tc)	-55°C ~ 175°C (TJ)

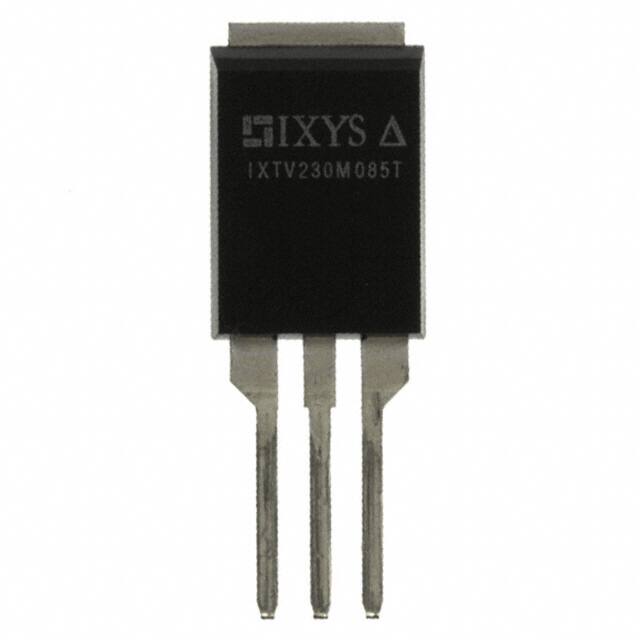

IXTV230N085T MOSFET N-CH 85V 230A PLUS220 IXYS	3,034	-	询价单	数据表	TrenchMV™	TO-220-3, Short Tab	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	230A (Tc)	10V	4.4mOhm @ 50A, 10V	Through Hole	4V @ 250µA	187 nC @ 10 V	85 V	±20V	9900 pF @ 25 V	-	-	PLUS220	-	550W (Tc)	-55°C ~ 175°C (TJ)
IXTY2N80P MOSFET N-CH 800V 2A TO252 IXYS	7,380	-	询价单	数据表	PolarHV™	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	2A (Tc)	10V	6Ohm @ 1A, 10V	Surface Mount	5.5V @ 50µA	10.6 nC @ 10 V	800 V	±30V	440 pF @ 25 V	-	-	TO-252AA	-	70W (Tc)	-55°C ~ 150°C (TJ)
IXTY50N085T MOSFET N-CH 85V 50A TO252 IXYS	9,798	-	询价单	数据表	TrenchMV™	TO-252-3, DPAK (2 Leads + Tab), SC-63	Tube	Obsolete	N-Channel	MOSFET (Metal Oxide)	50A (Tc)	10V	23mOhm @ 25A, 10V	Surface Mount	4V @ 25µA	34 nC @ 10 V	85 V	±20V	1460 pF @ 25 V	-	-	TO-252AA	-	130W (Tc)	-55°C ~ 175°C (TJ)
