场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STB100NF03L-03T4MOSFET N-CH 30V 100A D2PAK STMicroelectronics |
2,426 | - |
|
数据表 |
STripFET™ III | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100A (Tc) | 4.5V, 10V | 3.2mOhm @ 50A, 10V | Surface Mount | 2.5V @ 250µA | 88 nC @ 5 V | 30 V | ±16V | 6200 pF @ 25 V | - | - | D2PAK | - | 300W (Tc) | -55°C ~ 175°C (TJ) |
|
STFI20NK50ZMOSFET N-CH 500V 17A I2PAKFP STMicroelectronics |
760 | - |
|
数据表 |
SuperMESH™ | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 17A (Tc) | 10V | 270mOhm @ 8.5A, 10V | Through Hole | 4.5V @ 100µA | 119 nC @ 10 V | 500 V | ±30V | 2600 pF @ 25 V | - | - | TO-281 (I2PAKFP) | - | 40W (Tc) | 150°C (TJ) |
|
|
STFI20N65M5MOSFET N CH 650V 18A I2PAKFP STMicroelectronics |
1,453 | - |
|
数据表 |
MDmesh™ V | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 18A (Tc) | 10V | 190mOhm @ 9A, 10V | Through Hole | 5V @ 250µA | 45 nC @ 10 V | 650 V | ±25V | 1345 pF @ 100 V | - | - | TO-281 (I2PAKFP) | - | 130W (Tc) | 150°C (TJ) |
|
|
STFI24NM60NMOSFET N-CH 600V 17A I2PAKFP STMicroelectronics |
1,327 | - |
|
数据表 |
MDmesh™ II | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 17A (Tc) | 10V | 190mOhm @ 8A, 10V | Through Hole | 4V @ 250µA | 46 nC @ 10 V | 600 V | ±30V | 1400 pF @ 50 V | - | - | TO-281 (I2PAKFP) | - | 30W (Tc) | -55°C ~ 150°C (TJ) |
|
|
STFI31N65M5MOSFET N CH 650V 22A I2PAKFP STMicroelectronics |
1,479 | - |
|
数据表 |
MDmesh™ V | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 22A (Tc) | 10V | 148mOhm @ 11A, 10V | Through Hole | 5V @ 250µA | 45 nC @ 10 V | 650 V | ±25V | 1865 pF @ 100 V | - | - | TO-281 (I2PAKFP) | - | 30W (Tc) | 150°C (TJ) |
|
STF120NF10MOSFET N-CH 100V 41A TO220FP STMicroelectronics |
711 | - |
|
数据表 |
STripFET™ II | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 41A (Tc) | 10V | 10.5mOhm @ 60A, 10V | Through Hole | 4V @ 250µA | 233 nC @ 10 V | 100 V | ±20V | 5200 pF @ 25 V | - | - | TO-220FP | - | 45W (Tc) | -55°C ~ 175°C (TJ) |
|
|
STB13NK60ZT4MOSFET N-CH 600V 13A D2PAK STMicroelectronics |
653 | - |
|
数据表 |
SuperMESH™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 13A (Tc) | 10V | 550mOhm @ 4.5A, 10V | Surface Mount | 4.5V @ 100µA | 92 nC @ 10 V | 600 V | ±30V | 2030 pF @ 25 V | - | - | D2PAK | - | 150W (Tc) | -55°C ~ 150°C (TJ) |
|
STP52N25M5MOSFET N-CH 250V 28A TO220 STMicroelectronics |
551 | - |
|
数据表 |
MDmesh™ V | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 28A (Tc) | 10V | 65mOhm @ 14A, 10V | Through Hole | 5V @ 100µA | 47 nC @ 10 V | 250 V | ±25V | 1770 pF @ 50 V | - | - | TO-220 | - | 110W (Tc) | -55°C ~ 150°C (TJ) |
|
STI18N65M5MOSFET N CH 650V 15A I2PAK STMicroelectronics |
348 | - |
|
数据表 |
MDmesh™ V | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 15A (Tc) | 10V | 220mOhm @ 7.5A, 10V | Through Hole | 5V @ 250µA | 31 nC @ 10 V | 650 V | ±25V | 1240 pF @ 100 V | - | - | I2PAK | - | 110W (Tc) | 150°C (TJ) |
|

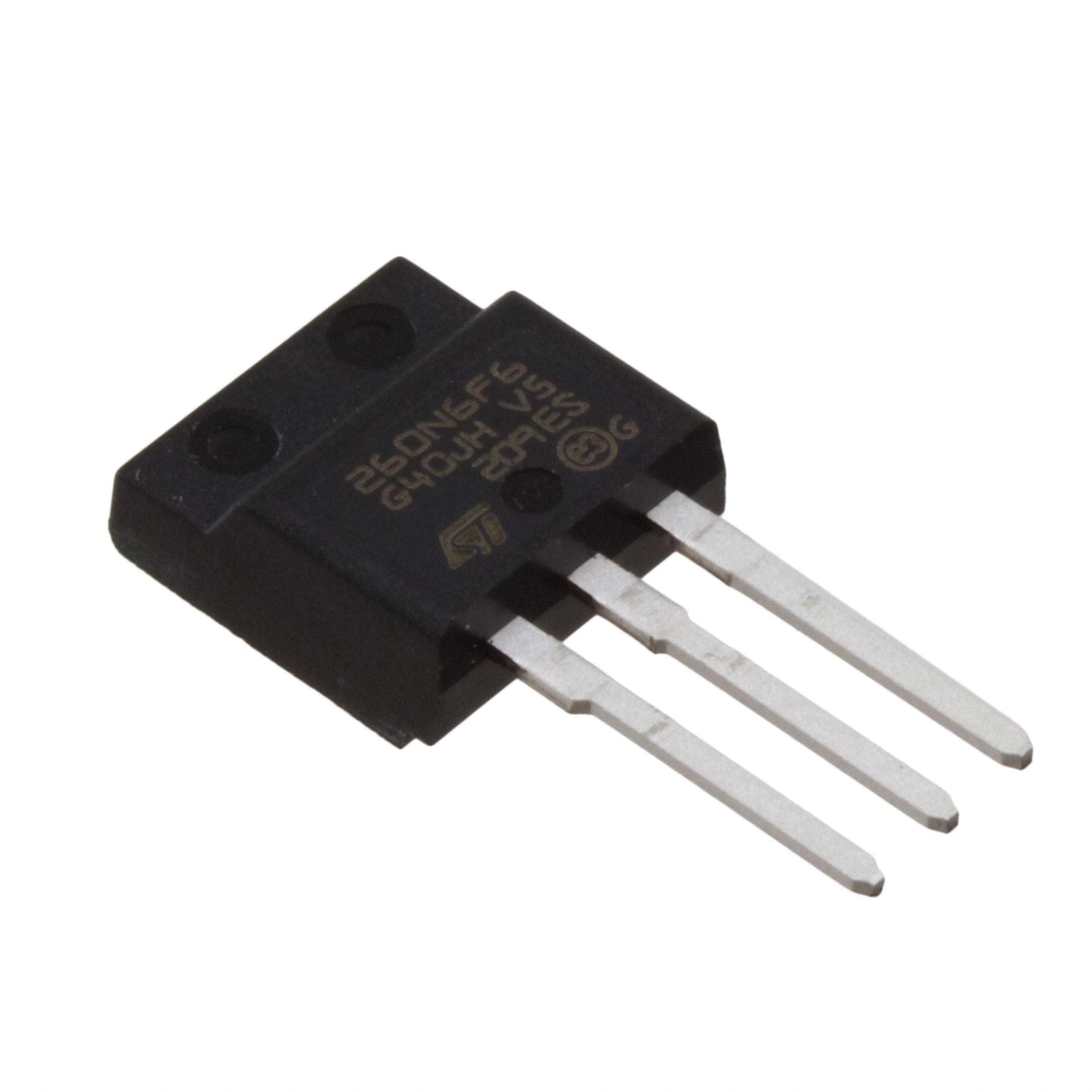

STFI260N6F6MOSFET N-CH 60V 80A I2PAKFP STMicroelectronics |
297 | - |
|
数据表 |
DeepGATE™, STripFET™ VI | TO-262-3 Full Pack, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80A (Tc) | 10V | 3mOhm @ 60A, 10V | Through Hole | 4V @ 250µA | 183 nC @ 10 V | 60 V | ±20V | 11400 pF @ 25 V | - | - | I2PAKFP (TO-281) | - | 41.7W (Tc) | -55°C ~ 175°C (TJ) |
