场效应晶体管（FETs）、MOSFETs
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 封装/外壳 | 包装 | 产品状态 | FET 类型 | 技术 | 电流 - 连续漏极 (Id) @ 25°C | 驱动电压（最大导通电阻，最小导通电阻） | 导通电阻 (Rds On)（最大值）@ Id, Vgs | 安装类型 | 栅极阈值电压 (Vgs(th)）（最大值）@ Id | 栅极电荷 (Qg)（最大值）@ Vgs | 漏极到源极电压 (Vdss) | 栅极电压 (Vgs)（最大值） | 输入电容 (Ciss)（最大值）@ Vds | 认证 | FET 特性 | 供应商设备封装 | 等级 | 功耗（最大值） | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

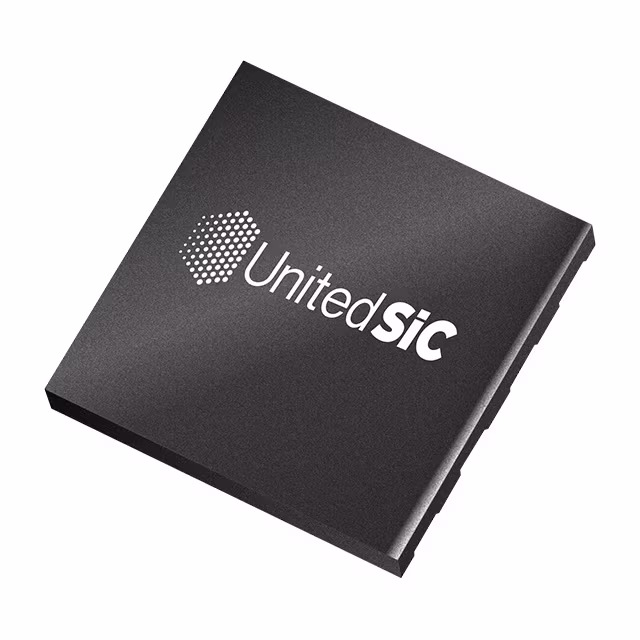

UF3SC065040D8SSICFET N-CH 650V 18A 4DFN |
6,925 | - |
|
数据表 |
- | 4-PowerTSFN | Tape & Reel (TR) | Obsolete | N-Channel | SiCFET (Cascode SiCJFET) | 18A (Tc) | 12V | 58mOhm @ 20A, 12V | Surface Mount | 6V @ 10mA | 43 nC @ 12 V | 650 V | ±25V | 1500 pF @ 100 V | - | - | 4-DFN (8x8) | - | 125W (Tc) | -55°C ~ 150°C (TJ) |
|
AONS66408N |
8,231 | - |
|
数据表 |
AlphaSGT™ | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 33A (Ta), 85A (Tc) | 4.5V, 10V | 3.1mOhm @ 20A, 10V | Surface Mount | 2.3V @ 250µA | 51 nC @ 10 V | 40 V | ±20V | 2808 pF @ 20 V | - | - | 8-DFN (5x6) | - | 6.2W (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) |
|
IPD040N03LGBTMA1MOSFET N-CH 30V 90A TO252-31 |
8,992 | - |
|
数据表 |
OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 90A (Tc) | 4.5V, 10V | 4mOhm @ 30A, 10V | Surface Mount | 2.2V @ 250µA | 38 nC @ 10 V | 30 V | ±20V | 3900 pF @ 15 V | - | - | PG-TO252-3-11 | - | 79W (Tc) | -55°C ~ 175°C (TJ) |
|
|
UF3SC065030D8SSICFET N-CH 650V 18A 4DFN |
7,817 | - |
|
数据表 |
- | 4-PowerTSFN | Tape & Reel (TR) | Obsolete | N-Channel | SiCFET (Cascode SiCJFET) | 18A (Tc) | 12V | 42mOhm @ 20A, 12V | Surface Mount | 6V @ 10mA | 43 nC @ 12 V | 650 V | ±25V | 1500 pF @ 100 V | - | - | 4-DFN (8x8) | - | 179W (Tc) | -55°C ~ 150°C (TJ) |
|
BUK7908-40AIE127N-CHANNEL POWER MOSFET |
8,312 | - |
|
数据表 |
TrenchMOS™ | TO-220-5 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 75A (Tc) | 10V | 8mOhm @ 50A, 10V | Through Hole | 4V @ 1mA | 84 nC @ 10 V | 40 V | ±20V | 3140 pF @ 25 V | AEC-Q101 | Current Sensing | TO-220-5 | Automotive | 221W (Tc) | -55°C ~ 175°C (TJ) |
|
BUK661R6-30C118N-CHANNEL POWER MOSFET |
8,109 | - |
|
数据表 |
TrenchMOS™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 120A (Tc) | 10V | 1.6mOhm @ 25A, 10V | Surface Mount | 2.8V @ 1mA | 229 nC @ 10 V | 30 V | ±16V | 14964 pF @ 25 V | AEC-Q101 | - | D2PAK | Automotive | 306W (Tc) | -55°C ~ 175°C (TJ) |
|
BUK98180-100A/CU115N-CHANNEL POWER MOSFET |
5,611 | - |
|
数据表 |
- | TO-261-4, TO-261AA | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 4.6A (Tc) | 4.5V, 10V | 173mOhm @ 5A, 10V | Surface Mount | 2V @ 1mA | - | 100 V | ±10V | 619 pF @ 25 V | AEC-Q101 | - | SOT-223 | Automotive | 8W (Tc) | -55°C ~ 150°C (TJ) |
|
IPW80R290C3AN-CHANNEL AUTOMOTIVE MOSFET |
9,726 | - |
|
数据表 |
CoolMOS™ | TO-247-3 | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 17A (Tc) | 10V | 290mOhm @ 11A, 10V | Through Hole | 3.9V @ 1mA | 117 nC @ 10 V | 800 V | ±20V | 2300 pF @ 100 V | AEC-Q101 | - | PG-TO247-3 | Automotive | 227W (Tc) | -40°C ~ 150°C (TJ) |
|
|
IRF151N-CHANNEL POWER MOSFET |
5,800 | - |
|
数据表 |
- | TO-204AE | Bulk | Active | N-Channel | MOSFET (Metal Oxide) | 40A (Tc) | 10V | 55mOhm @ 20A, 10V | Through Hole | 4V @ 250µA | 120 nC @ 10 V | 60 V | ±20V | 2000 pF @ 25 V | - | - | TO-204AE | - | 150W (Tc) | -55°C ~ 150°C (TJ) |
|
DMN2005UFGQ-7MOSFET N-CH 20V 18A PWRDI3333 |
2,265 | - |
|
数据表 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 18A (Ta), 50A (Tc) | 2.5V, 4.5V | 4.6mOhm @ 13.5A, 4.5V | Surface Mount | 1.2V @ 250µA | 164 nC @ 10 V | 20 V | ±12V | 6495 pF @ 10 V | AEC-Q101 | - | POWERDI3333-8 | Automotive | 1.05W (Ta) | -55°C ~ 150°C (TJ) |
|
FQU5N50TUMOSFET N-CH 500V 3.5A IPAK |
6,350 | - |
|
数据表 |
QFET® | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 3.5A (Tc) | 10V | 1.8Ohm @ 1.75A, 10V | Through Hole | 5V @ 250µA | 17 nC @ 10 V | 500 V | ±30V | 610 pF @ 25 V | - | - | IPAK | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) |
|
|
DMTH4007LPSWQ-13MOSFET BVDSS: 31V~40V POWERDI506 |
6,956 | - |
|
数据表 |
- | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 15A (Ta), 85A (Tc) | 4.5V, 10V | 6.5mOhm @ 20A, 10V | Surface Mount, Wettable Flank | 3V @ 250µA | 29.1 nC @ 10 V | 40 V | ±20V | 1895 pF @ 30 V | AEC-Q101 | - | PowerDI5060-8 (Type UX) | Automotive | 2.7W (Ta), 83.3W (Tc) | -55°C ~ 175°C (TJ) |
|
NCV8440STT3GMOSFET N-CH 59V 2.6A SOT223 |
5,732 | - |
|
数据表 |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 2.6A (Ta) | 3.5V, 10V | 110mOhm @ 2.6A, 10V | Surface Mount | 1.9V @ 100µA | 4.5 nC @ 4.5 V | 59 V | ±15V | 155 pF @ 35 V | - | - | SOT-223 (TO-261) | - | 1.69W (Ta) | -55°C ~ 150°C (TJ) |
|
FQD5N50TMMOSFET N-CH 500V 3.5A DPAK |
5,792 | - |
|
数据表 |
QFET® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 3.5A (Tc) | 10V | 1.8Ohm @ 1.75A, 10V | Surface Mount | 5V @ 250µA | 17 nC @ 10 V | 500 V | ±30V | 610 pF @ 25 V | - | - | TO-252AA | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) |
|
DMT67M8LCG-7MOSFET N-CH 60V 16A/64.6A 8DFN |
9,766 | - |
|
数据表 |
- | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 16A (Ta), 64.6A (Tc) | 4.5V, 10V | 5.7mOhm @ 20A, 10V | Surface Mount | 2.5V @ 250µA | 37.5 nC @ 10 V | 60 V | ±20V | 2130 pF @ 30 V | - | - | V-DFN3333-8 (Type B) | - | 900mW (Ta) | -55°C ~ 150°C (TJ) |
|
|
CMS35P06D-HFMOSFET P-CH 60V 35A DPAK |
5,453 | - |
|
数据表 |
- | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 35A (Tc) | 4.5V, 10V | 28mOhm @ 20A, 10V | Surface Mount | 2.5V @ 250µA | 43.8 nC @ 10 V | 60 V | ±20V | 2595 pF @ 25 V | - | - | TO-252 (DPAK) | - | 2W (Ta), 72.6W (Tc) | -55°C ~ 150°C (TJ) |
|
MIC94052BC6-TRMOSFET P-CH 6V 2A SC70-6 |
3,966 | - |
|
数据表 |
- | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | P-Channel | MOSFET (Metal Oxide) | 2A (Ta) | 1.8V, 4.5V | 84mOhm @ 100mA, 4.5V | Surface Mount | 1.2V @ 250µA | - | 6 V | 6V | - | - | - | SC-70-6 | - | 270mW (Ta) | -40°C ~ 150°C (TJ) |
|
SI3499DV-T1-E3MOSFET P-CH 8V 5.3A 6TSOP |
9,473 | - |
|
数据表 |
TrenchFET® | SOT-23-6 Thin, TSOT-23-6 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 5.3A (Ta) | 1.5V, 4.5V | 23mOhm @ 7A, 4.5V | Surface Mount | 750mV @ 250µA | 42 nC @ 4.5 V | 8 V | ±5V | - | - | - | 6-TSOP | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) |
|

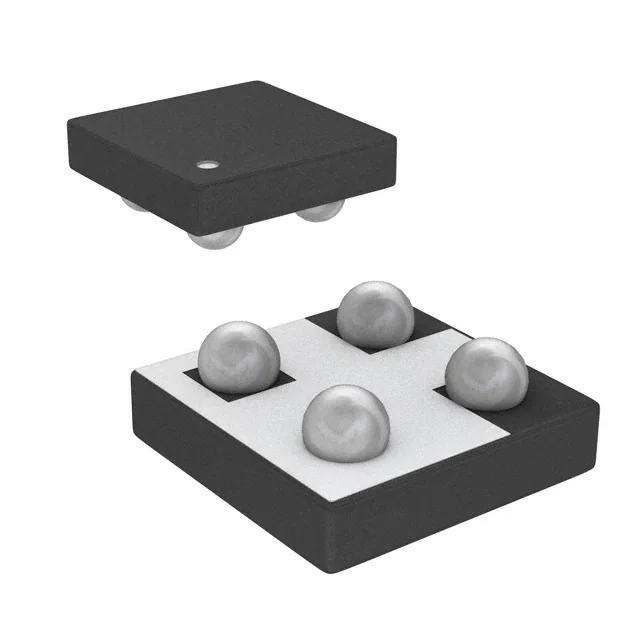

SI8435DB-T1-E1MOSFET P-CH 20V 10A 4MICROFOOT |
9,469 | - |
|
数据表 |
TrenchFET® | 4-XFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 10A (Tc) | 1.5V, 4.5V | 41mOhm @ 1A, 4.5V | Surface Mount | 1V @ 250µA | 35 nC @ 5 V | 20 V | ±5V | 1600 pF @ 10 V | - | - | 4-Microfoot | - | 2.78W (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) |
|
SI5475DC-T1-E3MOSFET P-CH 12V 5.5A 1206-8 |
8,924 | - |
|
数据表 |
TrenchFET® | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 5.5A (Ta) | 1.8V, 4.5V | 31mOhm @ 5.5A, 4.5V | Surface Mount | 450mV @ 1mA (Min) | 29 nC @ 4.5 V | 12 V | ±8V | - | - | - | 1206-8 ChipFET™ | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) |
