直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB0824HHEFAN AXIAL 80X38MM 24VDC WIRE |
0 | - |
|
数据表 |
FFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 45.2 CFM (1.27m³/min) | 0.281 in H2O (70.0 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 39.0dB(A) | 3.6 W | CE, CSA, UL, VDE | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
GF40282B2-1000U-SDP24VDC FAN 40X28MM TACH/PWM GR487 |
0 | - |
|
数据表 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 17.7 CFM (0.496m³/min) | 1.110 in H2O (276.5 Pa) | Ball | - | Tubeaxial | PWM Control | 28.00mm | 50.0dB(A) | 4.32 W | CCC, CE, cURus, TUV, UKCA | 13100 RPM | - | 3 Wire Leads | - |
|
|
GF40282B2-1000U-SEP24VDC FAN 40X28MM TACH/PWM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 17.7 CFM (0.496m³/min) | 1.110 in H2O (276.5 Pa) | Ball | - | Tubeaxial | PWM Control | 28.00mm | 50.0dB(A) | 4.32 W | CCC, CE, cURus, TUV, UKCA | 13100 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF40282BX-1000U-SEP24VDC FAN 40X28MM TACH/PWM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 23.9 CFM (0.669m³/min) | 2.010 in H2O (500.7 Pa) | Ball | - | Tubeaxial | PWM Control | 28.00mm | 58.5dB(A) | 9.6 W | CCC, CE, cURus, TUV, UKCA | 17600 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
BFB0612HB-NFAN BLOWER 60X15.4MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 4.7 CFM (0.132m³/min) | 0.651 in H2O (162.2 Pa) | Ball | 0.101 lb (45.81 g) | Blower | Locked Rotor Protection | 15.40mm | 37.0dB(A) | 2.16 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 194°F (-10 ~ 90°C) | 2 Wire Leads | - |
|
FFB0412SHN-R00FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 24.0 CFM (0.672m³/min) | 1.075 in H2O (267.8 Pa) | Ball | 0.071 lb (32.21 g) | Tubeaxial | Locked Rotor Sensor | 28.00mm | 54.5dB(A) | 6 W | CE, CSA, UL, VDE | 13000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|

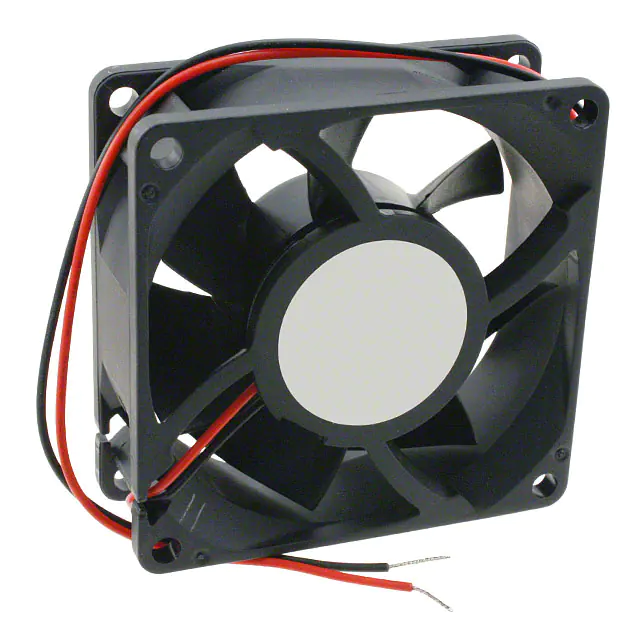

AFB0724H-AFAN AXIAL 70X25.4MM 24VDC WIRE |
5 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 70mm L x 70mm H | 36.3 CFM (1.02m³/min) | 0.217 in H2O (54.1 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 37.5dB(A) | 3.12 W | CE, CSA, UL, VDE | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FFB0824EHE-R00FAN AXIAL 80X38MM 24VDC WIRE |
0 | - |
|
数据表 |
FFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 80.2 CFM (2.25m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 0.375 lb (170.1 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 52.5dB(A) | 12 W | CE, CSA, UL, VDE | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0802524H2B-BT0FAN 80X25MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 74.3 CFM (2.08m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 46.0dB(A) | 11.52 W | CE, cURus | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
FFB0412VN-00AXIAL 40X28 12VDC PWM |
0 | - |
|
数据表 |
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 23.7 CFM (0.670m³/min) | 2.330 in H2O (580.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 56.5dB(A) | 6.6 W | cURus, TUV | 18000 RPM | -40 ~ 176°F (-40 ~ 80°C) | 4 Wire Leads | - |
|
|
109P0848C601FAN AXIAL 80X20MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 37.8 CFM (1.06m³/min) | 0.185 in H2O (46.1 Pa) | Ball | 0.222 lb (100.7 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 39.0dB(A) | 3.84 W | CSA, TUV, UL | 3700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
AFB0624VH-AFAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 30.5 CFM (0.854m³/min) | 0.345 in H2O (85.9 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 42.5dB(A) | 3.36 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
FFB0412GHN-CF00FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 23.4 CFM (0.655m³/min) | 1.638 in H2O (408.0 Pa) | Ball | 0.104 lb (47.17 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | 56.0dB(A) | 6 W | CE, cURus, VDE | 16500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
FFB0424EHN-CP0AXIAL SQUARE 40X28MM 24VDC PWM |
0 | - |
|
数据表 |
FFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 17.7 CFM (0.496m³/min) | 1.040 in H2O (258.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | 50.0dB(A) | 3.6 W | cURus, TUV | 13100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
AFB0812EHE-F00FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 85.5 CFM (2.39m³/min) | 0.749 in H2O (186.6 Pa) | Ball | 0.344 lb (156.04 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 50.5dB(A) | 12 W | CE, CSA, UL, VDE | 5900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
FFB0912VHE-R00FAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
FFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 85.5 CFM (2.39m³/min) | 0.406 in H2O (101.1 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 47.5dB(A) | 6 W | CE, CSA, UL, VDE | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
GF60151B9-1E01U-AE9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Round - 84.9mm Dia | 9.8 CFM (0.274m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 15.40mm | 17.1dB(A) | 480 mW | CE, CUR, TUV, UL | 2200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF80251B5-000U-AD9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 33.0dB(A) | 1.74 W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF92251B7-000U-AE9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 39.5 CFM (1.11m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 28.0dB(A) | 1.1 W | CE, CUR, TUV, UL | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF60252B1-1000U-SEP24VDC FAN 60X25MM TACH/PWM IP68 |
0 | - |
|
数据表 |
GF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 48.1 CFM (1.35m³/min) | 1.210 in H2O (301.4 Pa) | Ball | - | Tubeaxial | PWM Control | 25.40mm | 53.2dB(A) | 9.72 W | CCC, CE, cURus, TUV, UKCA | 11500 RPM | - | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
