直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFB0948UHE-F00FAN AXIAL 92X38MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 153.5 CFM (4.30m³/min) | 1.449 in H2O (360.9 Pa) | Ball | 0.553 lb (250.84 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 28.8 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
PFB1212EHEFAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
PFB | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 181.3 CFM (5.08m³/min) | 0.751 in H2O (187.0 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 59.0dB(A) | 19.2 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
AFB1224VHE-TC5FFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 148.3 CFM (4.15m³/min) | 0.601 in H2O (149.7 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 13.7 W | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
BFB0724H-T500FAN BLOWER 75.7X30MM 24VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 11.3 CFM (0.316m³/min) | 0.480 in H2O (119.6 Pa) | Ball | 0.211 lb (95.71 g) | Blower | Locked Rotor Protection | 30.00mm | 38.0dB(A) | 2.88 W | CE, CSA, UL, VDE | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
BFB1012L-TA5RFAN BLOWER 97.8X33MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 97.8mm L x 95.5mm H | 23.2 CFM (0.650m³/min) | 0.585 in H2O (145.7 Pa) | Ball | 0.397 lb (180.08 g) | Blower | Locked Rotor Sensor | 33.00mm | 49.5dB(A) | 4.4 W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
FFB0948SHE-T500FAN AXIAL 92X38MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 100.3 CFM (2.81m³/min) | 0.572 in H2O (142.5 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 52.5dB(A) | 9.6 W | CE, CSA, UL, VDE | 4400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
FFB0948SHE-TP28FAN AXIAL 92X38MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
FFB | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 100.3 CFM (2.81m³/min) | 0.572 in H2O (142.5 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 52.5dB(A) | 9.6 W | CE, CSA, UL, VDE | 4400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|

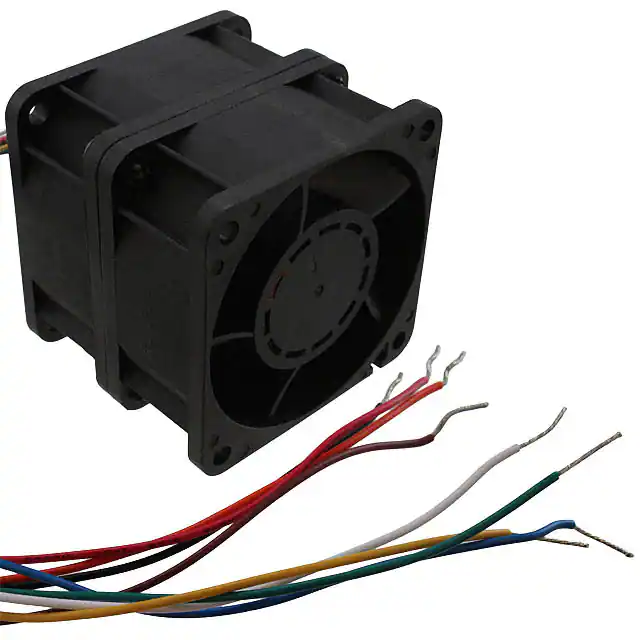

GFC0612DS-AQ14FAN AXIAL DUAL 60X56MM 12VDC Delta Electronics |
0 | - |
|
数据表 |
GFC | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 65.0 CFM (1.82m³/min) | 2.007 in H2O (499.9 Pa) | Ball | 0.364 lb (165.11 g) | Tubeaxial (Dual) | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 56.00mm | 66.0dB(A) | 19.2 W | CE, CSA, UL, VDE | 10400 Front, 9500 Rear | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads per Fan | - |
|
AFB0612EH-ABRR0FAN AXIAL 60X25.4MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 46.5dB(A) | 4.56 W | CE, CSA, UL, VDE | 6800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0612EHE-AF00FAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 61.7 CFM (1.73m³/min) | 1.496 in H2O (372.6 Pa) | Ball | 0.258 lb (117.03 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 60.0dB(A) | 13.44 W | CE, CSA, UL, VDE | 11000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
