直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FFB0948VHEFAN DC AXIAL 48V 92X38 3800RPM Delta Electronics |
0 | - |
|
数据表 |
* | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AFB0824VH-R00FAN AXIAL 80X25.4MM 24VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 42.0 CFM (1.18m³/min) | 0.217 in H2O (54.1 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Sensor | 25.40mm | 38.0dB(A) | 3.36 W | CE, CSA, UL, VDE | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
THA0948BEFAN AXIAL 92X38MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
THA | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 189.7 CFM (5.31m³/min) | 3.020 in H2O (752.3 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 71.0dB(A) | 67.2 W | CE, cURus, TUV | 9500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
TFA0948AEFAN AXIAL 92X38MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
TFA | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 67.1 CFM (1.88m³/min) | 0.720 in H2O (179.3 Pa) | Ball | 0.463 lb (210.01 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 49.8dB(A) | 5.76 W | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

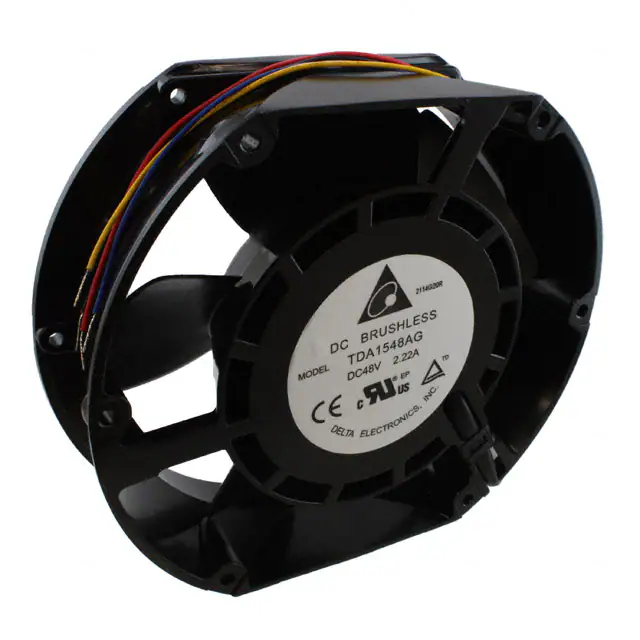

TDA1548AGFAN AXIAL 172X50.8MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
TDA | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 402.1 CFM (11.26m³/min) | 2.854 in H2O (710.9 Pa) | Ball | 1.7 lbs (771.1 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 73.3dB(A) | 88.8 W | CE, CSA, UL, VDE | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
TDA1748AGFAN AXIAL 172X50.8MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
TDA | Box | Obsolete | 48VDC | Round - 172mm Dia | 413.0 CFM (11.56m³/min) | 2.820 in H2O (702.5 Pa) | Ball | 1.8 lb (800.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 71.0dB(A) | 88.8 W | CE, CSA, UL, VDE | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
THB2048CTFAN AXIAL 208X70MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
THB | Box | Obsolete | 48VDC | Round - 208mm Dia | 827.4 CFM (23.17m³/min) | 2.690 in H2O (670.1 Pa) | Ball | 3.5 lbs (1.6 kg) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 70.00mm | 73.6dB(A) | 230.4 W | CE, cURus, TUV | 5800 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
PFC1248DE-F00FAN AXIAL 120X38MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
PFC | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 252.9 CFM (7.08m³/min) | 1.412 in H2O (351.7 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 66.5dB(A) | 48 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
TDA1348AE-EPFAN AXIAL 127X38MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
TDA | Box | Obsolete | 48VDC | Square - 127mm L x 127mm H | 160.0 CFM (4.48m³/min) | 1.456 in H2O (362.7 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 60.4dB(A) | 19.2 W | CE, CSA, UL, VDE | 5300 RPM | -27.4 ~ 158°F (-33 ~ 70°C) | 4 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
AFB0405MB-R00FAN AXIAL 40X15MM BALL 5VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 8.1 CFM (0.227m³/min) | 0.202 in H2O (50.3 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Sensor | 15.00mm | 24.5dB(A) | 850 mW | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
