直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFC0712D-9Z08FAN AXIAL 70X25.4MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFC | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 52.0 CFM (1.46m³/min) | 0.433 in H2O (107.9 Pa) | 1 Ball/1 Sleeve | 0.199 lb (90.26 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 47.5dB(A) | 5.28 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
AFC0712DXEBFAN AXIAL 70X25.4MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFC | Bulk | Obsolete | 12VDC | Square - 70mm L x 70mm H | 48.0 CFM (1.34m³/min) | 0.390 in H2O (97.1 Pa) | 1 Ball/1 Sleeve | 0.148 lb (67.13 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 45.5dB(A) | 4.2 W | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|

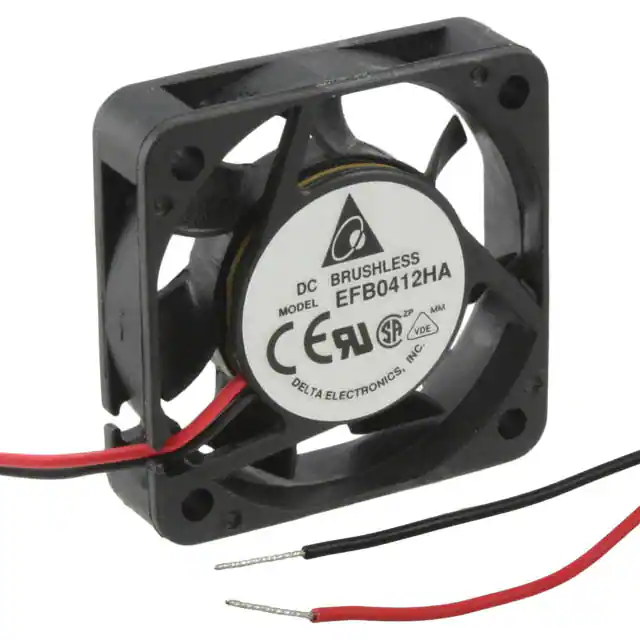

EFB0412HAFAN AXIAL 40X10MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
EFB | Tray | Obsolete | 12VDC | Square - 40mm L x 40mm H | 6.9 CFM (0.193m³/min) | 0.129 in H2O (32.1 Pa) | Ball | 0.032 lb (14.51 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 28.5dB(A) | 960 mW | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

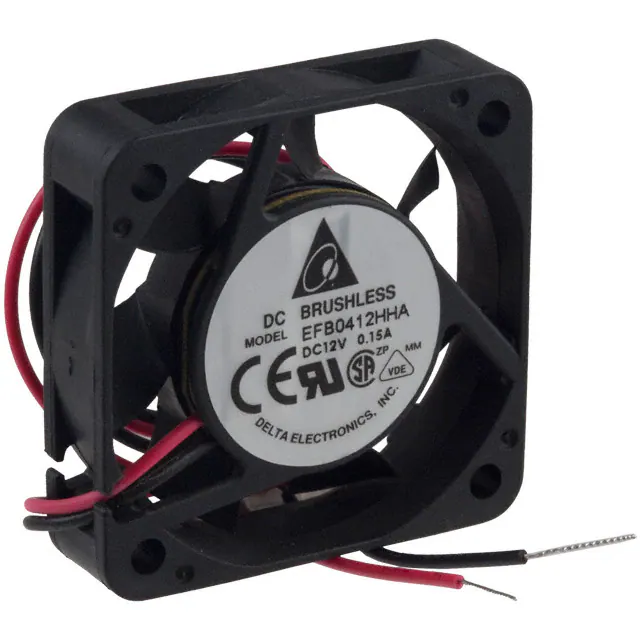

EFB0412HHAFAN AXIAL 40X10MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
EFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.1 CFM (0.227m³/min) | 0.174 in H2O (43.3 Pa) | Ball | 0.032 lb (14.51 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 33.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

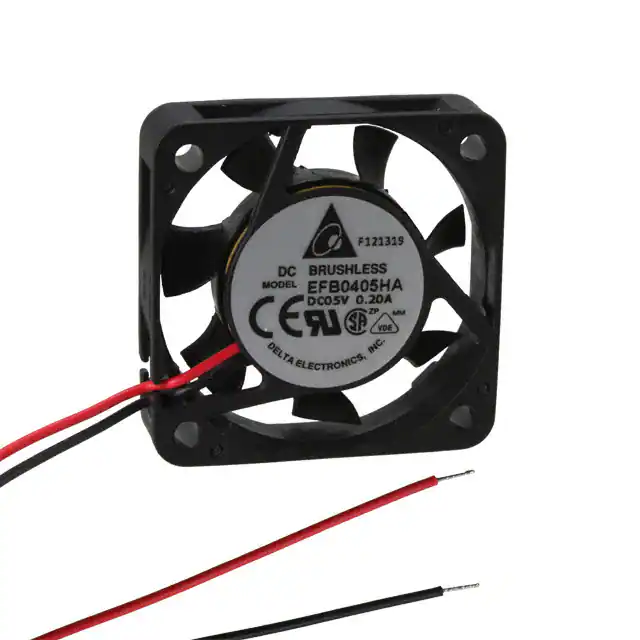

EFB0405HAFAN AXIAL 40X10MM BALL 5VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 6.9 CFM (0.193m³/min) | 0.129 in H2O (32.1 Pa) | Ball | 0.032 lb (14.51 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 28.5dB(A) | 650 mW | CE, CSA, UL, VDE | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EFB0405LAFAN AXIAL 40X10MM BALL 5VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
EFB | Bulk | Obsolete | 5VDC | Square - 40mm L x 40mm H | 3.7 CFM (0.104m³/min) | 0.057 in H2O (14.2 Pa) | Ball | 0.032 lb (14.51 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 20.5dB(A) | 350 mW | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EFB0405MAFAN AXIAL 40X10MM BALL 5VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
EFB | Box | Obsolete | 5VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | 0.088 in H2O (21.9 Pa) | Ball | 0.032 lb (14.51 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 24.5dB(A) | 500 mW | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EFB0412LAFAN AXIAL 40X10MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
EFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 3.7 CFM (0.104m³/min) | 0.057 in H2O (14.2 Pa) | Ball | 0.032 lb (14.51 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 20.5dB(A) | 600 mW | CE, CSA, UL, VDE | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
EFB0412VHAFAN AXIAL 40X10MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
EFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 9.5 CFM (0.266m³/min) | 0.228 in H2O (56.8 Pa) | Ball | 0.032 lb (14.51 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 37.5dB(A) | 1.8 W | CE, CSA, UL, VDE | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

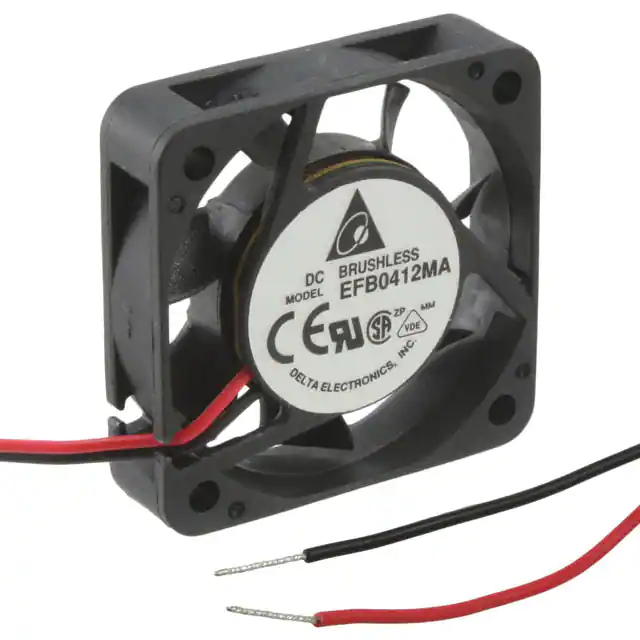

EFB0412MAFAN AXIAL 40X10MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
EFB | Tray | Obsolete | 12VDC | Square - 40mm L x 40mm H | 5.9 CFM (0.165m³/min) | 0.088 in H2O (21.9 Pa) | Ball | 0.032 lb (14.51 g) | Tubeaxial | Locked Rotor Protection | 10.00mm | 24.5dB(A) | 720 mW | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
