直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EFC1748DG-TP07FAN AXIAL 172X50.8MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
EFC | Box | Obsolete | 48VDC | Round - 172mm Dia | 415.7 CFM (11.64m³/min) | 1.771 in H2O (441.1 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 63.4dB(A) | 59 W | CE, CSA, UL, VDE | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
AFB0912LD-F00FAN AXIAL 92X20MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 41.0 CFM (1.15m³/min) | 0.084 in H2O (20.9 Pa) | Ball | 0.203 lb (92.08 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 28.5dB(A) | 960 mW | CE, CSA, UL, VDE | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
BFB0505MFAN BLOWER 51X15MM 5VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
BFB | Tray | Obsolete | 5VDC | Square/Rounded - 51mm L x 51.3mm H | 3.2 CFM (0.090m³/min) | 0.433 in H2O (107.9 Pa) | Ball | 0.062 lb (28.12 g) | Blower | Locked Rotor Protection | 15.00mm | 32.5dB(A) | 1.65 W | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0912H-TA50FAN AXIAL 92X25.4MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 59.9 CFM (1.68m³/min) | 0.191 in H2O (47.6 Pa) | Ball | 0.267 lb (121.11 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 37.0dB(A) | 2.52 W | CE, CSA, UL, VDE | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
PFB0612GHE-T500FAN AXIAL 60X38MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
PFB | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 55.6 CFM (1.56m³/min) | 1.444 in H2O (359.7 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 57.5dB(A) | 10.2 W | CE, CSA, UL, VDE | 10000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
AFB0712HHD-R00FAN AXIAL 70X20MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 40.4 CFM (1.13m³/min) | 0.222 in H2O (55.3 Pa) | Ball | 0.154 lb (69.85 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 40.5dB(A) | 3 W | CE, CSA, UL, VDE | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
AFB0612HHBFAN AXIAL 60X15MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 17.3 CFM (0.484m³/min) | 0.195 in H2O (48.6 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 35.0dB(A) | 1.44 W | CE, CSA, UL, VDE | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0412VHB-TP25FAN AXIAL 40X15MM 12VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 12VDC | Square - 40mm L x 40mm H | 13.0 CFM (0.364m³/min) | 0.459 in H2O (114.3 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Sensor, PWM Control | 15.00mm | 36.5dB(A) | 2.16 W | CE, CSA, UL, VDE | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

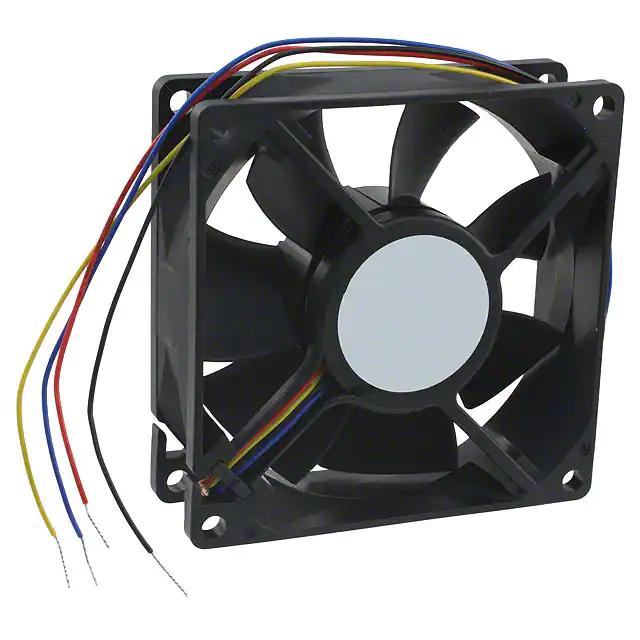

AUB0812L-9X41FAN AXIAL 80X25.4MM 12VDC Delta Electronics |
0 | - |
|
数据表 |
AUB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 27.9 CFM (0.781m³/min) | 0.102 in H2O (25.5 Pa) | Superflo | 0.195 lb (88.45 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 43.0dB(A) | 1.08 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
EHB1548SHG-C126FAN AXIAL 172X50.8MM 48VDC WIRE Delta Electronics |
0 | - |
|
数据表 |
EHB | Box | Obsolete | 48VDC | Rectangular/Rounded - 172mm L x 150mm H | 347.1 CFM (9.72m³/min) | 1.492 in H2O (371.6 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 50.80mm | 66.5dB(A) | 42.24 W | CE, CSA, UL, VDE | 4900 RPM | -40 ~ 176°F (-40 ~ 80°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
