直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

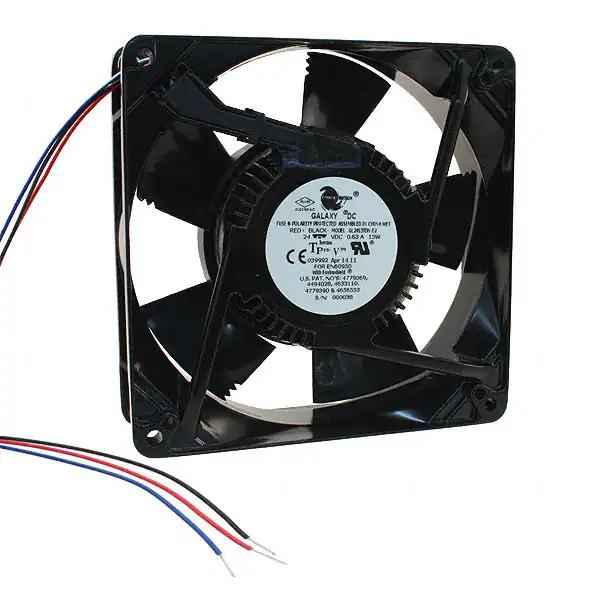

19039992AFAN AXIAL 127X38MM GL24S3TDN-E2 Comair Rotron |
100 | - |
|
数据表 |
Galaxy | Box | Active | 24VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 38.10mm | 53.6dB(A) | 15 W | CSA, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19031162AFAN AXIAL 80X25.4MM 12VDC FE12B3 Comair Rotron |
0 | - |
|
数据表 |
Flight II 80 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.233 in H2O (58.0 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | - | 25.40mm | 36.2dB(A) | 2 W | - | 3574 RPM | - | 2 Wire Leads | - |
|
|
19031163AFAN AXIAL 80X25.4MM 24VDC FE24B3 Comair Rotron |
0 | - |
|
数据表 |
Flight II 80 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.233 in H2O (58.0 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | - | 25.40mm | 36.2dB(A) | 2 W | - | 3628 RPM | - | 2 Wire Leads | - |
|

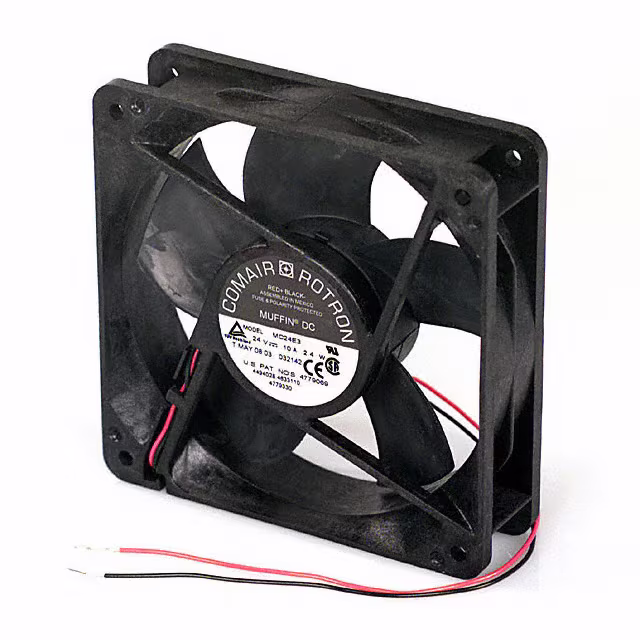

19032142AFAN AXIAL 120X32MM 24VDC MC24E3 Comair Rotron |
0 | - |
|
数据表 |
Muffin | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 60.0 CFM (1.68m³/min) | 0.132 in H2O (32.9 Pa) | Sleeve | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 39.7dB(A) | 2.4 W | - | 2170 RPM | - | 2 Wire Leads | - |
|

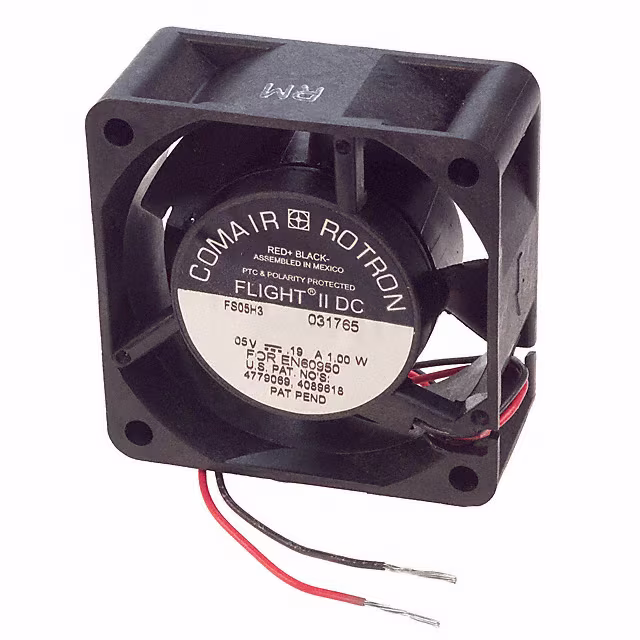

19031765AFAN AXIAL 60X25MM BALL 5V FS05H3 Comair Rotron |
0 | - |
|
数据表 |
Flight II 60 | - | Obsolete | 5VDC | Square - 60mm L x 60mm H | 12.0 CFM (0.336m³/min) | 0.145 in H2O (36.1 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | - | 25.00mm | 28.5dB(A) | 1 W | - | 3500 RPM | - | 2 Wire Leads | - |
|
19031164AFAN AXIAL 80X25.4MM 12VDC FE12H3 Comair Rotron |
0 | - |
|
数据表 |
Flight II 80 | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 27.0 CFM (0.756m³/min) | 0.123 in H2O (30.6 Pa) | Ball | 0.287 lb (130.18 g) | Tubeaxial | - | 25.40mm | 28.9dB(A) | 1 W | - | 2737 RPM | - | 2 Wire Leads | - |
|
19031175AFAN AXIAL 120.1X25.6MM FT24B3 Comair Rotron |
0 | - |
|
数据表 |
Flight II 120 | - | Obsolete | 24VDC | Square - 120.1mm L x 120.1mm H | 90.0 CFM (2.52m³/min) | 0.211 in H2O (52.6 Pa) | Ball | 0.441 lb (200.03 g) | Tubeaxial | - | 25.60mm | 42.9dB(A) | 4 W | - | 2940 RPM | - | 2 Wire Leads | - |
|
19031157AFAN AXIAL 60X25MM 24VDC FS24B3 Comair Rotron |
0 | - |
|
数据表 |
Flight II 60 | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | - | 25.00mm | 33.9dB(A) | 1.9 W | - | 4927 RPM | - | 2 Wire Leads | - |
|
19032208AFAN AXIAL 120X32MM 24VDC MC24A3 Comair Rotron |
0 | - |
|
数据表 |
Muffin | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 47.8dB(A) | 6.7 W | - | 3700 RPM | - | 2 Wire Leads | - |
|
19032207AFAN AXIAL 120X32MM 12VDC MC12A3 Comair Rotron |
0 | - |
|
数据表 |
Muffin | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Sleeve | 0.529 lb (239.95 g) | Tubeaxial | - | 32.00mm | 47.8dB(A) | 7.9 W | - | 3700 RPM | - | 2 Wire Leads | - |
