直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

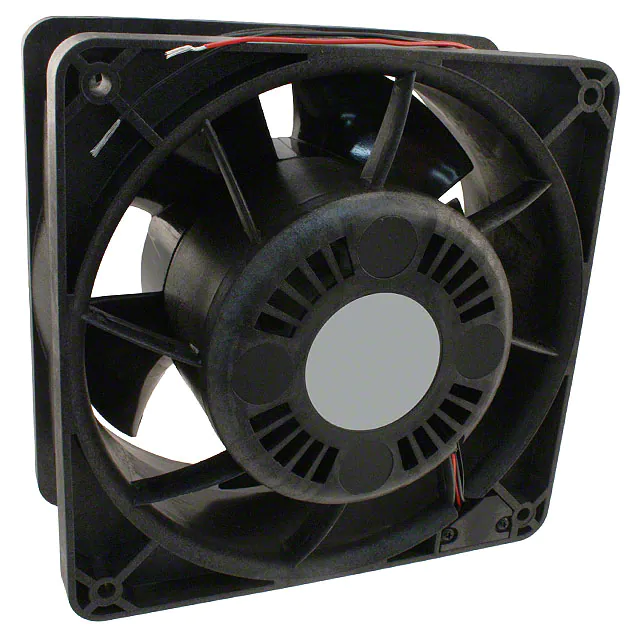

19031520AFAN AXIAL 175.5X111.8MM TD48B1 Comair Rotron |
138 | - |
|
数据表 |
Tarzan | Box | Active | 48VDC | Square - 175.5mm L x 175.5mm H | 325.0 CFM (9.10m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 5 lbs (2.3 kg) | Tubeaxial | Auto Restart, Locked Rotor Protection | 111.8mm | 65.2dB(A) | 33.6 W | cUL, UL | 3275 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

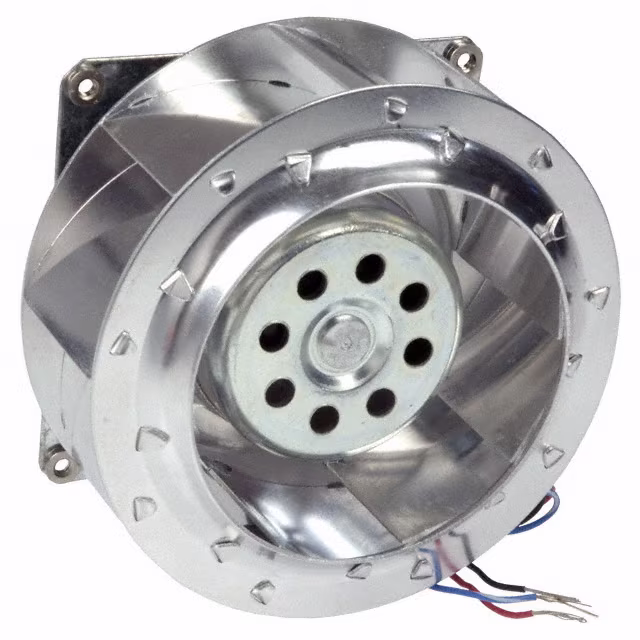

19039822AFAN IMP MTR 102X55MM DD402148B1R Comair Rotron |
49 | - |
|
数据表 |
Diplomat | Bulk | Active | 48VDC | Round - 118mm Dia | 98.0 CFM (2.74m³/min) | 1.560 in H2O (388.6 Pa) | Ball | 0.816 lb (370.13 g) | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 55.60mm | 59.0dB(A) | 18.2 W | CE, cUL, UL | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19040521AFAN 24VDC MT24R7-E2 Comair Rotron |
92 | - |
|
数据表 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
19044018AFAN AXIAL 172X51MM MFXE48Z1D3 Comair Rotron |
246 | - |
|
数据表 |
Mixtus | Box | Active | 48VDC | Round - 171.5mm Dia | 400.0 CFM (11.20m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Fan Performance Sensor (FPS), Locked Rotor Protection | 50.80mm | 69.0dB(A) | 74.4 W | CE, UL | 5400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
19039842AFAN IMP MTR 175X53MM DD692124K1A Comair Rotron |
71 | - |
|
数据表 |
Diplomat | Bulk | Active | 24VDC | Round - 175mm Dia | 250.0 CFM (7.00m³/min) | 1.590 in H2O (396.1 Pa) | Ball | 2.5 lbs (1.1 kg) | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 53.00mm | 67.2dB(A) | 30.7 W | CE, cUL, UL | 3250 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

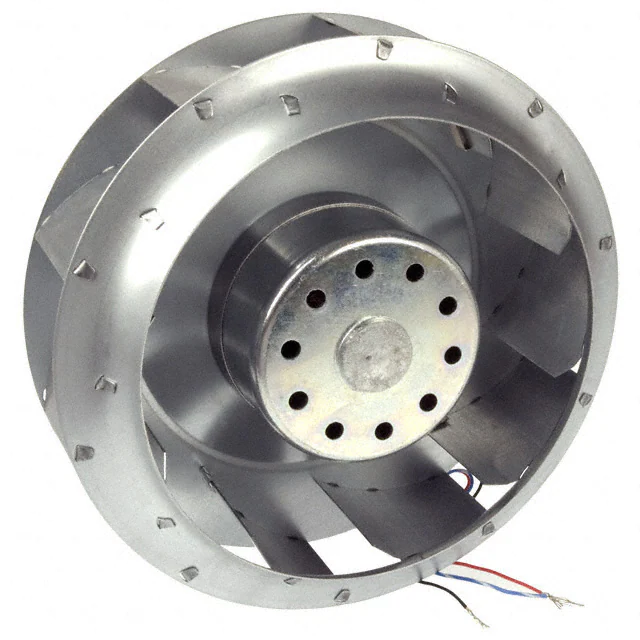

19039848AFAN IMP MTR 175X68MM DD692724B1A Comair Rotron |
69 | - |
|
数据表 |
Diplomat | Bulk | Active | 24VDC | Round - 175mm Dia | 275.0 CFM (7.70m³/min) | 1.060 in H2O (264.0 Pa) | Ball | 2.5 lbs (1.1 kg) | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 68.58mm | 65.0dB(A) | 30.5 W | CE, cUL, UL | 2850 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

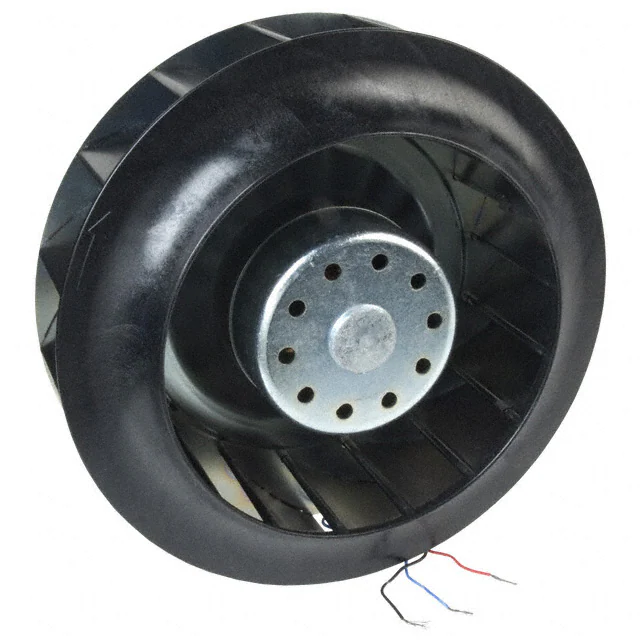

19039859AFAN IMP MTR 192X69MM DD752712K1A Comair Rotron |
72 | - |
|
数据表 |
Diplomat | Bulk | Obsolete | 12VDC | Round - 192mm Dia | 300.0 CFM (8.40m³/min) | 1.260 in H2O (313.9 Pa) | Ball | 2.2 lbs (997.9 g) | Motorized Impellers | Speed Sensor (Tach) | 69.00mm | 57.6dB(A) | 30 W | - | 2150 RPM | - | 3 Wire Leads | - |
|
|
19039858AFAN IMP MTR 192X69MM DD752748B1A Comair Rotron |
69 | - |
|
数据表 |
Diplomat | Bulk | Obsolete | 48VDC | Round - 192mm Dia | 250.0 CFM (7.00m³/min) | 0.880 in H2O (219.2 Pa) | Ball | 2.2 lbs (997.9 g) | Motorized Impellers | Speed Sensor (Tach) | 69.00mm | 53.7dB(A) | 23 W | - | 1850 RPM | - | 3 Wire Leads | - |
|
19043137AFAN 227X99MM DDE893948B1S5X-E2 Comair Rotron |
29 | - |
|
数据表 |
Diplomat | Box | Active | 48VDC | Round - 227mm Dia | 685.0 CFM (19.18m³/min) | 1.900 in H2O (473.3 Pa) | Ball | 3.8 lbs (1.7 kg) | Motorized Impellers | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 99.00mm | 73.0dB(A) | 106 W | cUL, UL | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Position Rectangular Connector | IP55 - Dust Protected, Water Resistant |
|

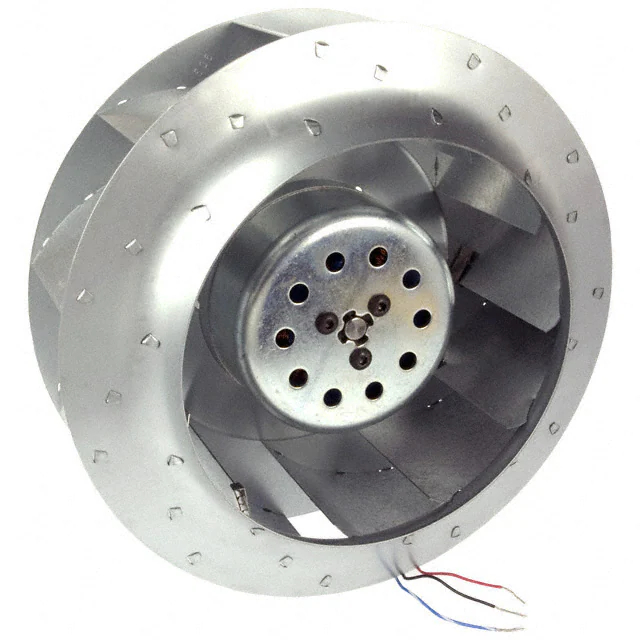

19039871AFAN IMP MTR 227X99MM DD893948B1A Comair Rotron |
34 | - |
|
数据表 |
Diplomat | Bulk | Active | 48VDC | Round - 227mm Dia | 626.0 CFM (17.53m³/min) | 1.900 in H2O (473.3 Pa) | Ball | 3.8 lbs (1.7 kg) | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 99.00mm | 73.5dB(A) | 100 W | CE, cUL, UL | 2550 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
