直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19031090AFAN AXIAL 171.5X50.8MM JQ24B4 Comair Rotron |
7 | - |
|
数据表 |
Major | Bulk | Active | 24VDC | Rectangular/Rounded - 171.5mm L x 150.4mm H | 235.0 CFM (6.58m³/min) | 0.812 in H2O (202.3 Pa) | Ball | 1.9 lbs (861.8 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.80mm | 54.3dB(A) | 24 W | CE, UL | 3425 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Terminals | - |
|
19028865AFAN AXIAL 119.1X39.1MM MD12B1 Comair Rotron |
94 | - |
|
数据表 |
Muffin XL | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 110.0 CFM (3.08m³/min) | 0.278 in H2O (69.2 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.12mm | 50.0dB(A) | 6 W | UL | 3330 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19030599AFAN AXIAL 120X32MM 24VDC MC24B7 Comair Rotron |
91 | - |
|
数据表 |
Muffin | Box | Active | 24VDC | Square - 120mm L x 120mm H | 102.0 CFM (2.86m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 47.8dB(A) | 5.5 W | CE, UL | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19030573AFAN AXIAL 120X32MM 48VDC MC48B3 Comair Rotron |
25 | - |
|
数据表 |
Muffin | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 102.0 CFM (2.86m³/min) | - | Ball | 0.529 lb (239.95 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 47.8dB(A) | 8.4 W | UL | 3700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
19031102AFAN BLOWER 80X32.4MM 24V WT24B3 Comair Rotron |
6 | - |
|
数据表 |
Whiffet | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.0 CFM (0.420m³/min) | 0.620 in H2O (154.4 Pa) | Ball | 0.369 lb (167.38 g) | Blower | Auto Restart, Locked Rotor Protection | 32.40mm | 51.4dB(A) | 4.8 W | CE, cUL, UL | 4050 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
17001157AFAN AXIAL 24VDC MSD24B3E2X-E3 Comair Rotron |
12 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 49.1dB(A) | 7 W | CE, cUL, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001186AFAN AXIAL BALL JQD24Z3E2X-E3 Comair Rotron |
6 | - |
|
数据表 |
Major | Bulk | Active | 24VDC | Square/Rounded - 171.4mm L x 171.4mm H | 305.0 CFM (8.54m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 60.4dB(A) | 31.2 W | CE, cUL, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

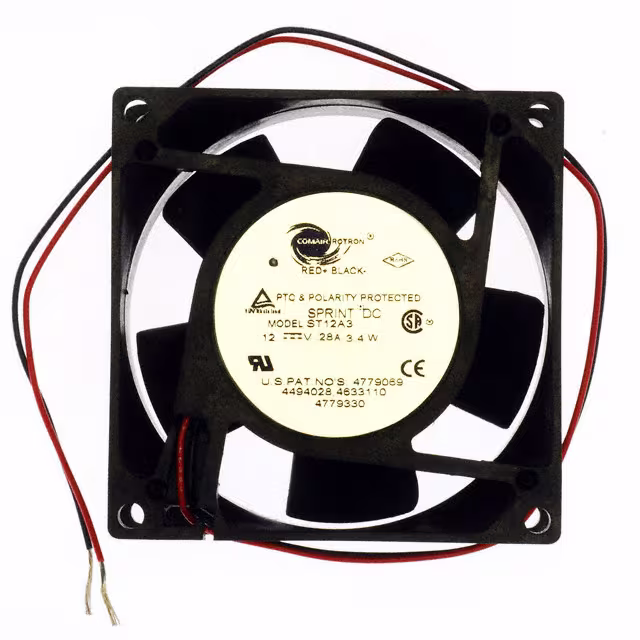

19032107AFAN AXIAL 80X32MM 12VDC ST12A3 Comair Rotron |
0 | - |
|
数据表 |
Sprint | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.225 in H2O (56.0 Pa) | Sleeve | 0.397 lb (180.08 g) | Tubeaxial | - | 32.00mm | 40.9dB(A) | 3.4 W | - | 3400 RPM | - | 2 Wire Leads | - |
|
19032127AFAN AXIAL 80X32MM 24VDC ST24A3 Comair Rotron |
0 | - |
|
数据表 |
Sprint | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.225 in H2O (56.0 Pa) | Sleeve | 0.397 lb (180.08 g) | Tubeaxial | - | 32.00mm | 40.9dB(A) | 3.3 W | - | 3440 RPM | - | 2 Wire Leads | - |
|
19031156AFAN AXIAL 60X25MM 12VDC FS12B3 Comair Rotron |
0 | - |
|
数据表 |
Flight II 60 | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 18.0 CFM (0.504m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | - | 25.00mm | 33.9dB(A) | 2.5 W | - | 5000 RPM | - | 2 Wire Leads | - |
