直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17000208AFAN AXIAL 12VDC CR1212UB-Y51 Comair Rotron |
0 | - |
|
数据表 |
- | Bulk | Obsolete | 12VDC | Square - 120mm L x 120mm H | 133.4 CFM (3.74m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.47 lb (213.19 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.30mm | 48.4dB(A) | 6.12 W | CE, cUL, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
19031481AFAN AXIAL 80X32MM 48VDC ST48K0X Comair Rotron |
105 | - |
|
数据表 |
Sprint | Box | Active | 48VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.301 in H2O (75.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 44.2dB(A) | 5.3 W | CE, UL | 4250 RPM | - | 3 Wire Leads with Splice Terminals | - |
|

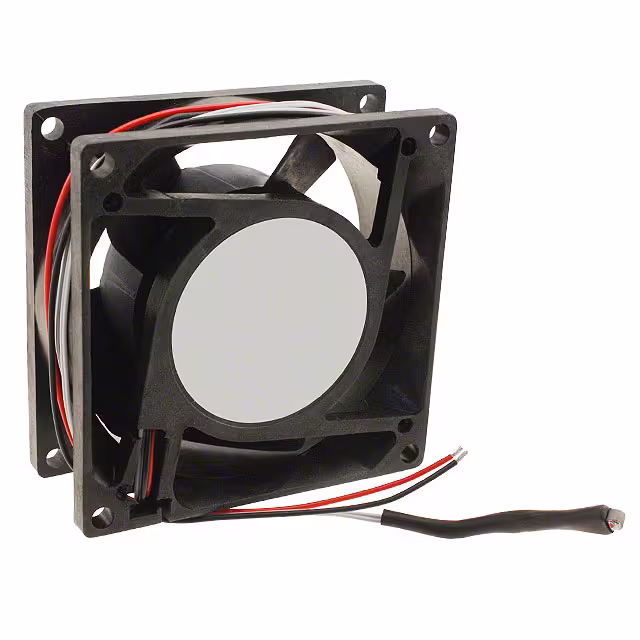

19032397AFAN AXIAL 80X32MM 24VDC ST24S3H Comair Rotron |
63 | - |
|
数据表 |
Sprint | Box | Active | 24VDC | Square - 80mm L x 80mm H | 34.0 CFM (0.952m³/min) | 0.325 in H2O (80.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 32.00mm | 40.2dB(A) | 3.8 W | UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
17001221AFAN AXIAL 48VDC MSD48B3-E3 Comair Rotron |
27 | - |
|
数据表 |
Muffin XP | Box | Active | 48VDC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 49.1dB(A) | 7.2 W | CE, cUL, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
17001172AFAN AXIAL 48VDC GLD48B3E2X-E3 Comair Rotron |
101 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 150.0 CFM (4.20m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 53.6dB(A) | 14.9 W | CE, cUL, UL | 3300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

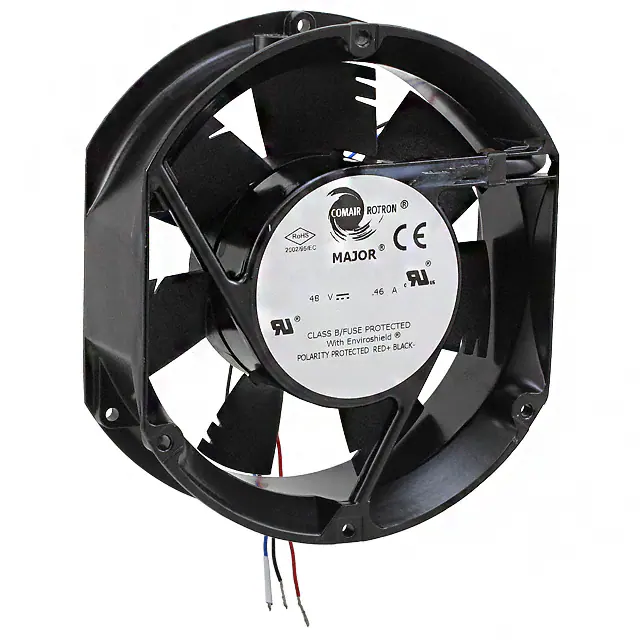

19041119AFAN AXIAL 171.4X50MM JQ48B7X-E2 Comair Rotron |
528 | - |
|
数据表 |
Major | Bulk | Active | 48VDC | Rectangular/Rounded - 171.4mm L x 150.4mm H | 235.0 CFM (6.58m³/min) | 0.810 in H2O (201.8 Pa) | Ball | 1.8 lbs (816.5 g) | Tubeaxial | Speed Sensor (Tach) | 50.80mm | 54.3dB(A) | 20.1 W | CSA, TUV, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
17001216AFAN AXIAL 12VDC SDD12B1-E3 Comair Rotron |
38 | - |
|
数据表 |
Sprite | Box | Active | 12VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.80mm | 47.6dB(A) | 3 W | CE, cUL, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001173AFAN AXIAL 12VDC GLD12K3E2X-E3 Comair Rotron |
114 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 127mm L x 127mm H | 175.0 CFM (4.90m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 57.9dB(A) | 23.9 W | CE, cUL, UL | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001190AFAN AXIAL 12VDC PQD12B3E2X-E3 Comair Rotron |
45 | - |
|
数据表 |
Major | Bulk | Active | 12VDC | Round - 171.4mm Dia | 235.0 CFM (6.58m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 54.3dB(A) | 27.1 W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|

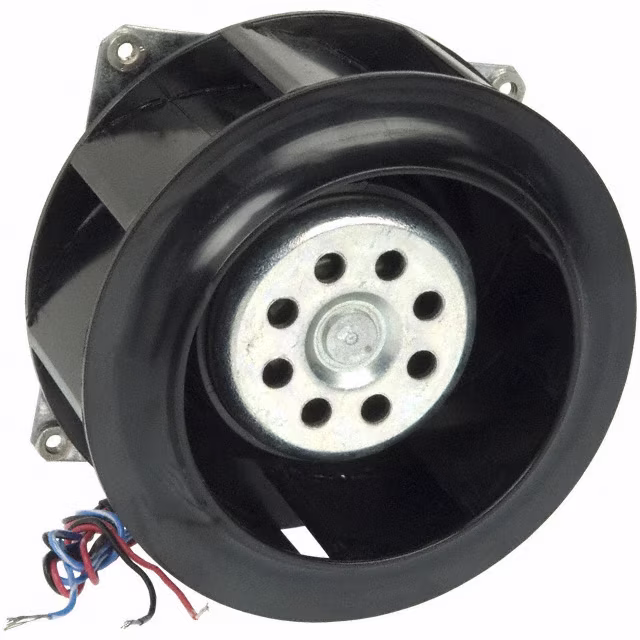

19039825AFAN IMP MTR 118X55MM DD402148K1R Comair Rotron |
69 | - |
|
数据表 |
Diplomat | Bulk | Active | 48VDC | Round - 118mm Dia | 116.0 CFM (3.25m³/min) | 1.730 in H2O (430.9 Pa) | Ball | 0.816 lb (370.13 g) | Motorized Impellers | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 55.60mm | 67.0dB(A) | 34.6 W | CE, cUL, UL | 5900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
