直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF80251V1-1000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
26,750 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | 0.167 lb (75.75 g) | Tubeaxial | Auto Restart | 25.00mm | 33.0dB(A) | 1.44 W | cURus, TUV | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
03010SS-12N-AT-00FAN AXIAL 30X10MM 12VDC WIRE |
1,818 | - |
|
数据表 |
03010SS | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 4.2 CFM (0.118m³/min) | 0.240 in H2O (59.8 Pa) | Sleeve | 0.019 lb (8.62 g) | Tubeaxial | Speed Sensor (Tach) | 10.00mm | 28.0dB | 960 mW | - | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-4020V-180-275FAN AXIAL 40X20MM 12VDC WIRE |
413 | - |
|
数据表 |
CFM-40V | Tray | Active | 12VDC | Square - 40mm L x 40mm H | 10.8 CFM (0.302m³/min) | 0.290 in H2O (72.2 Pa) | omniCOOL™ Magnetic Sleeve | 0.064 lb (29.03 g) | Tubeaxial | Auto Restart | 20.00mm | 27.5dB(A) | 1.11 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

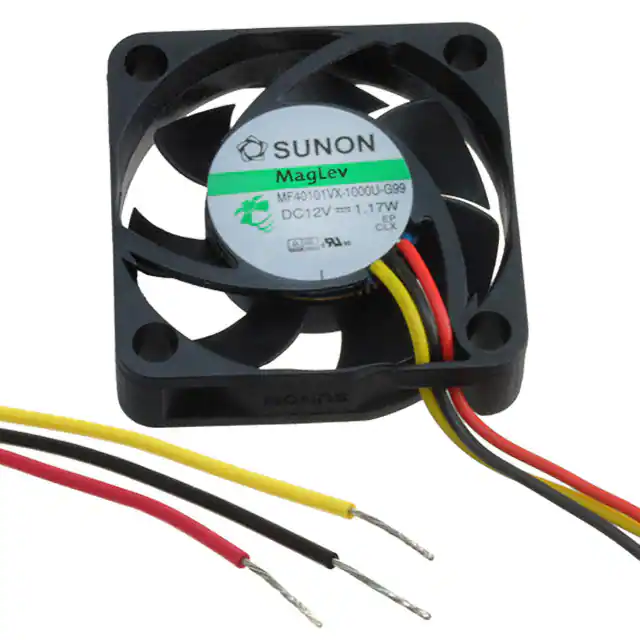

MF40101VX-1000U-G99FAN AXIAL 40X10MM 12VDC WIRE |
1,285 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.9 CFM (0.277m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 0.035 lb (15.88 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 31.4dB(A) | 1.05 W | cURus, TUV | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

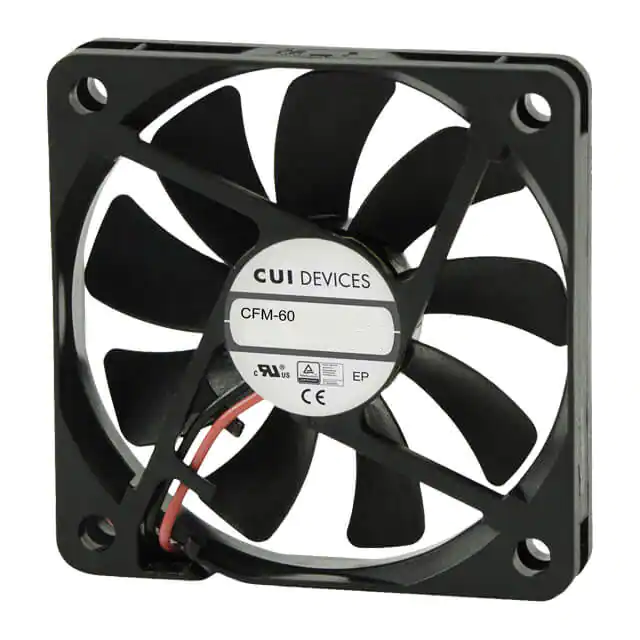

CFM-6015V-154-362FAN AXIAL 60X15MM 12VDC WIRE |
4,982 | - |
|
数据表 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 30.4 CFM (0.851m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.078 lb (35.38 g) | Tubeaxial | Auto Restart | 15.00mm | 36.2dB(A) | 2.56 W | CE, cURus, TUV | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
AFB0824L-F00FAN AXIAL 80X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 27.9 CFM (0.781m³/min) | 0.102 in H2O (25.5 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 25.0dB(A) | 1.2 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD4028-24HBFAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
OD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 12.0 CFM (0.336m³/min) | 0.320 in H2O (79.7 Pa) | Ball | - | Tubeaxial | - | 28.00mm | 37.0dB | - | cURus, TUV | 8800 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
MF60101V1-1000U-A99FAN AXIAL 60X10MM 12VDC WIRE |
2,841 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 16.3 CFM (0.456m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | 0.051 lb (23.13 g) | Tubeaxial | Auto Restart | 10.00mm | 28.5dB(A) | 1.3 W | cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD4028-24LBFAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
OD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 7.0 CFM (0.196m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | - | 28.00mm | 25.0dB | - | cURus, TUV | 5000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
|
CFM-6015V-254-362FAN AXIAL 60X15MM 24VDC WIRE |
1,030 | - |
|
数据表 |
CFM-60V | Tray | Active | 24VDC | Square - 60mm L x 60mm H | 30.4 CFM (0.851m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | 0.078 lb (35.38 g) | Tubeaxial | Auto Restart | 15.00mm | 36.2dB(A) | 2.36 W | CE, cURus, TUV | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD4028-24MBFAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
OD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | - | 28.00mm | 35.0dB | - | cURus, TUV | 8000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
07530GS-24N-ATD-0FAN 24VDC 75X30MM |
0 | - |
|
数据表 |
07530GS | Box | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 15.2 CFM (0.430m³/min) | 0.787 in H2O (196.0 Pa) | Sleeve | - | Blower | Auto Restart, Speed Sensor (Tach) | 30.00mm | 45.5dB(A) | 2.64 W | CE, cURus, VDE | 3650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD4020-24HSSFAN AXIAL 40X20MM 24VDC WIRE |
1,166 | - |
|
数据表 |
OD4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.320 in H2O (79.7 Pa) | Sealed Sleeve | - | Tubeaxial | Auto Restart | 20.00mm | 32.1dB(A) | 1.72 W | cURus, TUV | 8190 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
|
07530GS-12N-ATD-0FAN 12VDC 75X30MM |
0 | - |
|
数据表 |
07530GS | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 15.2 CFM (0.430m³/min) | 0.787 in H2O (196.0 Pa) | Sleeve | - | Blower | Auto Restart, Speed Sensor (Tach) | 30.00mm | 45.5dB(A) | 3.96 W | CE, cURus, VDE | 3650 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MF92251V1-1000U-A99FAN AXIAL 92X25MM 12VDC WIRE |
16,874 | - |
|
数据表 |
MagLev® MF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 51.5 CFM (1.44m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | 0.203 lb (92.08 g) | Tubeaxial | Auto Restart | 25.00mm | 34.0dB(A) | 1.68 W | cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
OD4028-24HHBThermal Products |
0 | - |
|
数据表 |
OD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 24.0 CFM (0.672m³/min) | 1.300 in H2O (323.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 28.00mm | 54.2dB(A) | 4.1 W | CE, cURus, TUV, UR | 12900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
G9225M24B-FSFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
G9225 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 42.0 CFM (1.18m³/min) | 0.120 in H2O (29.9 Pa) | Ball | 0.19 lb (86.18 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 2400 RPM | - | 2 Wire Leads | - |
|
G9232X24B-FSFAN AXIAL 92X32MM 24VDC WIRE |
0 | - |
|
数据表 |
G9232 | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | 68.0 CFM (1.90m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 0.335 lb (151.95 g) | Tubeaxial | Thermal Overload Protector (TOP) | 32.00mm | 44.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
AFB0605LDFAN AXIAL 60X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 13.1 CFM (0.367m³/min) | 0.119 in H2O (29.6 Pa) | Ball | 0.137 lb (62.14 g) | Tubeaxial | - | 20.00mm | 24.0dB(A) | 700 mW | CE, CSA, UL, VDE | 3200 RPM | - | 2 Wire Leads | - |
|
|
CBM-4007C-065-295DC BLOWER, 40 MM SQUARE, 7 MM, 5 |
224 | - |
|
数据表 |
CBM-40C | Box | Active | 5VDC | Square/Rounded - 40mm L x 40mm H | 1.9 CFM (0.053m³/min) | 0.710 in H2O (176.9 Pa) | omniCOOL™ Magnetic Sleeve | - | Blower | - | 7.00mm | 29.5dB(A) | 1.05 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
