直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EF60202B3-000U-A99Thermal Products |
0 | - |
|
数据表 |
EF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 14.1 CFM (0.395m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 24.5dB(A) | 560 mW | CE, CUR, TUV, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
EF60202B2-000U-A99Thermal Products |
0 | - |
|
数据表 |
EF | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 20.00mm | 29.0dB(A) | 920 mW | - | 3700 RPM | - | 2 Wire Leads | - |
|

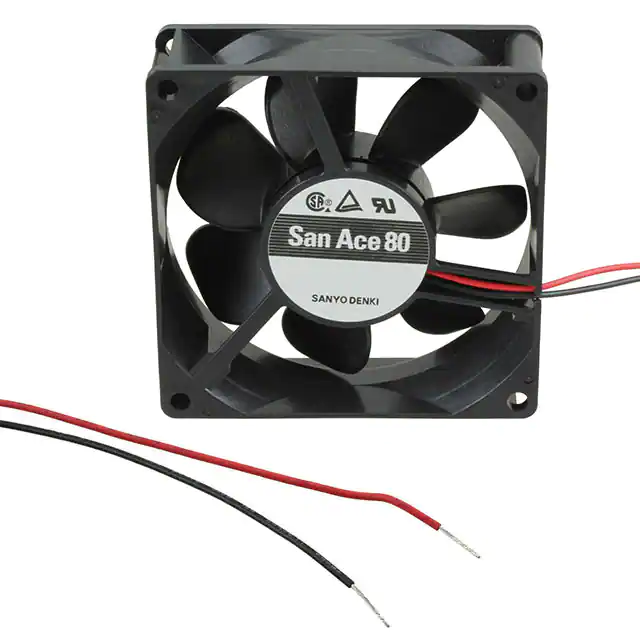

109R0824M4021FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.243 lb (110.22 g) | Tubeaxial | Locked Rotor Protection | 25.00mm | 23.0dB(A) | 1.2 W | CSA, TUV, UL | 2350 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
19032722AFAN AXIAL 80X15MM 24VDC WIRE |
0 | - |
|
数据表 |
Flight LT 80 | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.127 in H2O (31.6 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | - | 15.00mm | 33.6dB(A) | 3.1 W | CE, CSA, UR | 3200 RPM | - | 2 Wire Leads | - |
|
F8025H12D-FHRFAN AXIAL 80X25MM 12VDC WIRE |
1 | - |
|
数据表 |
F8025-H | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | 0.182 lb (82.55 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 3200 RPM | - | 2 Wire Leads | - |
|

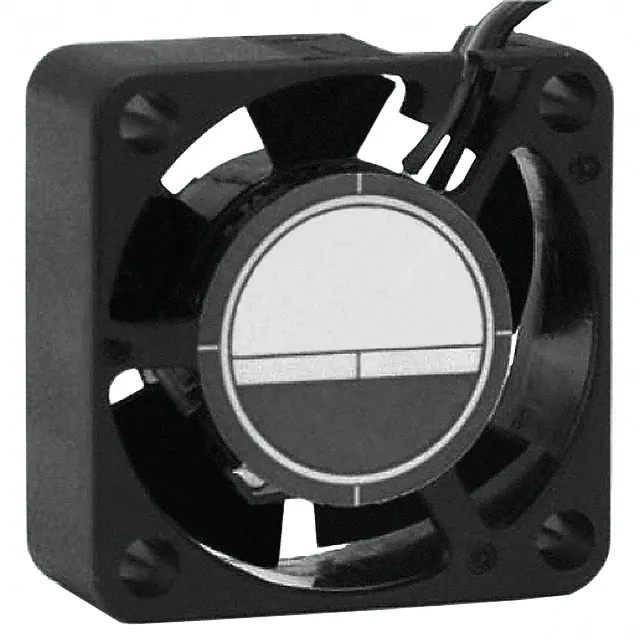

OD2510-05LSFAN AXIAL 25X10MM 5VDC WIRE |
0 | - |
|
数据表 |
OD2510 | Bulk | Active | 5VDC | Square - 25mm L x 25mm H | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | 0.022 lb (9.98 g) | Tubeaxial | Auto Restart | 10.00mm | - | 500 mW | cURus, TUV | 8000 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
OD2510-12LSFAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
OD2510 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.8 CFM (0.050m³/min) | 0.120 in H2O (29.9 Pa) | Sleeve | 0.022 lb (9.98 g) | Tubeaxial | Auto Restart | 10.00mm | 16.0dB | 840 mW | cURus, TUV | 8000 RPM | 14 ~ 122°F (-10 ~ 50°C) | 2 Wire Leads | - |
|
|
DC0701512J2B-2T2FAN 70X15MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 21.1 CFM (0.591m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 27.0dB(A) | 1.2 W | CE, cURus, TUV | 2800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|

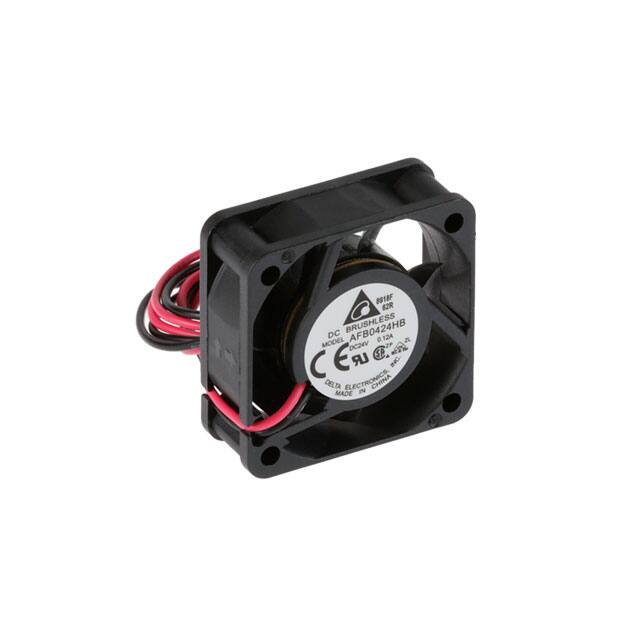

AFB0424HBFAN AXIAL 40X15MM 24VDC WIRE |
0 | - |
|
数据表 |
AFB | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.5 CFM (0.266m³/min) | 0.272 in H2O (67.7 Pa) | Ball | 0.057 lb (25.85 g) | Tubeaxial | Locked Rotor Protection | 15.00mm | 28.5dB(A) | 1.92 W | CE, CSA, UL, VDE | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0602024U2B-2T2FAN 60X20MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.6 CFM (0.549m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 33.0dB(A) | 3.46 W | CE, cURus | 4800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602024H2B-2T2FAN 60X20MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 18.1 CFM (0.507m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 31.0dB(A) | 2.88 W | CE, cURus | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601024U2B-2T2FAN 60X10MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.50mm | 37.0dB(A) | 4.8 W | CE, cURus | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0501524U2B-2T2FAN 50X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 17.0 CFM (0.476m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 36.0dB(A) | 3.12 W | CE, cURus | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601024M2B-2T2FAN 60X10MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.50mm | 33.0dB(A) | 4.08 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601005M2B-2T2FAN 60X10MM 5VDC MOLEX 22-01-102 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 17.1 CFM (0.479m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.50mm | 33.0dB(A) | 850 mW | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601524U2B-2T2FAN 60X15MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 26.5 CFM (0.742m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 15.00mm | 37.0dB(A) | 6.24 W | CE, cURus | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0601005U2B-2T2FAN 60X10MM 5VDC MOLEX 22-01-102 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 19.9 CFM (0.557m³/min) | 0.160 in H2O (39.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.50mm | 37.0dB(A) | 1 W | CE, cURus | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0602024M2B-2T2FAN 60X20MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 16.4 CFM (0.459m³/min) | 0.190 in H2O (47.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 29.0dB(A) | 2.64 W | CE, cURus | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0502024H2B-2T2FAN 50X20MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 20.3 CFM (0.568m³/min) | 0.300 in H2O (74.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 38.0dB(A) | 7.2 W | CE, cURus | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|

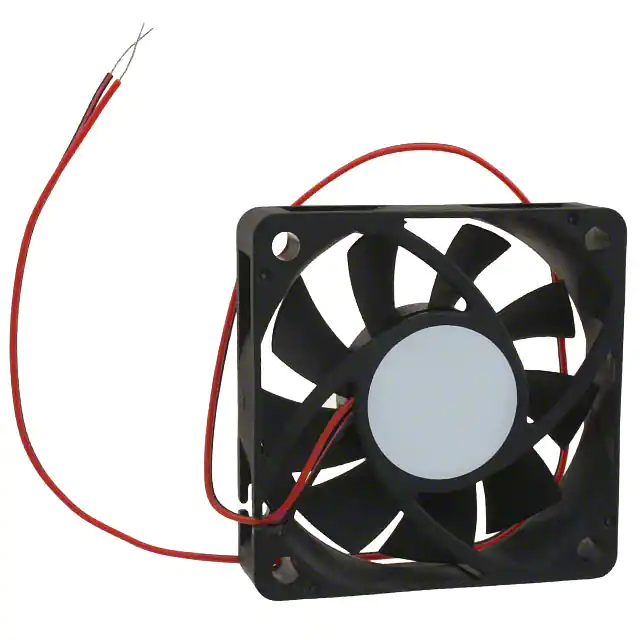

AFB0612VHCFAN AXIAL 60X13MM 12VDC WIRE |
0 | - |
|
数据表 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 27.7 CFM (0.776m³/min) | 0.252 in H2O (62.8 Pa) | Ball | 0.074 lb (33.56 g) | Tubeaxial | Locked Rotor Protection | 13.00mm | 38.0dB(A) | 2.88 W | CE, CSA, UL, VDE | 5400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
