直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0802512J2B-BT0FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.188 lb (85.28 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 37.0dB(A) | 3.84 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
DC0802548J2B-2T0FAN 80X25MM 48VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.40mm | 35.0dB(A) | 7.2 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0802524J2B-3T0FAN 80X25MM 24VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.40mm | 35.0dB(A) | 3.6 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0501012M2B-2T2FAN 50X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.5 CFM (0.294m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 30.0dB(A) | 960 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0501012H2B-2T2FAN 50X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 12.7 CFM (0.356m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 35.0dB(A) | 1.2 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0501024L2B-BT0FAN 50X10MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 8.2 CFM (0.230m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 25.0dB(A) | 1.68 W | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0501005L2B-BT0FAN 50X10MM 5VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 8.2 CFM (0.230m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 25.0dB(A) | 350 mW | CE, cURus | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0501005J2B-BT0FAN 50X10MM 5VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | Square - 50mm L x 50mm H | 6.7 CFM (0.188m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 18.0dB(A) | 250 mW | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0501024J2B-BT0FAN 50X10MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 50mm L x 50mm H | 6.7 CFM (0.188m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 10.00mm | 18.0dB(A) | 1.2 W | CE, cURus | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
OD5210-05MBFAN AXIAL 52X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD5210 | Bulk | Active | 5VDC | Square - 52mm L x 52mm H | 10.0 CFM (0.280m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | - | 10.00mm | 32.0dB | - | cURus, TUV | 5000 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
4710KL-04W-B49-B00FAN AXIAL 119X25.5MM 12VDC WIRE |
0 | - |
|
数据表 |
4710KL | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 100.6 CFM (2.82m³/min) | 0.164 in H2O (40.9 Pa) | Ball | 0.397 lb (180.08 g) | Tubeaxial | Locked Rotor Sensor | 25.50mm | 38.5dB | 4.8 W | CE, CSA, UL, VDE | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

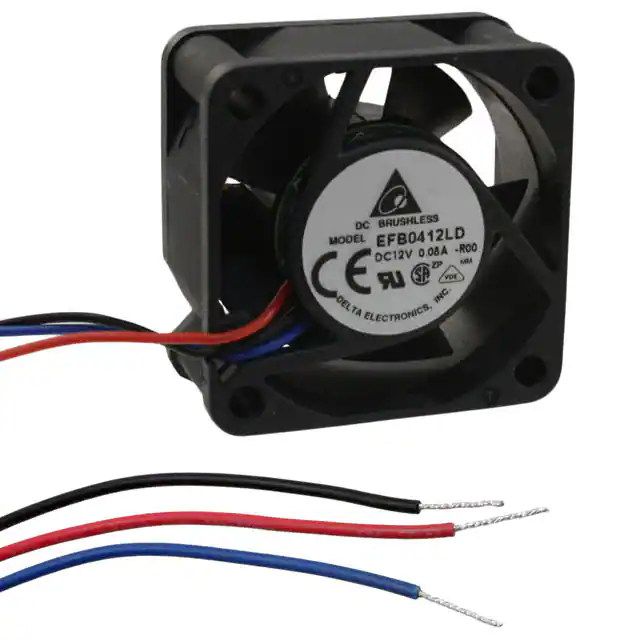

EFB0412LD-R00FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.136 in H2O (33.9 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Sensor | 20.00mm | 22.0dB(A) | 600 mW | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD3510-05HBFAN AXIAL 35X10MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD3510 | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | - | - | Ball | - | Tubeaxial | - | 10.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
G4020E05B2-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
|
G4020E05B2-RSR-WSFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 4 Wire Leads | - |
|
G4020E12B1-RSR-WSFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 4 Wire Leads | - |
|
|
G4020E12B2-RSRFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
|
G4020E24B1-RSR-TTLFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
|
G4020E24B2-RSRFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 3 Wire Leads | - |
|
|
G4020H05B1-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 20.00mm | 29.0dB(A) | - | CE, cUL, TUV, UL | 7000 RPM | - | 3 Wire Leads | - |
