直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17001219AFAN AXIAL 12VDC MSD12B3-E3 |
13 | - |
|
数据表 |
Muffin XP | Box | Active | 12VDC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 49.1dB(A) | 7 W | CE, cUL, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
17001178AFAN AXIAL 48VDC GLD48Z3E2X-E3 |
7 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 127mm L x 127mm H | 192.0 CFM (5.38m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 59.4dB(A) | 28.8 W | CE, cUL, UL | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
G1751Y48BALB2B-7FAN AXIAL 172X51MM 48VDC WIRE |
3 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 48VDC | Rectangular/Round - 172mm L x 150mm H | 323.0 CFM (9.15m³/min) | 0.850 in H2O (211.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Rotation Detection | 51.00mm | 58.9dB(A) | 29.9 W | CE, cUL, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
G1751Y48BALB2B-5FAN AXIAL 172X51MM 48VDC WIRE |
2 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 48VDC | Rectangular/Round - 172mm L x 150mm H | 323.0 CFM (9.15m³/min) | 0.850 in H2O (211.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection, Rotation Detection | 51.00mm | 58.9dB(A) | 29.9 W | CE, cUL, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4114NXFAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4100N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | - | - | Ball | - | Tubeaxial | - | 38.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
9RA1412M1001140X38MM 12VDC LOW NOISE TACH |
13 | - |
|
数据表 |
San Ace 140 | Box | Active | 12VDC | Square - 140mm L x 140mm H | 113.0 CFM (3.16m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 35.0dB(A) | 2.3 W | cURus, TUV | 2250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
17001213AFAN AXL 80X32MM 12VDC STD12B3-E3 |
19 | - |
|
数据表 |
Sprint | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.0 CFM (0.896m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 40.9dB(A) | 3.4 W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001215AFAN AXL 80X32MM 48VDC STD48B3-E3 |
9 | - |
|
数据表 |
Sprint | Box | Active | 48VDC | Square - 80mm L x 80mm H | 32.0 CFM (0.896m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 40.9dB(A) | 3.6 W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001214AFAN AXIAL 24VDC STD24B3-E3 |
4 | - |
|
数据表 |
Sprint | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.0 CFM (0.896m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 32.00mm | 40.9dB(A) | 3.3 W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|

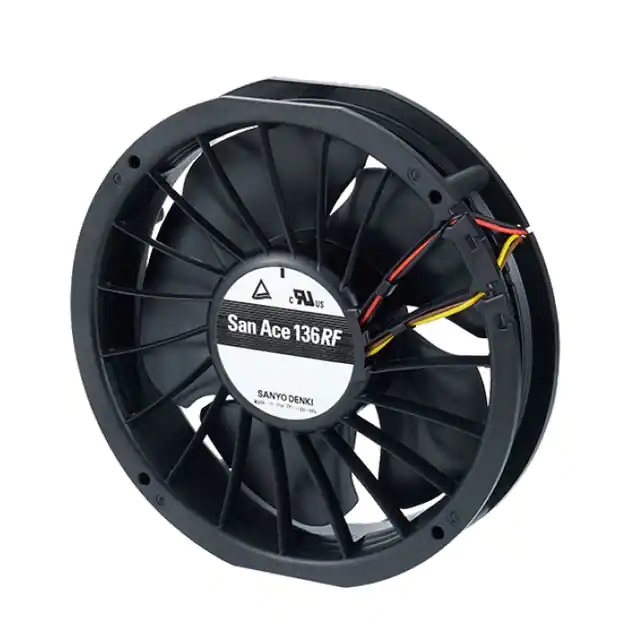

9RFA1312P3H001FAN AXIAL 136X28MM 12VDC WIRE |
10 | - |
|
数据表 |
San Ace 136RF | Bulk | Active | 12VDC | Round - 136mm Dia | 59.4 CFM (1.66m³/min) | 0.740 in H2O (184.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Reversible Flow, Speed Sensor (Tach) | 28.00mm | 44.0dB(A) | 1.92 W | cURus, TUV | 4350 RPM | -13 ~ 158°F (-25 ~ 70°C) | 4 Wire Leads | - |
|
|
CFR5B5X-SCF Blower 141X23.5mm 5VDC/Tach |
10 | - |
|
数据表 |
CFR5B | Tape & Box (TB) | Active | 5VDC | Rectangular - 141mm L x 23mm H | 23.2 CFM (0.650m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 30.0dB | 1.68 W | - | 6500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR5B12X-S-PCF BLOWER 141X23.5mm 12V/Tach/PW |
10 | - |
|
数据表 |
CFR5B | Tape & Box (TB) | Active | 12VDC | Rectangular - 141mm L x 23mm H | 23.2 CFM (0.650m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 30.0dB | 1.68 W | - | 6500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR5B12XCF Blower 141X23.5mm 12VDC |
7 | - |
|
数据表 |
CFR5B | Tape & Box (TB) | Active | 12VDC | Rectangular - 141mm L x 23mm H | 23.2 CFM (0.650m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 30.0dB | 1.68 W | - | 6500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR5B5X-S-PCF Blower 141X23.5mm 5V/Tach/PWM |
7 | - |
|
数据表 |
CFR5B | Tape & Box (TB) | Active | 5VDC | Rectangular - 141mm L x 23mm H | 23.2 CFM (0.650m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 30.0dB | 1.68 W | - | 6500 RPM | -10°C ~ 70°C | - | - |
|
|
CFR5B5XCF Blower 141X23.5mm 5VDC |
6 | - |
|
数据表 |
CFR5B | Tape & Box (TB) | Active | 5VDC | Rectangular - 141mm L x 23mm H | 23.2 CFM (0.650m³/min) | - | Ball | - | Blower, Cross Flow | - | 23.50mm | 30.0dB | 1.68 W | - | 6500 RPM | -10°C ~ 70°C | - | - |
|

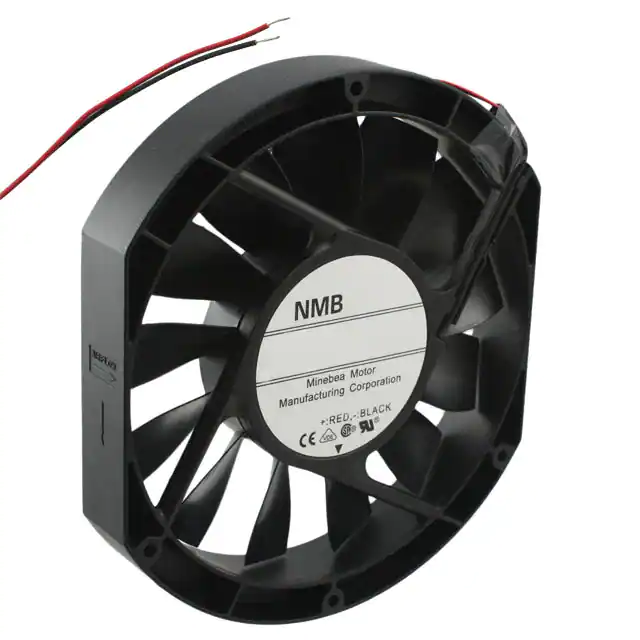

5910PL-05W-B50-L00FAN AXIAL 172X25.4MM 24VDC WIRE |
3 | - |
|
数据表 |
5910PL | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 172mm L x 150mm H | 250.0 CFM (7.00m³/min) | 0.657 in H2O (163.7 Pa) | Ball | 1.1 lbs (500.0 g) | Tubeaxial | - | 25.40mm | 62.5dB | 24 W | CE, CSA, UL, VDE | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
5112N/2FAN TAC OUT 135X38MM 12VDC |
2 | - |
|
数据表 |
5100N | Bulk | Active | 12VDC | Square - 135mm L x 135mm H | 147.0 CFM (4.12m³/min) | - | Ball | 1.4 lbs (635.0 g) | Tubeaxial | Speed Sensor (Tach) | 38mm | 48.0dB(A) | 9.3 W | CE | 2900 RPM | -13 ~ 162°F (-25 ~ 72°C) | 3 Wire Leads | - |
|
|
9RA1448H10011140X38MM 48VDC LOW NOISE RBLS TA |
8 | - |
|
数据表 |
San Ace 140 | Box | Active | 48VDC | Square - 140mm L x 140mm H | 152.0 CFM (4.26m³/min) | 0.370 in H2O (92.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 43.0dB(A) | 6.2 W | cURus, TUV | 3050 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
K1725H12BALA2A-13FAN AXIAL 172X25MM 12VDC WIRE |
9 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 12VDC | Rectangular/Round - 172mm L x 150mm H | 244.9 CFM (6.93m³/min) | 0.650 in H2O (161.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 25.00mm | 60.1dB(A) | 27 W | CE, cUL, UL | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
17001218AFAN AXIAL 48VDC SDD48B1-E3 |
25 | - |
|
数据表 |
Sprite | Box | Active | 48VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.80mm | 47.6dB(A) | 3 W | CE, cUL, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
