直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12038VA-12Q-EA-E0FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 215.7 CFM (6.04m³/min) | 1.150 in H2O (286.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 63.0dB | 27 W | - | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
12038VA-24M-AA-E0FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 141.2 CFM (3.95m³/min) | 0.600 in H2O (149.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 53.0dB | 10.8 W | - | 3800 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
12038VA-24R-AA-E0FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 243.6 CFM (6.82m³/min) | 1.490 in H2O (371.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 66.0dB | 35.52 W | - | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
12038VA-24Q-ET-E0FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 215.7 CFM (6.04m³/min) | 1.150 in H2O (286.5 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 38.00mm | 63.0dB | 25 W | - | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
MC25100V1-000U-A99FAN AXIAL 25X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 25mm L x 25mm H | 3.5 CFM (0.098m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | 0.017 lb (7.71 g) | Tubeaxial | Auto Restart | 10.00mm | 23.0dB(A) | 600 mW | CE, CUR, TUV, UL | 13000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

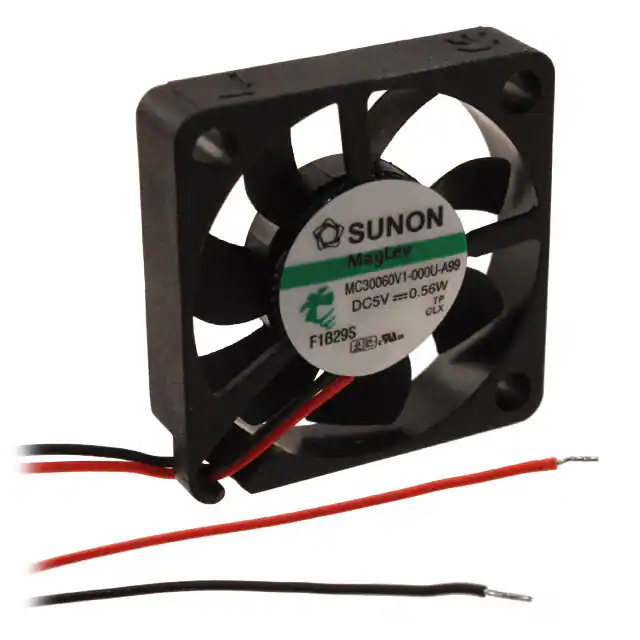

MC30060V1-000U-A99FAN AXIAL 30X6.9MM 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 30mm L x 30mm H | 4.9 CFM (0.137m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | 0.013 lb (5.9 g) | Tubeaxial | Auto Restart | 6.90mm | 28.0dB(A) | 560 mW | CE, CUR, TUV, UL | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MC30100V1-000U-A99FAN AXIAL 30X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Tray | Obsolete | 5VDC | Square - 30mm L x 30mm H | 5.5 CFM (0.154m³/min) | 0.150 in H2O (37.3 Pa) | Vapo-Bearing™ | 0.019 lb (8.62 g) | Tubeaxial | Auto Restart | 10.00mm | 23.0dB(A) | 600 mW | CE, CUR, TUV, UL | 9500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-3828BF-190-406-20FAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 8.4 CFM (0.235m³/min) | 0.470 in H2O (117.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.00mm | 40.6dB(A) | 1.68 W | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0401012H2B-2T2FAN 40X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 7.2 CFM (0.202m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 26.0dB(A) | 720 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
03828DA-12P-AA-00FAN AXIAL 38X28MM 12VDC WIRE |
0 | - |
|
数据表 |
03828DA | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 17.7 CFM (0.496m³/min) | 1.770 in H2O (440.9 Pa) | Ball | - | Tubeaxial | Auto Restart | 28.00mm | 52.0dB | 4.44 W | - | 18000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
12038VA-24L-EL-E0FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 110.2 CFM (3.09m³/min) | 0.321 in H2O (80.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 44.0dB | 7.68 W | - | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
11938MA-24P-GA-00FAN AXIAL 119X38.4MM 24VDC WIRE |
0 | - |
|
数据表 |
11938MA | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 181.2 CFM (5.13m³/min) | 0.860 in H2O (214.2 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.40mm | 59.5dB | 22.4 W | - | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
DC0401012M2B-2T2FAN 40X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 4.8 CFM (0.134m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 21.0dB(A) | 360 mW | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0401012U2B-2T2FAN 40X10MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 9.3 CFM (0.260m³/min) | 0.200 in H2O (49.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 10.00mm | 35.0dB(A) | 1.08 W | CE, cURus, TUV | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
CFM-4010B-250-195-20FAN AXIAL 40X10.5MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 4.2 CFM (0.118m³/min) | 0.070 in H2O (17.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.50mm | 19.5dB(A) | 1.2 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
DC0401512L2B-3T0FAN AXIAL 40X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 6.7 CFM (0.188m³/min) | 0.200 in H2O (49.8 Pa) | Ball | 0.045 lb (20.41 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 28.0dB(A) | 960 mW | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
12038VA-24P-EL-E0FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 215.7 CFM (6.04m³/min) | 1.150 in H2O (286.5 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 63.0dB | 27 W | - | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
12038VA-24N-EA-E0FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 182.6 CFM (51.13m³/min) | 0.830 in H2O (206.7 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 59.0dB | 17.76 W | - | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
BM4520-04W-B40-L00BLOWER 45MM X 20MM 12VDC STD 2 W |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2406VL-05W-B60-BM0FAN 60X15MM 24VDC IP69K |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
