直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G1751H24BALB1-7FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 267.7 CFM (7.58m³/min) | 0.590 in H2O (146.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 51.00mm | 54.1dB(A) | 17.76 W | CE, cUL, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

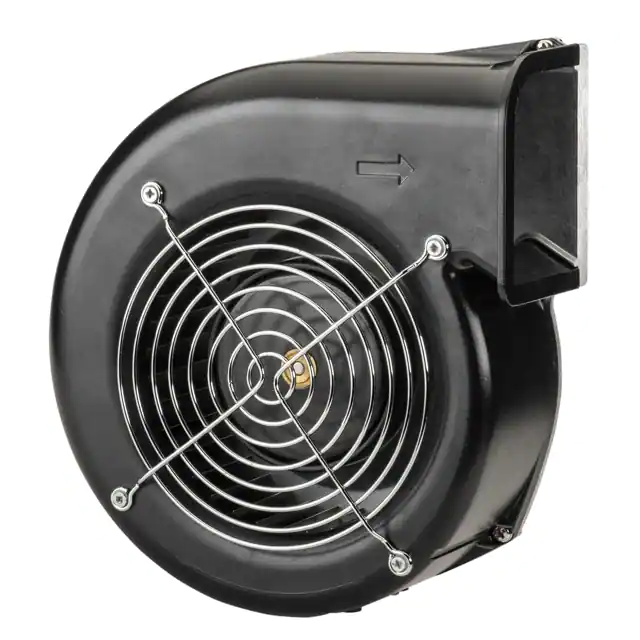

P1970M12BALA2A-38FAN BLOWER 193X72MM 12VDC WIRE |
0 | - |
|
数据表 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 193mm L x 177mm H | 106.4 CFM (3.01m³/min) | 1.400 in H2O (348.7 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 72.00mm | 50.7dB(A) | 28.8 W | CE, cUL, UL | 1500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

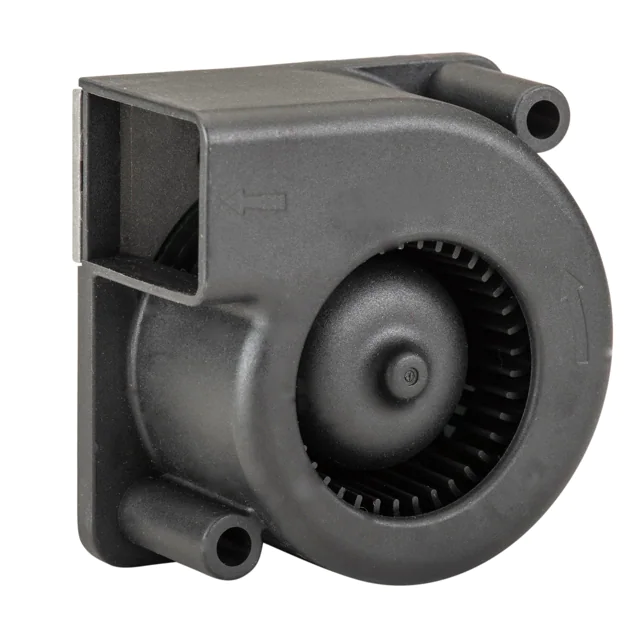

K5331X12BALB2A-37FAN BLOWER 53X31MM 12VDC WIRE |
0 | - |
|
数据表 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 53mm L x 53mm H | 13.6 CFM (0.039m³/min) | 0.990 in H2O (246.6 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 31.00mm | 47.7dB(A) | 7.8 W | CE, cUL, UL | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
G1751Y24BALB1W-7FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 323.0 CFM (9.15m³/min) | 0.850 in H2O (211.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, IP56, Locked Rotor Protection, Polarity Protection | 51.00mm | 58.9dB(A) | 33.6 W | CE, cUL, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
G1751L24BALB1-7FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 193.8 CFM (5.49m³/min) | 0.310 in H2O (77.2 Pa) | Ball | - | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 51.00mm | 45.6dB(A) | 7.2 W | CE, cUL, UL | 2100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

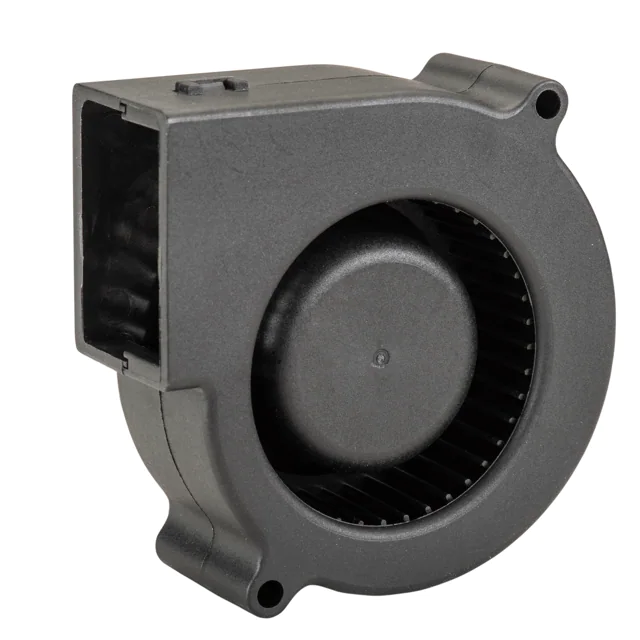

RBH7530B1FAN BLOWER 75X30MM 12VDC WIRE |
0 | - |
|
数据表 |
hiFLOW | Bulk | Active | 12VDC | Rectangular/Round - 75mm L x 75mm H | 13.5 CFM (0.38m³/min) | 0.690 in H2O (171.9 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection | 30.00mm | 43.0dB(A) | 5.4 W | CE, cUL, TUV, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
MF80152V3-1000U-Q9924VDC FAN 80X15MM ALARM/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 15.00mm | 26.5dB(A) | 0.96 W | CCC, CE, cURus, TUV, UKCA | 2800 RPM | - | 4 Wire Leads | - |
|
|
08025SA-24P-EA-D0FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
08025SA | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 47.0 CFM (1.32m³/min) | 0.203 in H2O (50.6 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 34.0dB | 2.64 W | - | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
G1G097-AA05-14FAN |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | 1.7 lbs (780.0 g) | - | - | - | - | - | - | - | - | - | - |
|
|
F6025H05B-RHRFAN AXIAL 60X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 4200 RPM | - | 2 Wire Leads | - |
|

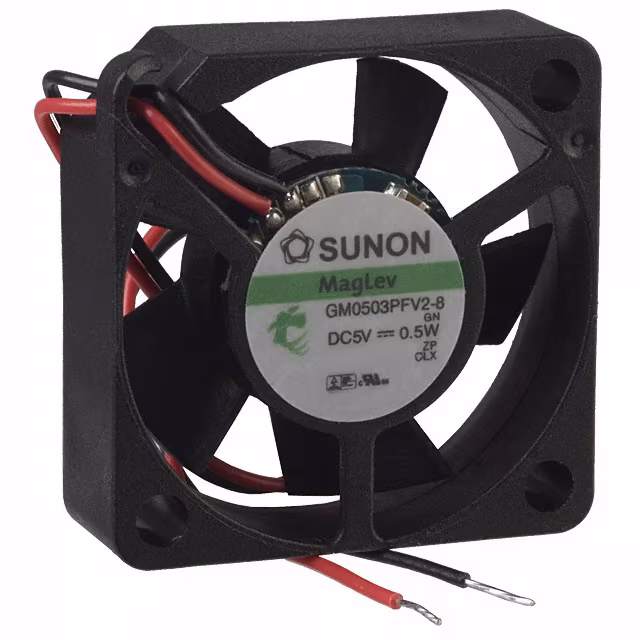

GM0503PFV2-8FAN AXIAL 30X10MM VAPO 5VDC WIRE |
0 | - |
|
数据表 |
GM | - | Obsolete | 5VDC | Square - 30mm L x 30mm H | 4.6 CFM (0.129m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | 0.019 lb (8.62 g) | Tubeaxial | - | 10.00mm | 20.0dB(A) | 450 mW | CE, CUR, TUV, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
12038VA-48R-EL-E0FAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 243.2 CFM (6.81m³/min) | 1.460 in H2O (363.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 38.00mm | 66.0dB | 38.4 W | - | 6400 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
12038VA-24Q-EA-E0FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 215.7 CFM (6.04m³/min) | 1.150 in H2O (286.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 63.0dB | 25 W | - | 5700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6020B-030-257-22FAN AXIAL 60X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
CFM-60B | Box | Active | 5VDC | Square - 60mm L x 60mm H | 11.4 CFM (0.319m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 25.7dB(A) | 700 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-6020B-040-320-22FAN AXIAL 60X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
CFM-60B | Box | Active | 5VDC | Square - 60mm L x 60mm H | 15.2 CFM (0.426m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 32.0dB(A) | 2.05 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-6020B-140-320-22FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.2 CFM (0.426m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 32.0dB(A) | 1.44 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CFM-6020B-130-257-22FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 11.4 CFM (0.319m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 25.7dB(A) | 960 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
DC0601512H2B-3T0FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 23.1 CFM (0.647m³/min) | 0.180 in H2O (44.8 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 35.0dB(A) | 1.44 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0601512J2B-3T0FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.0 CFM (0.420m³/min) | 0.090 in H2O (22.4 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 24.0dB(A) | 720 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0601512L2B-3T0FAN AXIAL 60X15MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 60mm L x 60mm H | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.098 lb (44.45 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 15.00mm | 29.0dB(A) | 960 mW | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
