直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9RA0612H4D01FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
K3G097-AS82-82FAN BLOWER CF 139.5X351MM 26VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 427.0 CFM (11.96m³/min) | 3.280 in H2O (817.0 Pa) | Ball | - | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 351.0mm | - | 740 W | CE, EAC | 4680 RPM | -40 ~ 158°F (-40 ~ 70°C) | 4 Wire Leads with Ferrules | IP69K - Dust Tight, Water Resistant, Waterproof |
|
|
AUB0812LB-AR00FAN AXIAL 80X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AUB | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 27.6 CFM (0.773m³/min) | 0.083 in H2O (20.6 Pa) | Superflo | - | Tubeaxial | Locked Rotor Sensor | 15.00mm | 27.0dB(A) | 1.2 W | CE, CSA, UR, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
D3G160-BF60-11FAN BLOWER |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | 12.1 lbs (5.5 kg) | - | - | - | - | - | - | - | - | - | - |
|
|
RLF35-8/12N/2P-103FAN BLOWER |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3414N/2HPU-621FAN AXIAL |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
8452/2MFAN AXIAL |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
614F/39H-691FAN AXIAL |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4314N/12NFAN AXIAL |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
612N/2HHPR-306FAN AXIAL |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4414MLR-567FAN AXIAL |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
K5331Y24BALB2A-37FAN BLOWER 53X31MM 24VDC WIRE |
0 | - |
|
数据表 |
TITAN | Bulk | Active | 24VDC | Rectangular/Round - 53mm L x 53mm H | 16.3 CFM (0.46m³/min) | 1.430 in H2O (356.2 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 31.00mm | 52.5dB(A) | 12.96 W | CE, cUL, UL | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

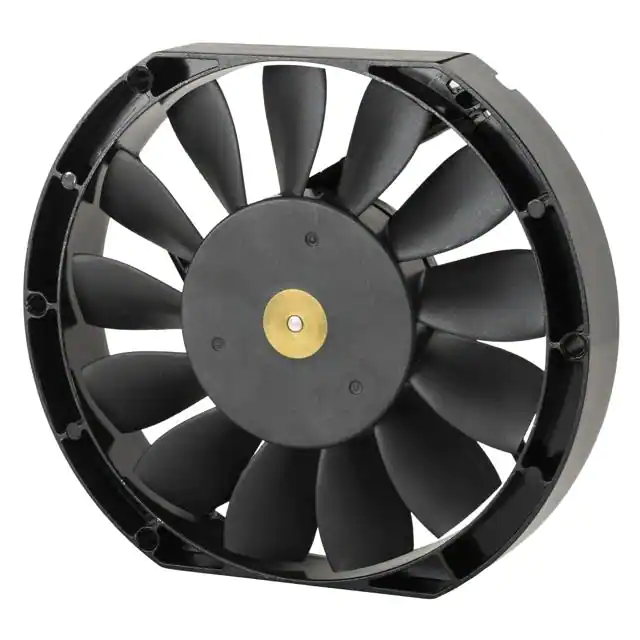

K1725X24BALA2A-13FAN AXIAL 172X25MM 24VDC WIRE |
0 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 272.2 CFM (7.71m³/min) | 0.800 in H2O (199.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 25.00mm | 64.0dB(A) | 34.8 W | CE, cUL, UL | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
P1751H24BALB1W-7FAN AXIAL 172X51MM 24VDC WIRE |
0 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 24VDC | Rectangular/Round - 172mm L x 150mm H | 267.7 CFM (7.58m³/min) | 0.590 in H2O (146.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 51.00mm | 54.1dB(A) | 17.76 W | CE, cUL, UL | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
P1232Y12BALB2A-28FAN BLOWER 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 120mm L x 120mm H | 42.9 CFM (1.22m³/min) | 2.030 in H2O (505.6 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 32.00mm | 61.6dB(A) | 20.4 W | CE, cUL, UL | 5200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
K5331H12BALB2A-37FAN BLOWER 53X31MM 12VDC WIRE |
0 | - |
|
数据表 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 53mm L x 53mm H | 10.9 CFM (0.31m³/min) | 0.630 in H2O (156.9 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 31.00mm | 41.9dB(A) | 4.08 W | CE, cUL, UL | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
RBH1881B4FAN BLOWER 182X82MM 48VDC WIRE |
0 | - |
|
数据表 |
hiFLOW | Bulk | Active | 48VDC | Rectangular/Round - 182mm L x 171mm H | 136.8 CFM (3.87m³/min) | 2.510 in H2O (625.2 Pa) | Ball | - | Blower | Auto Restart, Polarity Protection, Speed Sensor (Tach), PWM Speed Control | 82.00mm | 63.0dB(A) | 52.8 W | cUL, UL | 2000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

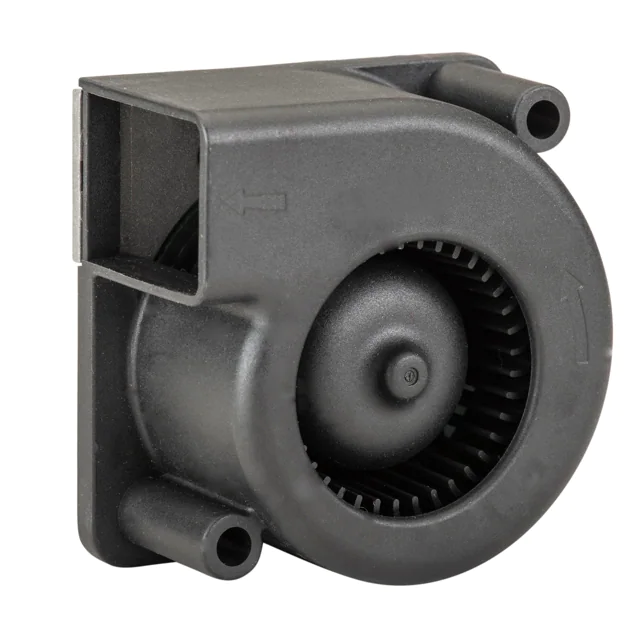

K5331Y12BALB2A-37FAN BLOWER 53X31MM 12VDC WIRE |
0 | - |
|
数据表 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 53mm L x 53mm H | 16.3 CFM (0.46m³/min) | 1.430 in H2O (356.2 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 31.00mm | 52.5dB(A) | 12.6 W | CE, cUL, UL | 12000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

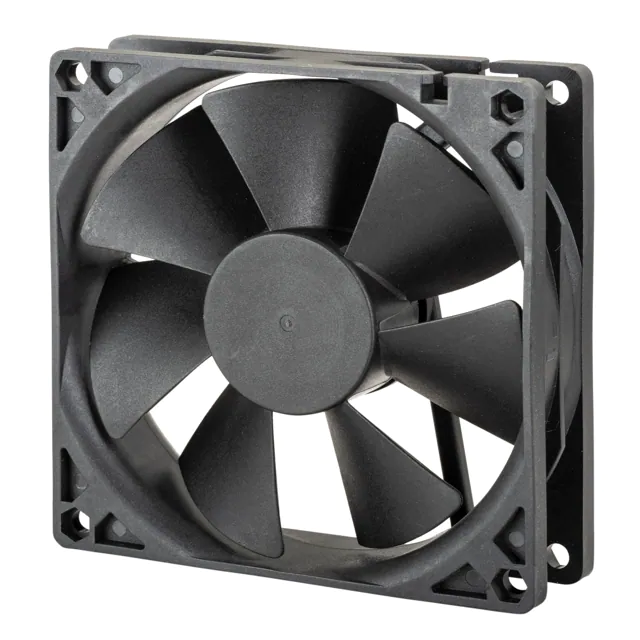

D9225X24BPLB1FAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
Intelligent Motion | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 66.9 CFM (1.90m³/min) | 0.240 in H2O (59.7 Pa) | Ball | - | Tubeaxial | Auto Restart, Constant Speed, Inrush Protection, Locked Rotor Protection, Polarity Protection | 25.00mm | 41.2dB(A) | 3.8 W | CE, cUL, UL | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
P1232H12BALB2A-28FAN BLOWER 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
TITAN | Bulk | Active | 12VDC | Rectangular/Round - 120mm L x 120mm H | 33.0 CFM (0.93m³/min) | 1.200 in H2O (298.9 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 32.00mm | 54.8dB(A) | 11.28 W | CE, cUL, UL | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
