直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BM5115-01W-B30-L00FAN AXIAL |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DC0602024L2B-2T0FAN 60X20MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 14.8 CFM (0.414m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 26.0dB(A) | 2.16 W | CE, cURus | 3600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
DC0702512L2B-2T2FAN 70X25MM 12VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 30.0 CFM (0.840m³/min) | 0.150 in H2O (37.3 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 27.0dB(A) | 840 mW | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
04010KA-05M-AT-00FAN AXIAL |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DC0602024J2B-2T0FAN 60X20MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 13.5 CFM (0.378m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 20.00mm | 24.0dB(A) | 1.68 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

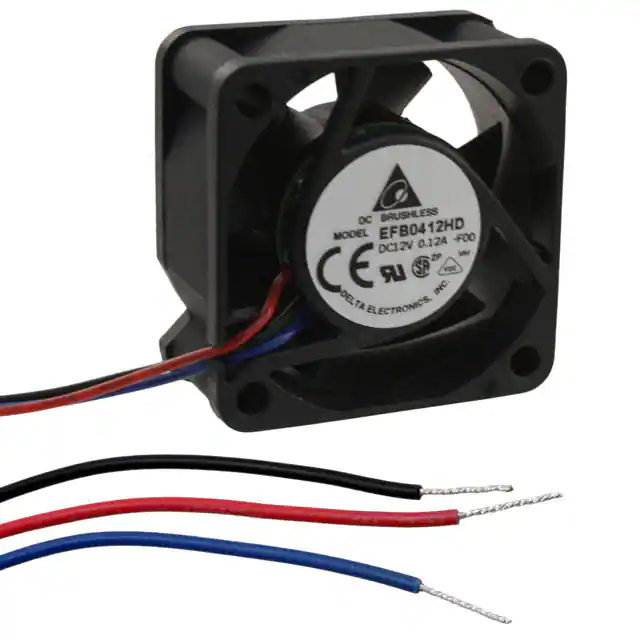

EFB0412HD-F00FAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
EFB | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.5 CFM (0.238m³/min) | 0.303 in H2O (75.5 Pa) | Ball | 0.073 lb (33.11 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 20.00mm | 28.5dB(A) | 960 mW | CE, CSA, UL, VDE | 7600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
3110KL-04W-B50-E00FAN AXIAL |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC35101V2-000U-G99FAN AXIAL 35X10MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® MC | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 6.5 CFM (0.182m³/min) | 0.120 in H2O (29.9 Pa) | Vapo-Bearing™ | 0.024 lb (10.89 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 22.0dB(A) | 520 mW | CE, CUR, TUV, UL | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
F6025E12B-FHRFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
|
04010KA-05M-AA-00FAN AXIAL |
0 | - |
|
数据表 |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
F6025E12B-RSRFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 4600 RPM | - | 2 Wire Leads | - |
|
|
F6025E24B-FHRFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
|
F6025E24B-FSRFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 36.0dB(A) | - | CE, cUL, TUV, UL | 4600 RPM | - | 2 Wire Leads | - |
|
F6025E24B-RHRFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 37.0dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
|
F6025H05B-RSRFAN AXIAL 60X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 31.0dB(A) | - | CE, cUL, TUV, UL | 3800 RPM | - | 2 Wire Leads | - |
|
|
F6025H12B-FHRFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 4200 RPM | - | 2 Wire Leads | - |
|
|
F6025H12B-FSRFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 31.0dB(A) | - | CE, cUL, TUV, UL | 3800 RPM | - | 2 Wire Leads | - |
|
|
F6025H12B-RSRFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 31.0dB(A) | - | CE, cUL, TUV, UL | 3800 RPM | - | 2 Wire Leads | - |
|
|
F6025H24B-FHRFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 4200 RPM | - | 2 Wire Leads | - |
|
|
F6025H24B-FSRFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.160 in H2O (39.8 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 31.0dB(A) | - | CE, cUL, TUV, UL | 3800 RPM | - | 2 Wire Leads | - |
