直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.GN.jpg)
|

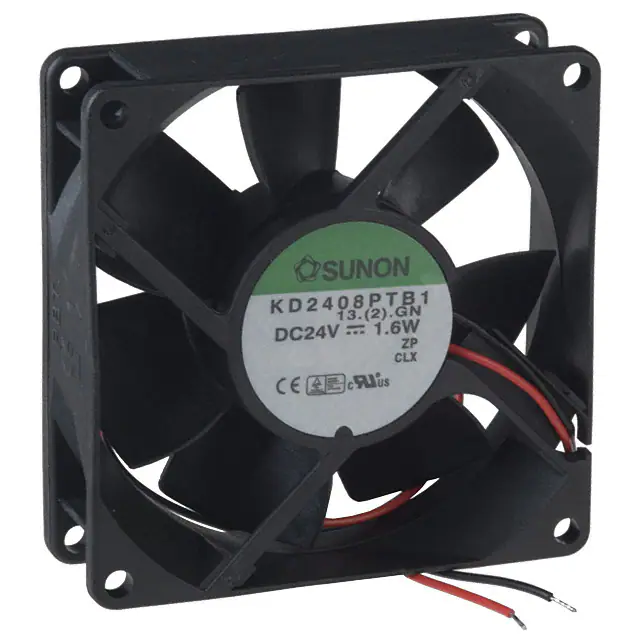

KD2408PTB1.13.(2).GNFAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.190 in H2O (47.3 Pa) | Ball | 0.183 lb (83.01 g) | Tubeaxial | - | 25.00mm | 35.0dB(A) | 1.8 W | CE, CUR, TUV, UL | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
KD1204PKB1.(2).GNFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 8.9 CFM (0.249m³/min) | 0.210 in H2O (52.3 Pa) | Ball | - | Tubeaxial | - | 20.00mm | 26.5dB(A) | 1 W | - | 7200 RPM | - | 2 Wire Leads | - |
|
|
KD1204PKB2.(2).GNFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 7.7 CFM (0.216m³/min) | 0.160 in H2O (40.0 Pa) | Ball | - | Tubeaxial | - | 20.00mm | 22.0dB(A) | 700 mW | - | 6200 RPM | - | 2 Wire Leads | - |
|
|
KD1204PKB3.(2).GNFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 6.3 CFM (0.176m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | - | 20.00mm | 19.0dB(A) | 500 mW | - | 5200 RPM | - | 2 Wire Leads | - |
|
|
KD2409PTB1.13.(2).GNFAN AXIAL 92X25MM 24VDC WIRE |
0 | - |
|
数据表 |
KD | Bulk | Obsolete | 24VDC | Square - 92mm L x 92mm H | - | - | Ball | - | Tubeaxial | - | 25.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
U51DL-024KK-4FAN BLOWER 65X49.5MM 24VDC WIRE |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 65mm L x 50mm H | 18.0 CFM (0.504m³/min) | 22.482 in H2O (5600.0 Pa) | - | - | Blower | Speed Sensor (Tach), Speed Control (SP) | 49.50mm | 66.0dB(A) | 43 W | CE | 46000 RPM | -4 ~ 131°F (-20 ~ 55°C) | 4 Wire Leads | IP40 |
|
|
MF20100V2-1000U-Q995VDC FAN 20X10MM ALARM/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 1.5 CFM (0.042m³/min) | 0.200 in H2O (49.8 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 10.00mm | 20.0dB(A) | 0.4 W | CCC, CE, cURus, TUV, UKCA | 14000 RPM | - | 4 Wire Leads | - |
|
|
MF20100V1-1000U-Q995VDC FAN 20X10MM ALARM/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 20mm L x 20mm H | 1.9 CFM (0.053m³/min) | 0.290 in H2O (72.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 10.00mm | 25.0dB(A) | 0.53 W | CCC, CE, cURus, TUV, UKCA | 16500 RPM | - | 4 Wire Leads | - |
|
|
BFB0305LA-CR00FAN BLOWER 30X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 1.1 CFM (0.031m³/min) | 0.144 in H2O (35.9 Pa) | Ball | 0.023 lb (10.43 g) | Blower | Locked Rotor Sensor | 10.00mm | 24.0dB(A) | 450 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
D601P-024KM-4FAN AXIAL 60MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Round - 60mm Dia | - | 3.332 in H2O (830.0 Pa) | - | - | Tubeaxial | PWM Control, IDE Interface | - | - | - | - | - | - | - | - |
|

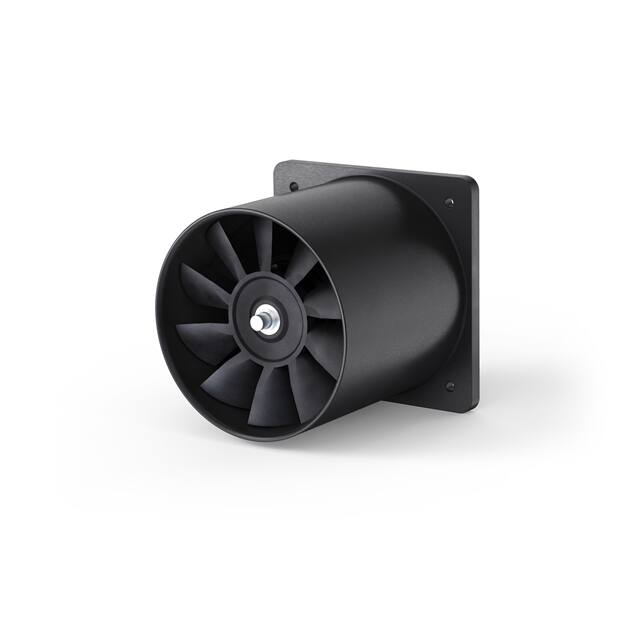

D603P-024KM-4FAN AXIAL 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | - | - | - | - | - | Tubeaxial | - | - | - | - | - | - | - | - | - |
|
U51DL-012KK-5FAN BLOWER 65X34.5MM 12VDC RECT |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Rectangular/Rounded - 65mm L x 50mm H | 14.5 CFM (0.406m³/min) | 20.876 in H2O (5200.0 Pa) | Ball | - | Blower | Motor Winding | 34.50mm | 58.0dB(A) | - | CE | 38500 RPM | -4 ~ 104°F (-20 ~ 40°C) | 3 Position Rectangular Connector | - |
|
D341P-024KM-4FAN AXIAL 36MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Round - 36mm Dia | - | 2.686 in H2O (669.0 Pa) | - | - | Tubeaxial | PWM Control, IDE Interface | - | - | - | - | - | - | - | - |
|
D484P-024KM-4FAN AXIAL 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | - | - | - | - | - | Tubeaxial | - | - | - | - | - | - | - | - | - |
|
|
BFB0305MA-CR00FAN BLOWER 30X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 1.2 CFM (0.034m³/min) | 0.206 in H2O (51.3 Pa) | Ball | 0.023 lb (10.43 g) | Blower | Locked Rotor Sensor | 10.00mm | 26.0dB(A) | 600 mW | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
D343P-024KM-4FAN AXIAL 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | - | - | - | - | - | Tubeaxial | - | - | - | - | - | - | - | - | - |
|
|
BFB03505HHA-CF00FAN BLOWER 35X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 2.1 CFM (0.059m³/min) | 0.443 in H2O (110.3 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 10.00mm | 31.0dB(A) | 1.15 W | CE, cURus, TUV | 8500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
D481P-024KM-4FAN AXIAL 48MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Round - 48mm Dia | - | 3.774 in H2O (940.0 Pa) | - | - | Tubeaxial | PWM Control, IDE Interface | - | - | - | - | - | - | - | - |
|
D301P-006KH-4FAN AXIAL 30MM 6VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 6VDC | Round - 30mm Dia | - | 1.365 in H2O (340.0 Pa) | - | - | Tubeaxial | PWM Control, IDE Interface | - | - | - | - | - | - | - | - |
|
U51DX-012KK-5FAN BLOWER 65MM 12VDC RECT CONN |
0 | - |
|
数据表 |
- | Bulk | Active | 12VDC | Rectangular/Rounded - 65mm L x 50mm H | 15.5 CFM (0.434m³/min) | 19.696 in H2O (4906.0 Pa) | Ball | - | Blower | Hall Sensor, Motor Winding | - | 62.0dB(A) | - | CE | 40676 RPM | -4 ~ 104°F (-20 ~ 40°C) | 8 Position Rectangular Connector | - |
