直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASFP82372FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
ASFP | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 30.4 CFM (0.851m³/min) | 0.086 in H2O (21.5 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 22.0dB(A) | 960 mW | CE, cURus | 2300 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
ASFP60372FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
ASFP | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 19.8 CFM (0.554m³/min) | 0.184 in H2O (46.0 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 27.5dB(A) | 1.44 W | CE, cURus | 4000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
ASFP80371FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
ASFP | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 41.3 CFM (1.16m³/min) | 0.151 in H2O (37.5 Pa) | Ball | - | Tubeaxial | - | 25.00mm | 30.0dB(A) | 1.68 W | CE, cURus | 3100 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
F6025L05B-RSFAN AXIAL 60X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Obsolete | 5VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 24.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
F6025L12B-RSFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 14.0 CFM (0.392m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 24.0dB(A) | - | CE, cUL, TUV, UL | 2800 RPM | - | 2 Wire Leads | - |
|
|
F6025M12B-RSFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 17.0 CFM (0.476m³/min) | 0.130 in H2O (32.4 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 27.0dB(A) | - | CE, cUL, TUV, UL | 3300 RPM | - | 2 Wire Leads | - |
|
|
F6025X24B-RSFAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Auto Restart, Locked Rotor Protection | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 2 Wire Leads | - |
|

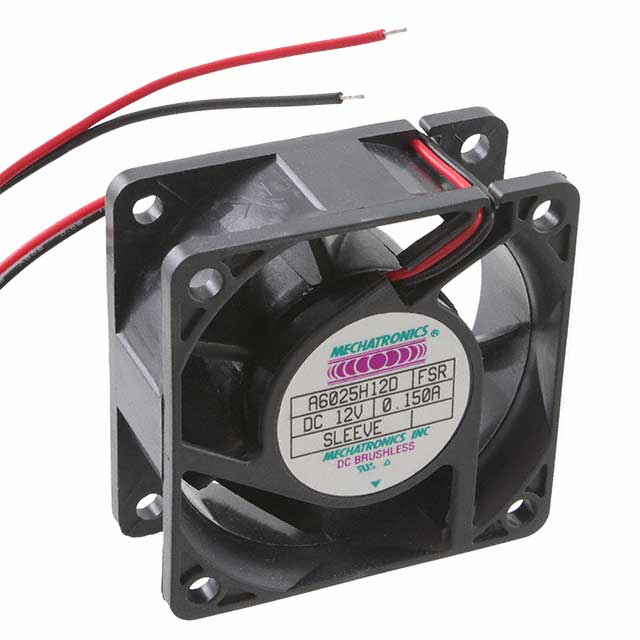

A6025H12D-FSRFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
A6025 | Bulk | Obsolete | 12VDC | Square - 60mm L x 60mm H | 20.0 CFM (0.560m³/min) | 0.170 in H2O (42.3 Pa) | Sleeve | 0.156 lb (70.76 g) | Tubeaxial | Auto Restart, Locked Rotor Sensor | 25.00mm | 31.0dB(A) | - | CE, cUL, TUV, UL | 3800 RPM | - | 2 Wire Leads | - |
|
G4020E24B-RSRFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 11.7 CFM (0.328m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.00mm | 32.0dB(A) | - | CE, cUL, TUV, UL | 8000 RPM | - | 2 Wire Leads | - |
|
G4020L05B-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.00mm | 23.0dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
|
G4020L24B-RSRFAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.110 in H2O (27.4 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.00mm | 23.0dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 2 Wire Leads | - |
|
|
G4020M05B-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 9.0 CFM (0.252m³/min) | 0.150 in H2O (37.3 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.00mm | 26.0dB(A) | - | CE, cUL, TUV, UL | 6000 RPM | - | 2 Wire Leads | - |
|
G4020S05B-RSRFAN AXIAL 40X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.00mm | 21.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
G4020S12B-RSRFAN AXIAL 40X20MM 12VDC WIRE |
0 | - |
|
数据表 |
G4020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 6.0 CFM (0.168m³/min) | 0.070 in H2O (17.4 Pa) | Ball | 0.062 lb (28.12 g) | Tubeaxial | Thermal Overload Protector (TOP) | 20.00mm | 21.0dB(A) | - | CE, cUL, TUV, UL | 4000 RPM | - | 2 Wire Leads | - |
|
|
MF80152V2-1000U-H9924VDC FAN 80X15MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 15.00mm | 29.9dB(A) | 1.32 W | CCC, CE, cURus, TUV, UKCA | 3100 RPM | - | 3 Wire Leads | - |
|
|
MF80152V3-1000U-H9924VDC FAN 80X15MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 15.00mm | 26.5dB(A) | 0.96 W | CCC, CE, cURus, TUV, UKCA | 2800 RPM | - | 3 Wire Leads | - |
|
|
MF80152V2-1000U-F9924VDC FAN 80X15MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.00mm | 29.9dB(A) | 1.32 W | CCC, CE, cURus, TUV, UKCA | 3100 RPM | - | 3 Wire Leads | - |
|
|
MF80152V3-1000U-F9924VDC FAN 80X15MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.00mm | 26.5dB(A) | 0.96 W | CCC, CE, cURus, TUV, UKCA | 2800 RPM | - | 3 Wire Leads | - |
|
|
MF80152V1-1000U-H9924VDC FAN 80X15MM PWM |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, PWM Control | 15.00mm | 32.9dB(A) | 1.64 W | CCC, CE, cURus, TUV, UKCA | 3500 RPM | - | 3 Wire Leads | - |
|
|
MF80152V1-1000U-F9924VDC FAN 80X15MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.00mm | 32.9dB(A) | 1.64 W | CCC, CE, cURus, TUV, UKCA | 3500 RPM | - | 3 Wire Leads | - |
