直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-8025C-230-330-22FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80C | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.130 in H2O (32.4 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 2.64 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
C9225H12BPLB2-7FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
C | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 55.2 CFM (1.55m³/min) | 0.177 in H2O (44.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 35.7dB(A) | 2.67 W | CE, cURus | 3000 RPM | - | 2 Wire Leads | - |
|
CFM-5020B-160-385-22FAN AXIAL 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 16.2 CFM (0.454m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 38.5dB(A) | 2.4 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
U85MX-024KX-5FAN BLOWER 79.1X55.4MM 21VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 21VDC | Rectangular/Rounded - 79.1mm L x 76.8mm H | 30.4 CFM (0.851m³/min) | 49.38 in H2O (12300.0 Pa) | - | - | Blower | Hall Sensor, Motor Winding | 55.40mm | 77.0dB(A) | 183 W | CE | 39000 RPM | -4 ~ 113°F (-20 ~ 45°C) | 8 Position Rectangular Connector | IP40 |
|
|
CFM-8025C-235-364-22FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80C | Box | Active | 24VDC | Square - 80mm L x 80mm H | 43.3 CFM (1.21m³/min) | 0.170 in H2O (42.3 Pa) | omniCOOL™ Magnetic Sleeve | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 36.4dB(A) | 3.6 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
U85HL-024KH-4FAN BLOWER 79.1X102MM 24VDC RECT |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 79.1mm L x 76.8mm H | 31.1 CFM (0.871m³/min) | 51.789 in H2O (12900.0 Pa) | - | - | Blower | Locked Rotor Protection, Speed Sensor (Tach), Speed Control (SP), NTC Thermistor | 102.00mm | 56.0dB(A) | 190 W | CE | 37200 RPM | 32 ~ 113°F (0 ~ 45°C) | 6 Position Rectangular Connector | IP40 |
|
CBM-5015BF-155-391-22DC BLOWER, 51.7 X 51.25 X 14.9 M |
0 | - |
|
数据表 |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 3.5 CFM (0.098m³/min) | 0.670 in H2O (166.9 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.00mm | 39.2dB(A) | 1.8 W | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
CBM-4020B-160-367-22DC BLOWER, 40 MM SQUARE, 20 MM, |
0 | - |
|
数据表 |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 2.7 CFM (0.076m³/min) | 0.190 in H2O (47.3 Pa) | Ball | - | Blower | Auto Restart, PWM Control, Speed Sensor (Tach) | 20.00mm | 36.7dB(A) | 0.96 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
MF17080V2-1000U-G995VDC FAN 17X8MM ALARM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 0.700 CFM (0.020m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 8.00mm | 14.2dB(A) | 0.33 W | CCC, CE, cURus, TUV, UKCA | 16500 RPM | - | 3 Wire Leads | - |
|
|
MF17080V1-1000U-G995VDC FAN 17X8MM ALARM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 17mm L x 17mm H | 0.870 CFM (0.025m³/min) | 0.280 in H2O (69.7 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 8.00mm | 21.5dB(A) | 0.47 W | CCC, CE, cURus, TUV, UKCA | 21000 RPM | - | 3 Wire Leads | - |
|
BFB0305LA-CFAN BLOWER 30X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Active | 5VDC | Square - 30mm L x 30mm H | 1.1 CFM (0.031m³/min) | 0.144 in H2O (35.9 Pa) | Ball | 0.023 lb (10.43 g) | Blower | Locked Rotor Protection | 10.00mm | 24.0dB(A) | 450 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
BFB0312LA-CFAN BLOWER 30X10MM 12VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Active | 12VDC | Square - 30mm L x 30mm H | 1.1 CFM (0.031m³/min) | 0.144 in H2O (35.9 Pa) | Ball | 0.023 lb (10.43 g) | Blower | Locked Rotor Protection | 10.00mm | 24.0dB(A) | 480 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB03505LA-CFAN BLOWER 35X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Active | 5VDC | Square - 35mm L x 35mm H | 1.3 CFM (0.036m³/min) | 0.163 in H2O (40.6 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Protection | 10.00mm | 24.0dB(A) | 450 mW | CE, cURus, TUV | 5500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
BFB03505MA-CFAN BLOWER 35X10MM 5VDC WIRE |
0 | - |
|
数据表 |
BFB | Box | Active | 5VDC | Square - 35mm L x 35mm H | 1.6 CFM (0.045m³/min) | 0.236 in H2O (58.8 Pa) | Ball | 0.025 lb (11.34 g) | Blower | Locked Rotor Protection | 10.00mm | 26.0dB(A) | 600 mW | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
U65ML-024KS-5FAN BLOWER 73.7X44.6MM 24VDC |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Rectangular/Rounded - 73.7mm L x 66.4mm H | 8.8 CFM (0.246m³/min) | 12.445 in H2O (3100.0 Pa) | - | - | Blower | Motor Winding | 44.60mm | 47.0dB(A) | 20 W | CE | 31000 RPM | -4 ~ 122°F (-20 ~ 50°C) | 3 Position Rectangular Connector | IP10 |
|
R1238Y24BPLB2-7FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
R | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 167.7 CFM (4.70m³/min) | 0.706 in H2O (175.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 53.0dB(A) | 14.73 W | CE, cURus | 4200 RPM | - | 2 Wire Leads | - |
|

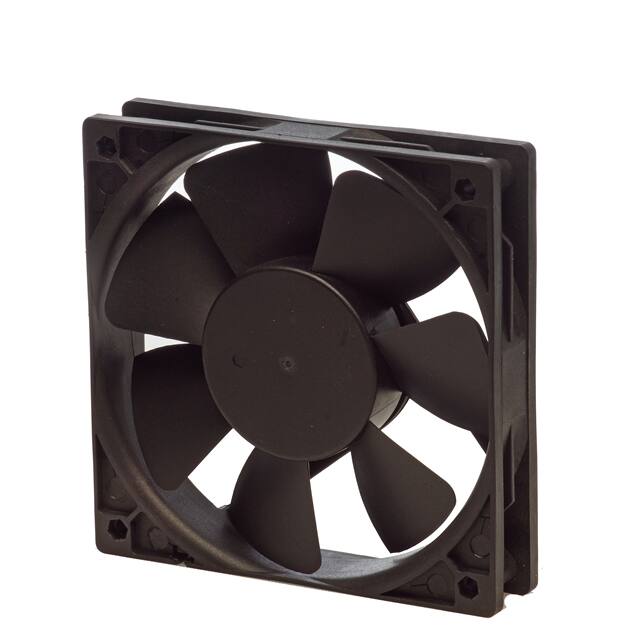

R1225Y12BPLB2-7FAN AXIAL 120X25MM 12VDC WIRE |
0 | - |
|
数据表 |
R | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 129.4 CFM (3.62m³/min) | 0.534 in H2O (133.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 25.00mm | 51.0dB(A) | 8.64 W | CE, cURus | 4200 RPM | - | 2 Wire Leads | - |
|
|
CFM-4015B-1105-365-22DC AXIAL FAN, 40 MM SQUARE, 15 M |
0 | - |
|
数据表 |
CFM-40B | Box | Active | 12VDC | Square - 40mm L x 40mm H | 12.3 CFM (0.344m³/min) | 0.560 in H2O (139.5 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.10mm | 36.5dB(A) | 2.52 W | CE, cURus, TUV | 10500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
DC0802512I2B-2T0FAN AXIAL 80X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | 0.188 lb (85.28 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 35.0dB(A) | 2.4 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
04010SA-12L-ATD-0FAN AXIAL 40X10MM 12VDC WIRE |
0 | - |
|
数据表 |
04010SA | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 4.9 CFM (0.137m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 21.5dB | 480 mW | - | 5500 RPM | - | 3 Wire Leads | - |
