直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF60252V3-1000U-G9924VDC FAN 60X25MM ALARM |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 16.7dB(A) | 0.53 W | CCC, CE, cURus, TUV, UKCA | 3100 RPM | - | 3 Wire Leads | - |
|
|
MF60252VX-1000U-G9924VDC FAN 60X25MM ALARM |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 27.0 CFM (0.756m³/min) | 0.310 in H2O (77.2 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 31.2dB(A) | 1.92 W | CCC, CE, cURus, TUV, UKCA | 5200 RPM | - | 3 Wire Leads | - |
|
|
MF60252V2-1000U-G9924VDC FAN 60X25MM ALARM |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 19.5 CFM (0.546m³/min) | 0.150 in H2O (37.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 22.0dB(A) | 0.72 W | CCC, CE, cURus, TUV, UKCA | 3800 RPM | - | 3 Wire Leads | - |
|
CFM-6020B-140-320-20FAN AXIAL 60X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60B | Box | Active | 12VDC | Square - 60mm L x 60mm H | 15.2 CFM (0.426m³/min) | 0.120 in H2O (29.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 32.0dB(A) | 1.44 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-8025B-230-330-20FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-80B | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.1 CFM (1.04m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 33.0dB(A) | 2.64 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-8025B-125-290-20FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 30.9 CFM (0.865m³/min) | 0.090 in H2O (22.4 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.00mm | 29.0dB(A) | 1.44 W | CE, cURus, TUV | 2500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

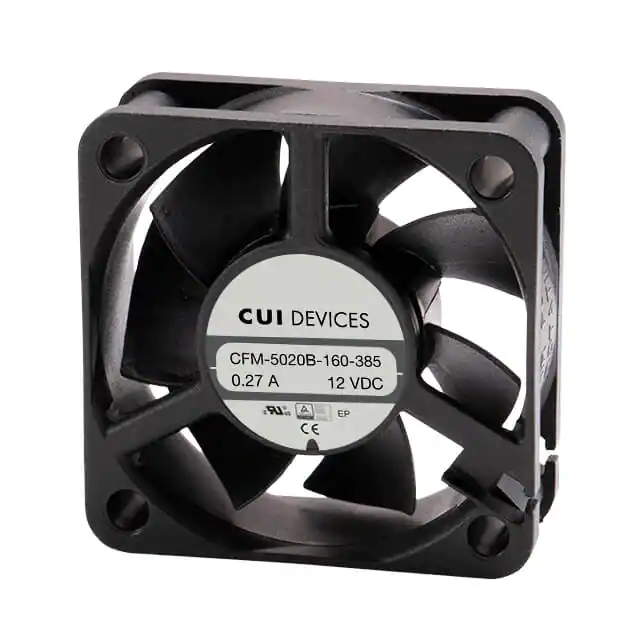

CFM-5020B-160-385-20FAN AXIAL 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-50B | Box | Active | 12VDC | Square - 50mm L x 50mm H | 16.2 CFM (0.454m³/min) | 0.240 in H2O (59.8 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 38.5dB(A) | 2.4 W | CE, cURus, TUV | 6000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CFM-4020BF-275-306-20FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-40BF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 9.4 CFM (0.263m³/min) | 0.250 in H2O (62.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 20.00mm | 30.6dB(A) | 1.44 W | CE, cURus, TUV | 7500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-5020B-245-306-20DC AXIAL FAN, 50 MM SQUARE, 20 M |
0 | - |
|
数据表 |
CFM-50B | Box | Active | 24VDC | Square - 50mm L x 50mm H | 13.6 CFM (0.381m³/min) | 0.140 in H2O (34.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 19.80mm | 30.6dB(A) | 0.96 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-5020B-230-217-20DC AXIAL FAN, 50 MM SQUARE, 20 M |
0 | - |
|
数据表 |
CFM-50B | Box | Active | 24VDC | Square - 50mm L x 50mm H | 9.1 CFM (0.255m³/min) | 0.060 in H2O (14.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 19.80mm | 21.7dB(A) | 0.72 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
OD4006-05MBFAN AXIAL 40X6MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD4006 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD4006-12LBFAN AXIAL 40X6MM BALL 12VDC WIRE |
0 | - |
|
数据表 |
OD4006 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | - | 6.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
|
OD8020-05MBFAN AXIAL 80X20MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD8020 | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | - | 20.00mm | - | - | - | - | - | 2 Wire Leads | - |
|
CFM-2510B-1100-218-22FAN AXIAL 25X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-25B | Box | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.00mm | 21.8dB(A) | 960 mW | CE, cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
3110KL-04W-B20-D00FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
3110KL | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | - | 25.00mm | 25.0dB | 1.32 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3110KL-04W-B30-G00FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 31.8 CFM (0.890m³/min) | 0.106 in H2O (26.4 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | - | 25.00mm | 28.0dB | 2.04 W | CE, CSA, UL, VDE | 2700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
3110KL-05W-B20-G00FAN AXIAL 80X25MM 24VDC WIRE |
0 | - |
|
数据表 |
3110KL | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 28.2 CFM (0.790m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 0.209 lb (94.8 g) | Tubeaxial | - | 25.00mm | 25.0dB | 1.68 W | CE, CSA, UL, VDE | 2400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

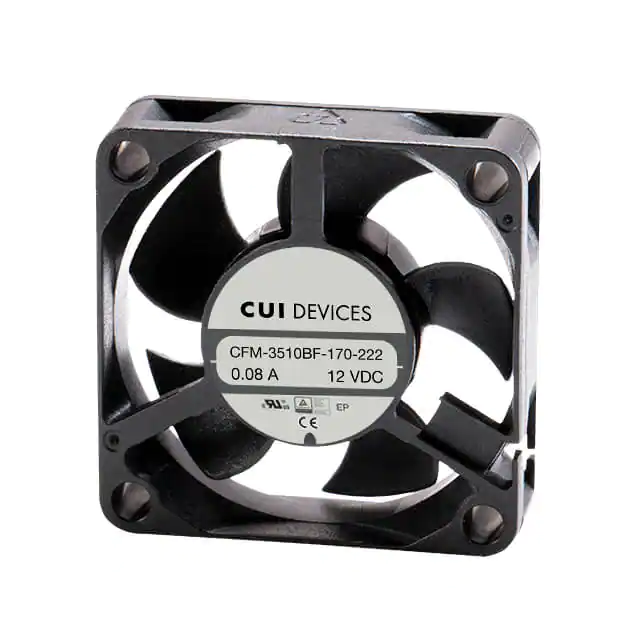

CFM-3510BF-170-222-20FAN AXIAL 35X10.3MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-35BF | Box | Active | 12VDC | Square - 35mm L x 35mm H | 4.6 CFM (0.129m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.30mm | 22.3dB(A) | 1.08 W | CE, cURus, TUV | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
7214N/19FAN AXIAL 150X55MM 24VDC WIRE |
0 | - |
|
数据表 |
7200N | Bulk | Active | 24VDC | Round - 150mm Dia | 212.0 CFM (5.94m³/min) | 0.642 in H2O (159.9 Pa) | Ball | - | Tubeaxial | - | 55.00mm | 53.0dB(A) | 12 W | CE, CSA, EAC, UL, VDE | 3050 RPM | -13 ~ 162°F (-25 ~ 72°C) | 3 Wire Leads | - |
|
|
B1232L24B2-BSFAN BLOWER 120X32MM 24VDC WIRE |
0 | - |
|
数据表 |
B1232 | Bulk | Discontinued at Digi-Key | 24VDC | Square/Rounded - 120mm L x 120mm H | 21.0 CFM (0.588m³/min) | 0.330 in H2O (82.2 Pa) | Ball | 0.706 lb (320.24 g) | Blower | Locked Rotor Sensor, Thermal Overload Protector (TOP) | 32.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 2100 RPM | - | 3 Wire Leads | - |
