直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9SG1212G101FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 48 W | CSA, TUV, UL | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|

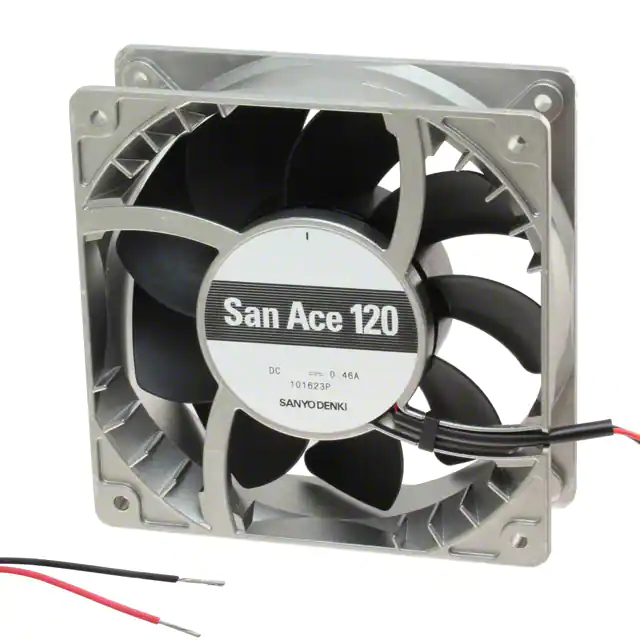

9SG1212G102FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 64.0dB(A) | 48 W | CSA, TUV, UL | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|

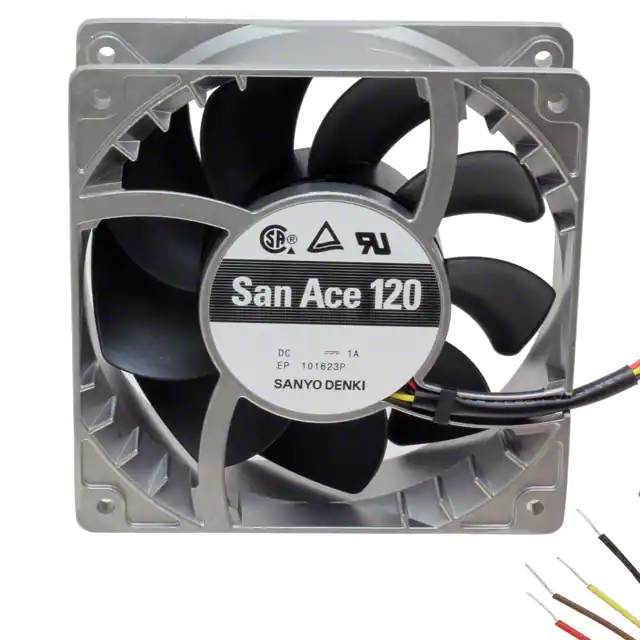

9SG1212P1G01FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 48 W | CSA, TUV, UL | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9SG1224G101FAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 48 W | CSA, TUV, UL | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9SG1224G102FAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 64.0dB(A) | 48 W | CSA, TUV, UL | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9SG1224H102FAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 142.0 CFM (3.98m³/min) | 0.510 in H2O (127.0 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 48.0dB(A) | 11 W | CSA, TUV, UL | 3400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9SG1224P1G01FAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 48 W | CSA, TUV, UL | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9SG1248G101FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 48 W | CSA, TUV, UL | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9SG1248P1G01FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 260.0 CFM (7.28m³/min) | 1.370 in H2O (341.2 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 48 W | CSA, TUV, UL | 6000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|

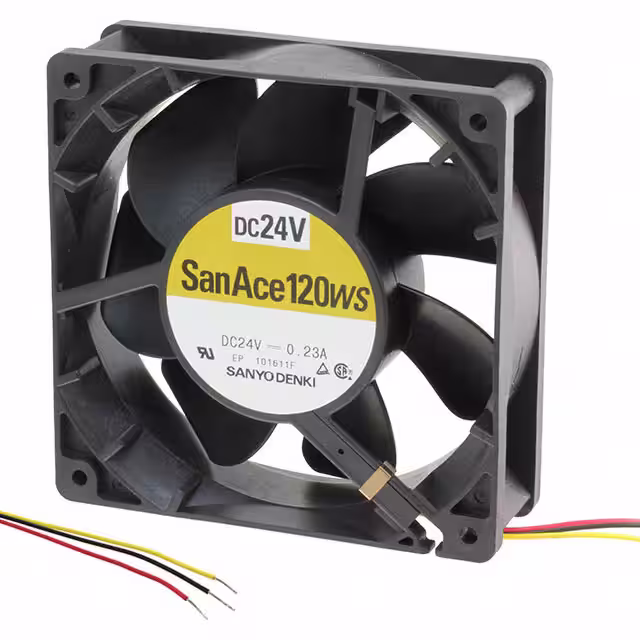

9WS1224H101FAN AXIAL 119X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120WS | Box | Obsolete | 24VDC | Square - 119mm L x 119mm H | 102.4 CFM (2.87m³/min) | 0.272 in H2O (67.7 Pa) | Ball | 0.573 lb (259.91 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 39.0dB(A) | 5.52 W | CSA, TUV, UL | 2600 RPM | -4 ~ 140°F (-20 ~ 60°C) | 3 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
CFM-9225-13-10FAN AXIAL 92X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92 | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 96.1 CFM (2.69m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.212 lb (96.16 g) | Tubeaxial | Auto Restart | 25.40mm | 49.8dB(A) | 6 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CFM-6015-13-20FAN AXIAL 60X15.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60 | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.089 lb (40.37 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.40mm | 39.0dB(A) | 2.64 W | CE, cURus, TUV | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-6015-13-22FAN AXIAL 60X15.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60 | Tray | Obsolete | 12VDC | Square - 60mm L x 60mm H | 27.5 CFM (0.770m³/min) | 0.230 in H2O (57.3 Pa) | Ball | 0.089 lb (40.37 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 15.40mm | 39.0dB(A) | 2.64 W | CE, cURus, TUV | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
CFM-7010-13-20FAN AXIAL 70X10.6MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-70 | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 31.1 CFM (0.871m³/min) | 0.160 in H2O (40.0 Pa) | Ball | 0.083 lb (37.65 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.60mm | 40.6dB(A) | 3.24 W | CE, cURus, TUV | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-7010-13-22FAN AXIAL 70X10.6MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-70 | Tray | Obsolete | 12VDC | Square - 70mm L x 70mm H | 31.1 CFM (0.871m³/min) | 0.160 in H2O (40.0 Pa) | Ball | 0.083 lb (37.65 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 10.60mm | 40.6dB(A) | 3.24 W | CE, cURus, TUV | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
CFM-8015-13-20FAN AXIAL 80X15.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-80 | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 44.0 CFM (1.23m³/min) | 0.160 in H2O (40.0 Pa) | Ball | 0.132 lb (59.87 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 15.40mm | 39.8dB(A) | 2.88 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-9225-13-20FAN AXIAL 92X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92 | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 96.1 CFM (2.69m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.212 lb (96.16 g) | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 25.40mm | 49.8dB(A) | 6 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-9225-13-22FAN AXIAL 92X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-92 | Tray | Obsolete | 12VDC | Square - 92mm L x 92mm H | 96.1 CFM (2.69m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.212 lb (96.16 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 49.8dB(A) | 6 W | CE, cURus, TUV | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
AFC0912DB-F00FAN AXIAL 92X15MM 12VDC WIRE |
0 | - |
|
数据表 |
AFC | Box | Obsolete | 12VDC | Square - 92mm L x 92mm H | 51.5 CFM (1.44m³/min) | 0.156 in H2O (38.8 Pa) | Ball | 0.154 lb (69.85 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 15.00mm | 41.5dB(A) | 3.72 W | CE, CSA, UL, VDE | 3300 RPM | 14 ~ 140°F (-10 ~ 60°C) | 4 Wire Leads | - |
|
THB0848BEB51FAN AXIAL 80X38MM 48VDC WIRE |
0 | - |
|
数据表 |
THB | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 127.5 CFM (3.57m³/min) | 4.543 in H2O (1132.0 Pa) | Ball | 0.434 lb (196.86 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 70.0dB(A) | 33.6 W | CE, cURus, TUV | 15000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
