直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF35100V2-1000U-Q995VDC FAN 35X10MM ALARM/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 6.5 CFM (0.182m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 10.00mm | 21.8dB(A) | 0.4 W | CCC, CE, cURus, TUV, UKCA | 7500 RPM | - | 4 Wire Leads | - |
|
|
MF25100V3-1000U-Q995VDC FAN 25X10MM ALARM/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 1.3 CFM (0.036m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 10.00mm | 8.8dB(A) | 0.2 W | CCC, CE, cURus, TUV, UKCA | 6800 RPM | - | 4 Wire Leads | - |
|
|
MF35100V1-1000U-Q995VDC FAN 35X10MM ALARM/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 7.2 CFM (0.202m³/min) | 0.220 in H2O (55.0 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 10.00mm | 28.0dB(A) | 0.68 W | CCC, CE, cURus, TUV, UKCA | 10000 RPM | - | 4 Wire Leads | - |
|
|
MF25060V2-1000U-Q995VDC FAN 25X6MM ALARM/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 2.2 CFM (0.061m³/min) | 0.160 in H2O (39.8 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 6.00mm | 18.0dB(A) | 0.38 W | CCC, CE, cURus, TUV, UKCA | 10000 RPM | - | 4 Wire Leads | - |
|
|
MF35100V3-1000U-Q995VDC FAN 35X10MM ALARM/PWM |
0 | - |
|
数据表 |
MF | Box | Active | 5VDC | Square - 35mm L x 35mm H | 3.7 CFM (0.104m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 10.00mm | 13.1dB(A) | 0.23 W | CCC, CE, cURus, TUV, UKCA | 5300 RPM | - | 4 Wire Leads | - |
|
THB1248B-AXHGFAN AXIAL 120X25.4MM 48VDC WIRE |
0 | - |
|
数据表 |
THB | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 186.6 CFM (5.22m³/min) | 0.962 in H2O (239.6 Pa) | Ball | 0.437 lb (198.00 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 59.0dB(A) | 19.2 W | CE, cURus, TUV | 5300 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP54 - Dust Protected, Water Resistant |
|

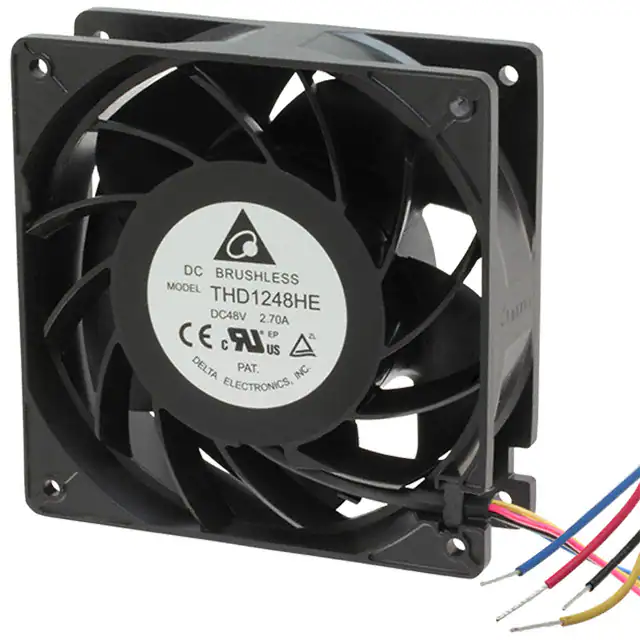

THD1248HEFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
THD - Bionic Blade | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 287.0 CFM (8.03m³/min) | 4.400 in H2O (1096.0 Pa) | Ball | 1.1 lbs (499.0 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 78.0dB(A) | 105.82 W | CE, cURus, TUV | 10900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
THB2048HG-AFAN AXIAL 208X50.8MM 48VDC WIRE |
0 | - |
|
数据表 |
THB | Box | Obsolete | 48VDC | Round - 208mm Dia | 690.3 CFM (19.33m³/min) | 4.141 in H2O (1031.4 Pa) | Ball | 2.9 lbs (1.3 kg) | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 50.80mm | 78.0dB(A) | 201.6 W | CE, cURus, TUV | 7700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

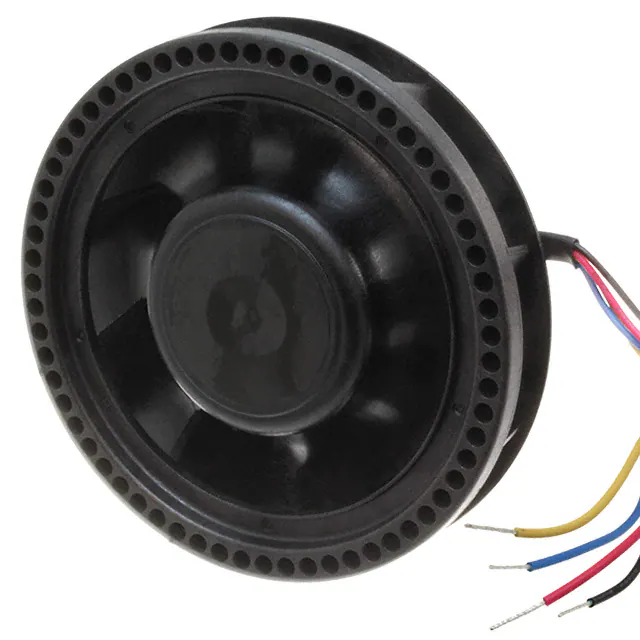

TCA1048AB0CFAN IMP MTRZD 100X24.8MM 48VDC |
0 | - |
|
数据表 |
TCA | Box | Obsolete | 48VDC | Round - 100mm Dia | 68.8 CFM (1.93m³/min) | 1.895 in H2O (472.0 Pa) | Ball | 0.309 lb (140.16 g) | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 24.80mm | 65.0dB(A) | 18.72 W | CE, cURus, TUV | 6700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

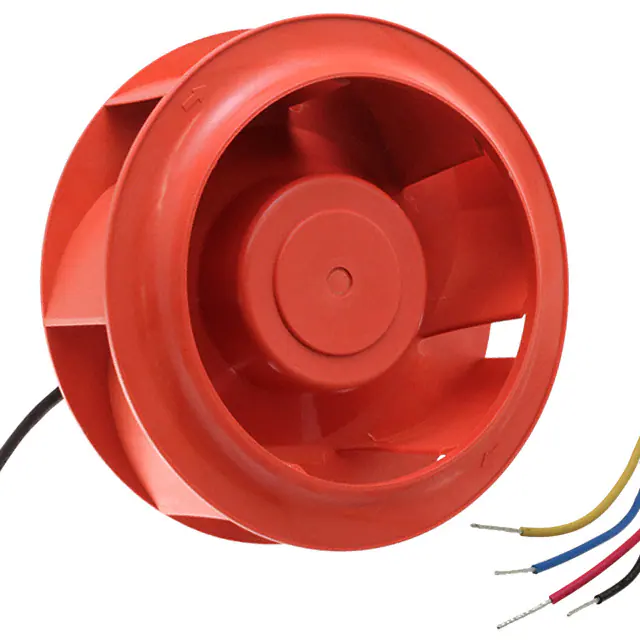

KFB1748VHT-CNFAN IMP MTRZD 175X69MM 48VDC |
0 | - |
|
数据表 |
KFB | Box | Obsolete | 48VDC | Round - 175mm Dia | 316.9 CFM (8.87m³/min) | 1.422 in H2O (354.2 Pa) | Ball | 1.5 lbs (670.0 g) | Motorized Impellers | GR-487 (Salt Fog Protection), Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 69.00mm | 66.0dB(A) | 34.56 W | CE, CSA, UL, VDE | 3100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP54 - Dust Protected, Water Resistant |
|
|
96FAN-478P1U2.0-CJCOOLJAG P-M 478P 1U 2.0GHZ TOP B |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
96FAN-775P2U3.4-CJCOOLJAG P4 775P 1.5U+ 3.4GHZ TOP |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
96FAN-775P3U3.8-CJCOOLJAG P4 775P 3U+ 3.8GHZ TOP B |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MF60202V3-1000U-F9924VDC FAN 60X20MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 16.3 CFM (0.46m³/min) | 0.100 in H2O (24.9 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 21.0dB(A) | 0.53 W | CCC, CE, cURus, TUV, UKCA | 3100 RPM | - | 3 Wire Leads | - |
|
|
4114N/17HH-218FAN AXIAL 24VDC 119X38MM ALARM |
0 | - |
|
数据表 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FFB0848XHA01FAN AXIAL 80X25.4MM 48VDC WIRE |
0 | - |
|
数据表 |
FFB | Box | Obsolete | 48VDC | Square - 80mm L x 80mm H | 92.7 CFM (2.60m³/min) | 1.229 in H2O (306.1 Pa) | Ball | 0.254 lb (115.21 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.40mm | 59.0dB(A) | 12.96 W | CE, cURus, TUV | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
FAD1-08025CBAW12-AFAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 19.8 CFM (0.554m³/min) | 0.046 in H2O (11.4 Pa) | Ball | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 18.3dB(A) | 1.08 W | CE, cURus, TUV | 1600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
FAD1-08025CHKW12-AFAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 56.8 CFM (1.59m³/min) | 0.350 in H2O (87.2 Pa) | Hydrodynamic | 0.159 lb (72.12 g) | Tubeaxial | - | 25.00mm | 48.1dB(A) | 5.4 W | CE, cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
MF60202V1-1000U-F9924VDC FAN 60X20MM TACH |
0 | - |
|
数据表 |
MF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 23.0 CFM (0.644m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | - | Tubeaxial | Auto Restart, Locked Rotor Sensor | 20.00mm | 33.5dB(A) | 1.32 W | CCC, CE, cURus, TUV, UKCA | 5000 RPM | - | 3 Wire Leads | - |
|
|
ME50151V1-000U-A99FAN AXIAL 50X15MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® ME | Box | Obsolete | 12VDC | Square - 50mm L x 50mm H | 18.6 CFM (0.521m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | 0.061 lb (27.67 g) | Tubeaxial | Auto Restart | 15.00mm | 40.1dB(A) | 1.74 W | CUR, TUV, UL | 7000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
