直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBM-5020V-144FAN BLOWER 50X20MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-50V | Tray | Obsolete | 12VDC | Square/Rounded - 50mm L x 50mm H | 4.8 CFM (0.134m³/min) | 0.460 in H2O (114.6 Pa) | omniCOOL™ Magnetic Sleeve | 0.073 lb (33.11 g) | Blower | Auto Restart | 20.00mm | 30.0dB(A) | 1.1 W | CE, cURus, TUV | 4400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|

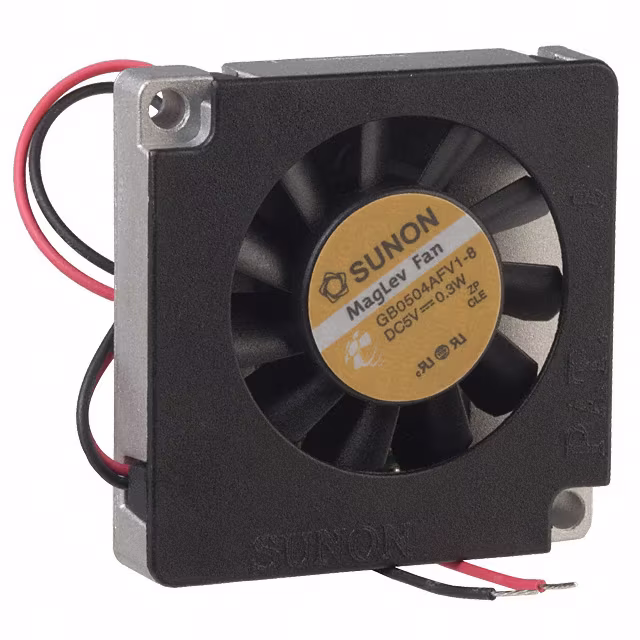

GB0504AFV1-8FAN BLOWER 40X9.3MM 5VDC WIRE |
0 | - |
|
数据表 |
GB | - | Obsolete | 5VDC | Square - 40mm L x 40mm H | 1.8 CFM (0.050m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | 0.04 lb (18.14 g) | Blower | - | 9.30mm | 30.0dB(A) | 300 mW | CE, CUR, TUV, UL | 6500 RPM | 14 ~ 194°F (-10 ~ 90°C) | 2 Wire Leads | - |
|

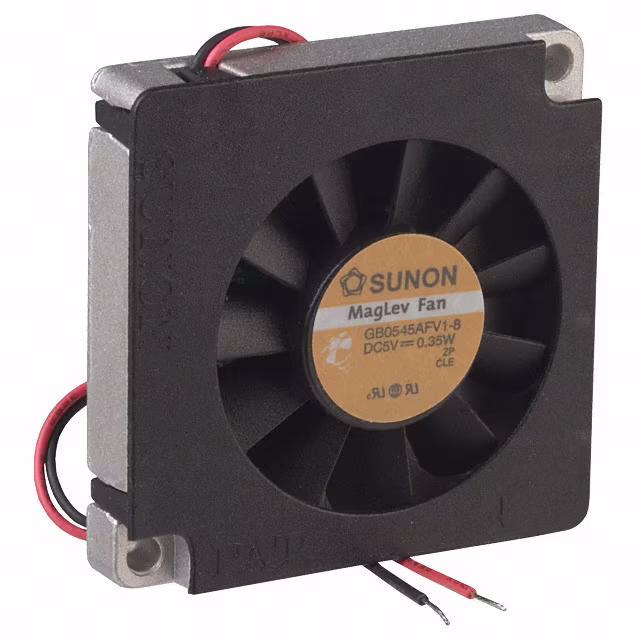

GB0545AFV1-8FAN BLOWER 45X9.3MM 5VDC WIRE |
0 | - |
|
数据表 |
GB | - | Obsolete | 5VDC | Square - 45mm L x 45mm H | 2.2 CFM (0.061m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | 0.048 lb (21.77 g) | Blower | - | 9.30mm | 29.0dB(A) | 350 mW | CE, CUR, TUV, UL | 5500 RPM | 14 ~ 194°F (-10 ~ 90°C) | 2 Wire Leads | - |
|
CFM-6025BF-035-274FAN AXIAL 60X25.4MM 5VDC WIRE |
0 | - |
|
数据表 |
CFM-60BF | Box | Active | 5VDC | Square - 60mm L x 60mm H | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.40mm | 27.5dB(A) | 1.5 W | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-6025BF-150-351FAN AXIAL 60X25.4MM 12VDC WIRE |
0 | - |
|
数据表 |
CFM-60BF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.40mm | 35.2dB(A) | 2.76 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CFM-6025BF-250-351FAN AXIAL 60X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 24.0 CFM (0.672m³/min) | 0.220 in H2O (54.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.40mm | 35.2dB(A) | 2.64 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
CBM-4010B-150-227-20FAN BLOWER 39.5X10MM 12VDC WIRE |
0 | - |
|
数据表 |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 39.5mm L x 39.5mm H | 1.5 CFM (0.042m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Blower | Auto Restart, Speed Sensor (Tach) | 10.00mm | 22.8dB(A) | 1.08 W | CE, cURus, TUV | 5000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
CBM-5015BF-135-293DC BLOWER, 51.7 X 51.25 X 14.9 M |
0 | - |
|
数据表 |
CBM-50BF | Box | Active | 12VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 2.2 CFM (0.061m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Blower | - | 15.00mm | 29.4dB(A) | 600 mW | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-5015BF-035-293DC BLOWER, 51.7 X 51.25 X 14.9 M |
0 | - |
|
数据表 |
CBM-50BF | Box | Active | 5VDC | Rectangular/Rounded - 51.6mm L x 51.2mm H | 2.2 CFM (0.061m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Blower | - | 15.00mm | 29.3dB(A) | 700 mW | CE, cURus, TUV | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
CBM-4020B-130-216DC BLOWER, 40 MM SQUARE, 20 MM, |
0 | - |
|
数据表 |
CBM-40B | Box | Active | 12VDC | Square/Rounded - 40.5mm L x 40.5mm H | 1.3 CFM (0.036m³/min) | 0.050 in H2O (12.4 Pa) | Ball | - | Blower | Auto Restart | 20.00mm | 21.6dB(A) | 0.24 W | CE, cURus, TUV | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD6015-05LLBFAN AXIAL 60X15MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
OD6015 | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | - | - | Ball | - | Tubeaxial | - | 15.00mm | - | - | cURus, TUV | - | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
|
FN-PX09-16SILENT 9 BLACK |
0 | - |
|
数据表 |
Silent 9 Black | Active | 12VDC | Square - 92mm L x 92mm H | 31.3 CFM (0.876m³/min) | 0.059 in H2O (14.7 Pa) | Hydrodynamic | - | Tubeaxial | Fan Mounts Included | 25.00mm | 20.0dB(A) | - | CE | 1500 RPM | - | 3 Position Rectangular Connector | - | |
|
F6025X12B1+3-RSFAN AXIAL 60X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F6025 | Bulk | Discontinued at Digi-Key | 12VDC | Square - 60mm L x 60mm H | 27.0 CFM (0.756m³/min) | 0.280 in H2O (69.7 Pa) | Ball | 0.156 lb (70.76 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach), Thermistor | 25.00mm | 41.0dB(A) | - | CE, cUL, TUV, UL | 5200 RPM | - | 3 Wire Leads | - |
|
|
EF40101B2-1000U-G9912VDC FAN 40X10MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 5.5 CFM (0.154m³/min) | 0.100 in H2O (24.9 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 17.7dB(A) | 0.45 W | CCC, CE, cURus, TUV, UKCA | 5000 RPM | - | 3 Wire Leads | - |
|
|
F6025X24B-RH-L20FAN AXIAL 60X25MM 24VDC WIRE |
0 | - |
|
数据表 |
F6025-H | Bulk | Discontinued at Digi-Key | 24VDC | Square - 60mm L x 60mm H | 28.0 CFM (0.784m³/min) | 0.370 in H2O (92.2 Pa) | Ball | 0.139 lb (63.05 g) | Tubeaxial | Thermal Overload Protector (TOP) | 25.00mm | 42.0dB(A) | - | CE, cUL, TUV, UL | 5800 RPM | - | 2 Wire Leads | - |
|
F8025S05B1-FSFAN AXIAL 80X25MM BALL 5VDC WIRE |
0 | - |
|
数据表 |
F8025 | Bulk | Discontinued at Digi-Key | 5VDC | Square - 80mm L x 80mm H | 25.0 CFM (0.700m³/min) | 0.050 in H2O (12.4 Pa) | Ball | 0.174 lb (78.93 g) | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 20.0dB(A) | - | CE, cUL, TUV, UL | 1500 RPM | - | 3 Wire Leads | - |
|
|
F8025X12B1-FH-TTL-EM-UL1061FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
F8025-H | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 53.0 CFM (1.48m³/min) | 0.260 in H2O (64.8 Pa) | Ball | 0.182 lb (82.55 g) | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.00mm | 39.0dB(A) | - | CE, cUL, TUV, UL | 4200 RPM | - | 3 Wire Leads | - |
|
|
MB7020U12B-FSRFAN 70X20MM BALL 12VDC WIRE |
0 | - |
|
数据表 |
MB7020 | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | - | - | Ball | - | - | - | 20.00mm | - | - | cUL, UL | - | - | 2 Wire Leads | - |
|
|
EF40101BX-1000U-G9912VDC FAN 40X10MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.0 CFM (0.280m³/min) | 0.270 in H2O (67.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 33.7dB(A) | 1.47 W | CCC, CE, cURus, TUV, UKCA | 9000 RPM | - | 3 Wire Leads | - |
|
|
EF40101B1-1000U-G9912VDC FAN 40X10MM ALARM |
0 | - |
|
数据表 |
EF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 8.0 CFM (0.224m³/min) | 0.190 in H2O (47.3 Pa) | Ball | - | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 10.00mm | 27.3dB(A) | 0.99 W | CCC, CE, cURus, TUV, UKCA | 7000 RPM | - | 3 Wire Leads | - |
