直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9WPA0424P3H001FAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0424P3H0011FAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0412P3H001FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0412P3H0011FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 28.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
612N/39HH-220DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
9WG1248F102-EFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 36.0dB(A) | 4.32 W | CSA, TUV, UL | 2280 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1248H102-EFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 39.0dB(A) | 5.28 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1248M102-EFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 32.0dB(A) | 3.36 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1248E102-EFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 46.0dB(A) | 8.16 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

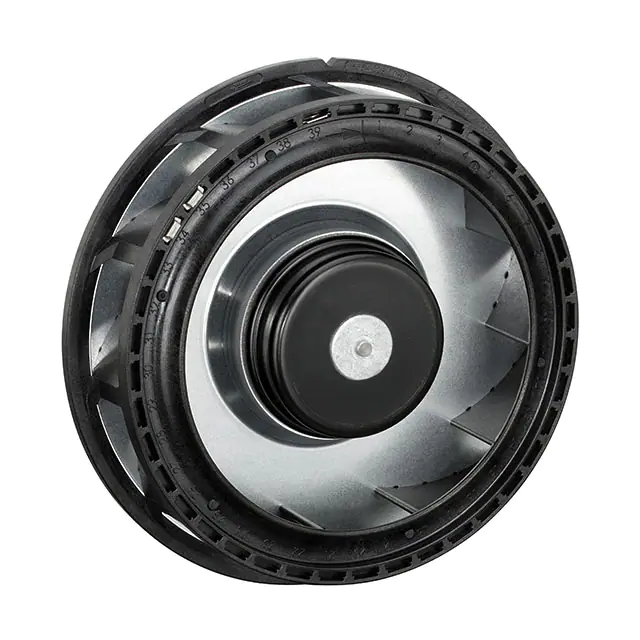

RER125-19/12NGFAN IMP MTRZD 138X35MM 12VDC |
0 | - |
|
数据表 |
RER125N | Box | Obsolete | 12VDC | Round - 138mm Dia | 64.7 CFM (1.81m³/min) | - | Sintec | 0.705 lb (319.78 g) | Motorized Impellers | - | 35.00mm | 47.0dB(A) | 5 W | - | 2650 RPM | -22 ~ 167°F (-30 ~ 75°C) | 2 Wire Leads | - |
|
|
B5135FAN,DC,C5016 |
0 | - |
|
数据表 |
- | Bulk | Active | 5VDC | - | - | - | Ball | - | Tubeaxial | - | - | - | - | CE, TUV, UR | - | - | 2 Wire Leads | - |
|
|
9WG1248G101-EFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 12 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1248H1D01-EFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 39.0dB(A) | 5.28 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1248E101-EFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 8.16 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1248F101-EFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 36.0dB(A) | 4.32 W | CSA, TUV, UL | 2280 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1248H101-EFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 39.0dB(A) | 5.28 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1248M101-EFAN AXIAL 120X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 32.0dB(A) | 3.36 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1248M1D01-EFAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 119mm L x 119mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | 3.36 W | - | - | - | 3 Wire Leads | - |
|
|
9WG1248G1D01-E120X38MM 48V,SPLASH PROOF,RBLS D |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | CSA, TUV, UR | - | - | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1248F1D01-E120X38MM 48V,SPLASH PROOF,RBLS D |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | CSA, TUV, UR | - | - | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
