直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W2G110-AM41-31FAN AXIAL 119X38MM 48VDC TERM |
0 | - |
|
数据表 |
W1G110 | - | Obsolete | 48VDC | Square - 119mm L x 119mm H | 156.0 CFM (4.37m³/min) | - | Ball | - | Tubeaxial | - | 38.00mm | 54.0dB(A) | 5.9 W | CSA, UL, VDE | - | - | 2 Terminals | - |
|
9WG1212F102-EFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 36.0dB(A) | 3.36 W | CSA, TUV, UL | 2280 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1212M102-EFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 32.0dB(A) | 2.52 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1224E102-EFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 46.0dB(A) | 8.16 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1224H102-EFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 39.0dB(A) | 5.28 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1224M102-EFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 74.0 CFM (2.07m³/min) | 0.159 in H2O (39.6 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 32.0dB(A) | 2.64 W | CSA, TUV, UL | 1950 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|

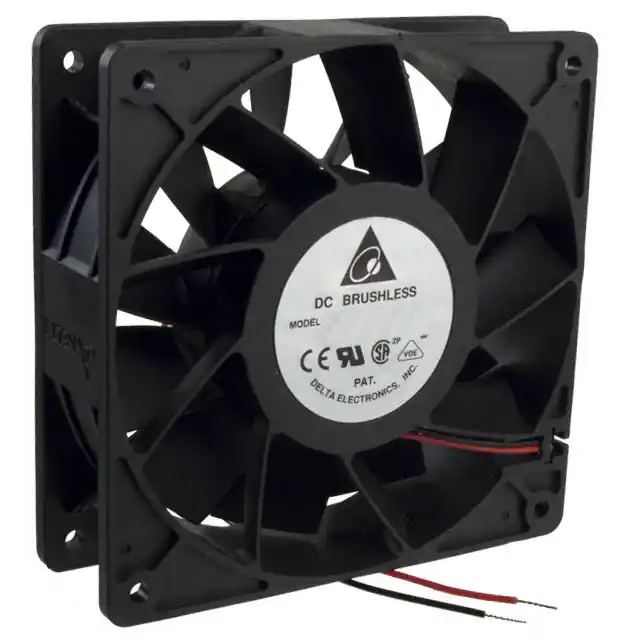

PFB1212GHEFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFB | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 217.8 CFM (6.10m³/min) | 1.075 in H2O (267.8 Pa) | Ball | 0.838 lb (380.11 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 64.0dB(A) | 32.4 W | CE, CSA, UL, VDE | 4800 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
4218/2FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
4200 | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 97.0 CFM (2.72m³/min) | - | Ball | 0.639 lb (289.85 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 45.0dB(A) | 4.3 W | CE, CSA, UL, VDE | 3050 RPM | -4 ~ 167°F (-20 ~ 75°C) | 3 Wire Leads | - |
|
9WFA0624G6002FAN AXIAL 60X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 60WF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 27.9 CFM (0.781m³/min) | 0.630 in H2O (156.9 Pa) | Ball | 0.188 lb (85.28 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 48.0dB(A) | 3.8 W | cURus, TUV | 7700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | Oil Resistant |
|
12038VA-24P-EA-00FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
12038VA | Bulk | Obsolete | 24VDC | Square - 120mm L x 120mm H | 189.0 CFM (5.29m³/min) | 0.940 in H2O (234.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 60.0dB | 17.8 W | - | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
|
9WPA0424G3001FAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0412G30011FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0424G30011FAN AXIAL 40X28MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
9WPA0412G3001FAN AXIAL 40X28MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.00mm | - | - | cURus, TUV | - | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP68 - Dust Tight, Waterproof |
|
9WFA0424G6002FAN AXIAL 40X20MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 40WF | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.9 CFM (0.305m³/min) | 0.680 in H2O (169.4 Pa) | Ball | 0.101 lb (45.81 g) | Tubeaxial | Locked Rotor Protection | 20.00mm | 40.0dB(A) | 2.6 W | cURus, TUV | 17000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | Oil Resistant |
|
|
9WG1212E1D01-EFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 118.0 CFM (3.30m³/min) | 0.402 in H2O (100.1 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 46.0dB(A) | 7.32 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1212H101-EFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 99.0 CFM (2.77m³/min) | 0.283 in H2O (70.5 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 39.0dB(A) | 4.56 W | CSA, TUV, UL | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1224F101-EFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 36.0dB(A) | 3.84 W | CSA, TUV, UL | 2280 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1224F1D01-EFAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 24VDC | Square - 120mm L x 120mm H | 87.0 CFM (2.44m³/min) | 0.218 in H2O (54.3 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 36.0dB(A) | 3.84 W | CSA, TUV, UL | 2280 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
|
9WG1212G1D01-EFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120W | Box | Active | 12VDC | Square - 120mm L x 120mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 49.0dB(A) | 11.76 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | IP55 - Dust Protected, Water Resistant |
