直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFR1212DHE-F00FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFR | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 254.3 CFM (7.12m³/min) | 1.438 in H2O (358.2 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 68.5dB(A) | 44.4 W | CE, cURus, VDE | 7400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
PFR1212UHE-F00FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PFR | Box | Obsolete | 12VDC | Square - 120mm L x 120mm H | 228.6 CFM (6.40m³/min) | 1.206 in H2O (300.4 Pa) | Ball | 0.904 lb (410.05 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 65.5dB(A) | 32.4 W | CE, cURus, VDE | 6600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

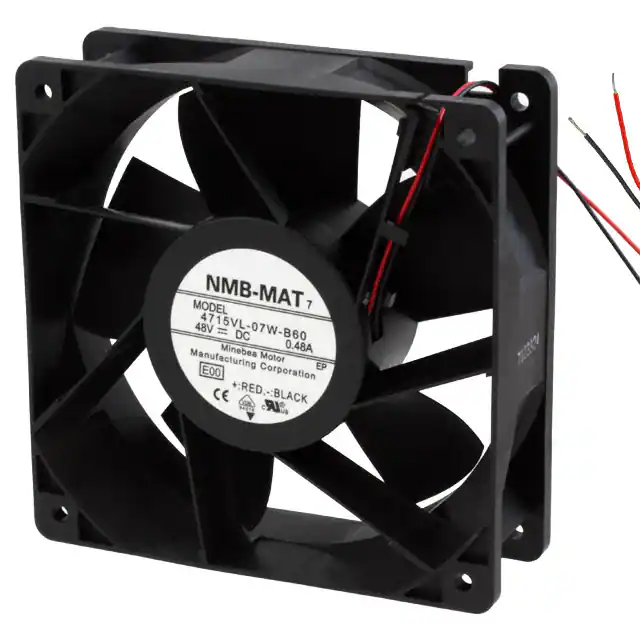

4715VL-07W-B60-E00FAN AXIAL 120X38MM 48VDC WIRE |
5 | - |
|
数据表 |
4715VL | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | - | 38.00mm | 59.5dB(A) | 21.6 W | CE, UL, VDE | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
4218FAN AXIAL 119X38MM 48VDC WIRE |
0 | - |
|
数据表 |
4200 | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 97.0 CFM (2.72m³/min) | - | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 4.3 W | CE, CSA, UL, VDE | 3050 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
|
4218HFAN AXIAL 119X38MM 48VDC TERM |
0 | - |
|
数据表 |
4200 | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 108.3 CFM (3.03m³/min) | - | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 5.6 W | CE, CSA, UL, VDE | 3400 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Terminals | - |
|
GF80251B2-000U-SE9FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | Ball | 0.232 lb (105.23 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 46.0dB(A) | 3.06 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
GF80251B3-000U-SE9FAN 80X25MM 12VDC IP68 PWM 53CFM |
0 | - |
|
数据表 |
GF | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GF80321B2-000U-SE9FAN AXIAL 80X25MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 55.9 CFM (1.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | 0.241 lb (109.32 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 43.1dB(A) | 2.76 W | CE, CUR, TUV, UL | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
GF80321B3-000U-SE9FAN AXIAL 80X32MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 50.3 CFM (1.41m³/min) | 0.270 in H2O (67.3 Pa) | Ball | 0.241 lb (109.32 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 32.00mm | 41.1dB(A) | 2.28 W | CE, CUR, TUV, UL | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF92251B2-000U-SE9FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Ball | 0.253 lb (114.76 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 45.0dB(A) | 3.6 W | CE, CUR, TUV, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
GF92251B3-000U-SE9FAN AXIAL 92X25MM 12VDC WIRE |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.253 lb (114.76 g) | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.00mm | 43.0dB(A) | 2.76 W | CE, CUR, TUV, UL | 3900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

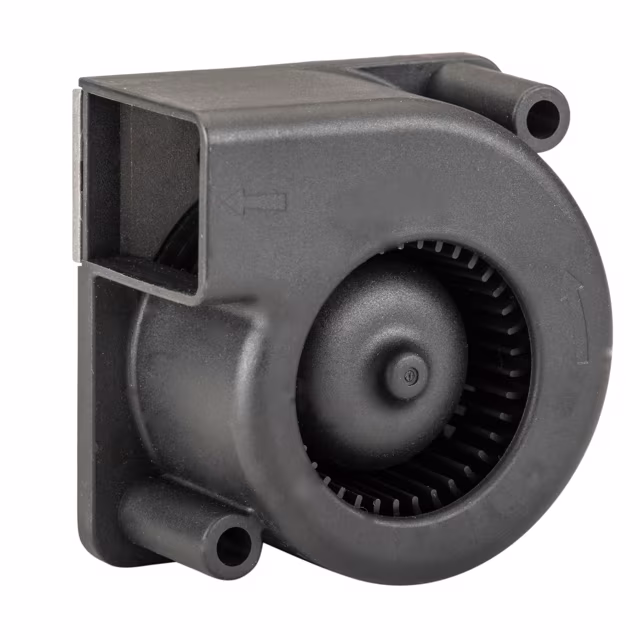

K5331X24BALB2A-37FAN BLOWER 53X31MM 24VDC WIRE |
2 | - |
|
数据表 |
TITAN | Bulk | Active | 24VDC | Rectangular/Round - 53mm L x 53mm H | 13.6 CFM (0.039m³/min) | 0.990 in H2O (246.6 Pa) | Ball | - | Blower | Auto Restart, Locked Rotor Protection, Polarity Protection, Speed Sensor (Tach) | 31.00mm | 47.7dB(A) | 7.92 W | CE, cUL, UL | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

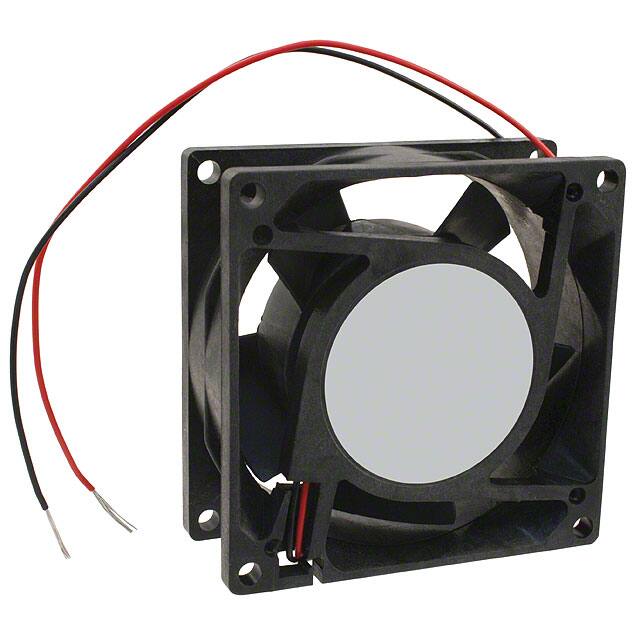

19031530AFAN AXIAL 80X32MM 12VDC ST12K7 |
0 | - |
|
数据表 |
Sprint | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 40.0 CFM (1.12m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 44.2dB(A) | 4.6 W | CE, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
12038VE-24R-GT-00DC AXIAL FAN |
0 | - |
|
数据表 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4298HFAN AXIAL 119X38MM 48VDC TERM |
0 | - |
|
数据表 |
4200 | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 108.0 CFM (3.02m³/min) | - | Ball | 0.63 lb (285.76 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 5.6 W | CE, CSA, UL, VDE | - | - | 2 Terminals | - |
|

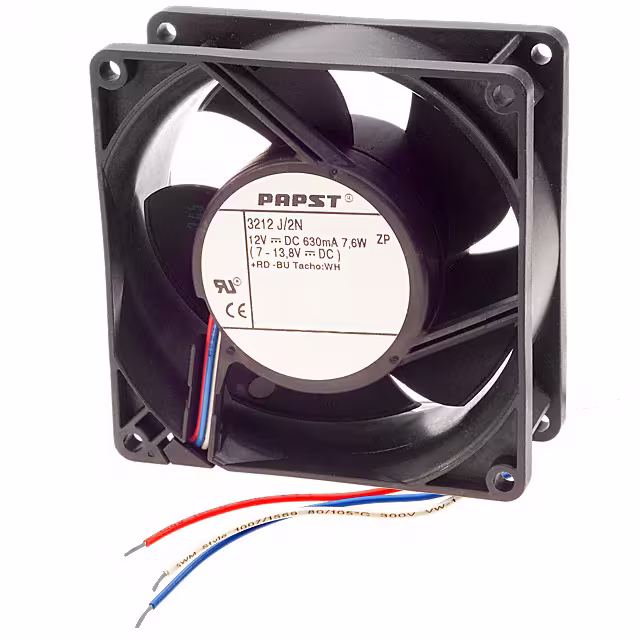

3212J/2NFAN AXIAL 92X38MM 12VDC WIRE |
0 | - |
|
数据表 |
3200J | - | Obsolete | 12VDC | Square - 92mm L x 92mm H | 77.0 CFM (2.16m³/min) | - | Ball | 0.5 lb (226.8 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 51.0dB(A) | 7.5 W | CSA, UL, VDE | 6000 RPM | - | 3 Wire Leads | - |
|
|
9HV0812G1002FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | 0.508 lb (230.42 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 69.0dB(A) | 40.8 W | CSA, TUV, UL | 14900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
9HV0812G10021FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 130.7 CFM (3.66m³/min) | 4.000 in H2O (996.3 Pa) | Ball | 0.508 lb (230.42 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 69.0dB(A) | 40.8 W | CSA, TUV, UL | 14900 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
4412FM/2DC TUBEAXIAL FAN |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9RA1212K1001120X38MM 12VDC TACH |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 160.8 CFM (4.50m³/min) | 0.683 in H2O (170.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 50.0dB(A) | - | cURus, TUV | 4700 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
