直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9GV1212J101FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 36 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GV1212G1011FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 192.6 CFM (5.39m³/min) | 1.060 in H2O (264.0 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 60.0dB(A) | 25.2 W | CSA, TUV, UL | 5500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GV1212J1011FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 224.0 CFM (6.27m³/min) | 1.450 in H2O (361.2 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 64.0dB(A) | 36 W | CSA, TUV, UL | 6400 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9GV1212G1D011120X38MM 12V,GUIDE VANE,RBLS DC |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
9GV1212J1D01120X38MM 12V,GUIDE VANE DC LCKRT |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Sensor | 38.00mm | - | - | cURus, TUV | - | - | 3 Wire Leads | - |
|
|
17001136AFAN AXIAL 24VDC STD24Z3E2X-E3 |
0 | - |
|
数据表 |
Sprint | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 45.0 CFM (1.26m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 32.00mm | 51.5dB(A) | 6 W | CE, cUL, UL | 4700 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
PF60561B1-000U-G9H12VDC FAN 60X56MM ALARM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 58.8 CFM (1.64m³/min) | 2.350 in H2O (585.4 Pa) | Ball | - | Tubeaxial (Dual) | Speed Sensor (Tach) | 56.00mm | 67.0dB(A) | 16.8 W | CCC, CE, cURus, TUV, UKCA | 12300 RPM Front, 11500 RPM Rear | - | 3 Wire Leads per Fan | - |
|
|
PF60561B1-000U-H9H12VDC FAN 60X56MM PWM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 58.8 CFM (1.64m³/min) | 2.350 in H2O (585.4 Pa) | Ball | - | Tubeaxial (Dual) | PWM Control | 56.00mm | 67.0dB(A) | 16.8 W | CCC, CE, cURus, TUV, UKCA | 12300 RPM Front, 11500 RPM Rear | - | 3 Wire Leads per Fan | - |
|
|
PF60561BX-000U-H9H12VDC FAN 60X56MM PWM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 72.8 CFM (2.04m³/min) | 3.440 in H2O (856.9 Pa) | Ball | - | Tubeaxial (Dual) | PWM Control | 56.00mm | 71.7dB(A) | 30 W | CCC, CE, cURus, TUV, UKCA | 15300 RPM Front, 14300 RPM Rear | - | 3 Wire Leads per Fan | - |
|
|
PF60561BX-000U-G9H12VDC FAN 60X56MM ALARM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 72.8 CFM (2.04m³/min) | 3.440 in H2O (856.9 Pa) | Ball | - | Tubeaxial (Dual) | Speed Sensor (Tach) | 56.00mm | 71.7dB(A) | 30 W | CCC, CE, cURus, TUV, UKCA | 15300 RPM Front, 14300 RPM Rear | - | 3 Wire Leads per Fan | - |
|
|
16005235AFAN 112VDC 127X38MM GL12R7HT |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PF60561BX-000U-F9H12VDC FAN 60X56MM TACH |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 72.8 CFM (2.04m³/min) | 3.440 in H2O (856.9 Pa) | Ball | - | Tubeaxial (Dual) | Locked Rotor Sensor | 56.00mm | 71.7dB(A) | 30 W | CCC, CE, cURus, TUV, UKCA | 15300 RPM Front, 14300 RPM Rear | - | 3 Wire Leads per Fan | - |
|
|
PF60561B1-000U-F9H12VDC FAN 60X56MM TACH |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 58.8 CFM (1.64m³/min) | 2.350 in H2O (585.4 Pa) | Ball | - | Tubeaxial (Dual) | Locked Rotor Sensor | 56.00mm | 67.0dB(A) | 16.8 W | CCC, CE, cURus, TUV, UKCA | 12300 RPM Front, 11500 RPM Rear | - | 3 Wire Leads per Fan | - |
|

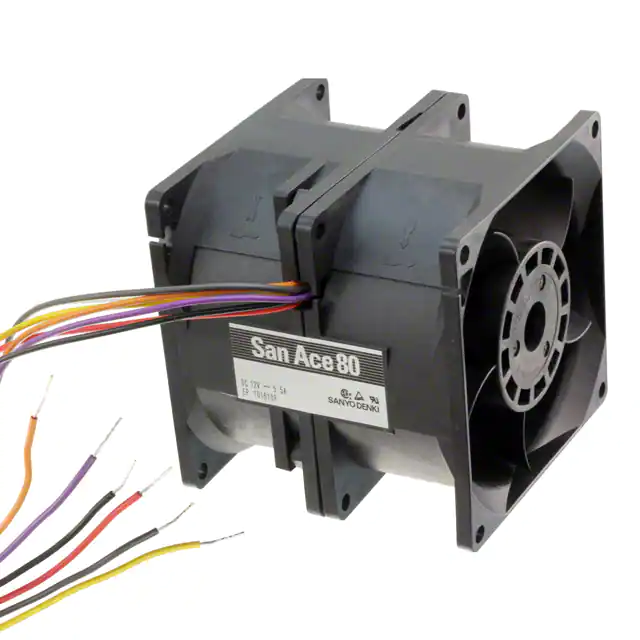

9CR0812S801FAN AXIAL DUAL 80X80MM 12VDC |
0 | - |
|
数据表 |
San Ace 80 | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 160.0 CFM (4.48m³/min) | 2.090 in H2O (520.0 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial (Dual) | Counter-Rotating, Speed Sensor (Tach) | 80.00mm | 71.0dB(A) | 66 W | CSA, TUV, UL | 8000 Front, 5300 Rear | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads per Fan | - |
|
|
9GV1212P1G011FAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 192.6 CFM (5.39m³/min) | 1.063 in H2O (264.8 Pa) | Ball | 0.794 lb (360.15 g) | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 60.0dB(A) | 25.2 W | CSA, TUV, UL | 5500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9GV1248G402FAN AXIAL 120X25.4MM 48VDC WIRE |
0 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 171.0 CFM (4.79m³/min) | 0.900 in H2O (224.2 Pa) | Ball | 0.573 lb (260.00 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 58.0dB(A) | 20.16 W | CSA, TUV, UL | 5100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
|
PF60561B1-000U-S9H12VDC FAN 60X56MM TACH/PWM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 58.8 CFM (1.64m³/min) | 2.350 in H2O (585.4 Pa) | Ball | - | Tubeaxial (Dual) | PWM Control | 56.00mm | 67.0dB(A) | 16.8 W | CCC, CE, cURus, TUV, UKCA | 12300 RPM Front, 11500 RPM Rear | - | 3 Wire Leads per Fan | - |
|
|
PF60561BX-000U-S9H12VDC FAN 60X56MM TACH/PWM |
0 | - |
|
数据表 |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 72.8 CFM (2.04m³/min) | 3.440 in H2O (856.9 Pa) | Ball | - | Tubeaxial (Dual) | PWM Control | 56.00mm | 71.7dB(A) | 30 W | CCC, CE, cURus, TUV, UKCA | 15300 RPM Front, 14300 RPM Rear | - | 3 Wire Leads per Fan | - |
|
|
622/2HHP-021FAN,AXIAL,12VDC,-CFM,3.7W,0.31A, |
0 | - |
|
数据表 |
622 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 33.0 CFM (0.924m³/min) | 0.582 in H2O (145.0 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 25.40mm | 43.0dB(A) | 3.7 W | CCC, CE, CSA, UL, VDE | 8200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
17001217AFAN AXIAL 24VDC SDD24B1-E3E |
0 | - |
|
数据表 |
Sprite | Box | Active | 24VDC | Square - 79.8mm L x 79.8mm H | 35.0 CFM (0.980m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 41.80mm | 47.6dB(A) | 3 W | CE, cUL, UL | 3500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
