直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSI1225H12B2-BBRFAN IMP MTRZD 120X25.8MM 12VDC |
0 | - |
|
数据表 |
MSI1225 | Box | Active | 12VDC | Round - 120mm Dia | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 0.356 lb (161.48 g) | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 25.80mm | 54.0dB(A) | - | CE, cUL, TUV, UL | 3300 RPM | - | 3 Wire Leads | - |
|
|
MSI1225H24B1-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
0 | - |
|
数据表 |
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 0.356 lb (161.48 g) | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 25.80mm | 54.0dB(A) | - | CE, cUL, TUV, UL | 3300 RPM | - | 3 Wire Leads | - |
|
|
MSI1225H24B2-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
0 | - |
|
数据表 |
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | 58.0 CFM (1.62m³/min) | 0.570 in H2O (142.0 Pa) | Ball | 0.356 lb (161.48 g) | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 25.80mm | 54.0dB(A) | - | CE, cUL, TUV, UL | 3300 RPM | - | 3 Wire Leads | - |
|
|
MSI1225L24B1-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
0 | - |
|
数据表 |
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | - | - | Ball | 0.356 lb (161.48 g) | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 25.80mm | - | - | CE, cUL, TUV, UL | - | - | 3 Wire Leads | - |
|
|
MSI1225L24B2-BBRFAN IMP MTRZD 120X25.8MM 24VDC |
0 | - |
|
数据表 |
MSI1225 | Box | Active | 24VDC | Round - 120mm Dia | - | - | Ball | 0.356 lb (161.48 g) | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 25.80mm | - | - | CE, cUL, TUV, UL | - | - | 3 Wire Leads | - |
|

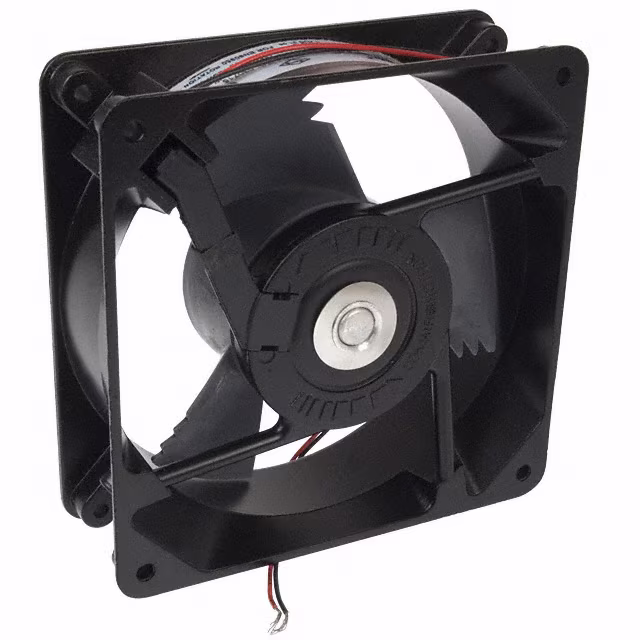

19030723AFAN AXIAL 119.1X39.1MM WD12M3 |
0 | - |
|
数据表 |
Whisper XL | Bulk | Active | 12VDC | Square - 119.13mm L x 119.13mm H | 57.0 CFM (1.60m³/min) | 0.087 in H2O (21.7 Pa) | Ball | 1.4 lbs (635.0 g) | Tubeaxial | - | 39.10mm | 30.3dB(A) | 1.2 W | - | 1675 RPM | - | 2 Wire Leads | - |
|

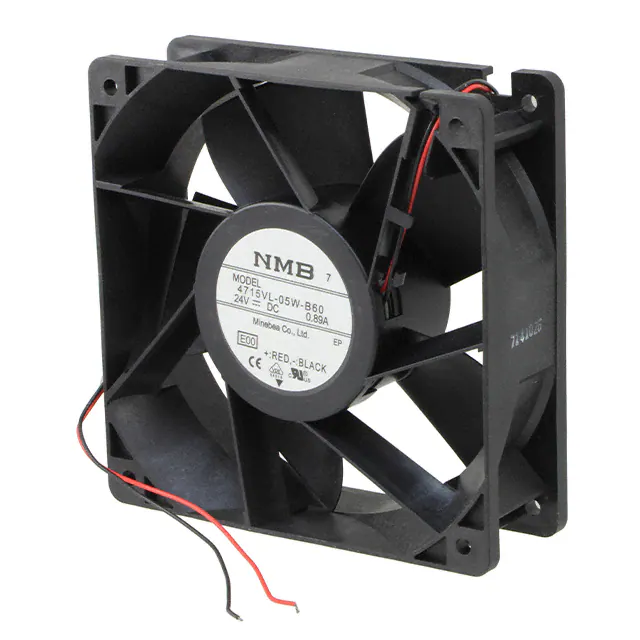

4715VL-05W-B60-E00FAN AXIAL 120X38MM 24VDC WIRE |
0 | - |
|
数据表 |
4715VL | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 189.9 CFM (5.32m³/min) | 0.920 in H2O (229.2 Pa) | Ball | 0.816 lb (370.13 g) | Tubeaxial | - | 38.00mm | 59.5dB(A) | 17.8 W | CE, UL, VDE | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
MQ1238H12B1+6-FSRFAN AXIAL 120X38MM 12VDC WIRE |
0 | - |
|
数据表 |
MQ1238 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 226.0 CFM (6.33m³/min) | 1.350 in H2O (336.3 Pa) | Ball | 0.772 lb (350.17 g) | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 38.00mm | 65.0dB(A) | - | CE, cUL, TUV, UL | 5000 RPM | - | 4 Wire Leads | - |
|
4715SL-07W-B79-D00FAN AXIAL 119X38.4MM 48VDC WIRE |
0 | - |
|
数据表 |
4715SL | Bulk | Obsolete | 48VDC | Square - 119mm L x 119mm H | 201.0 CFM (5.63m³/min) | 1.046 in H2O (260.5 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Locked Rotor Sensor | 38.40mm | 62.3dB | 39.8 W | CE, CSA, UL, VDE | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
4715SL-07W-B79-D50FAN AXIAL 119X38.4MM 48VDC WIRE |
0 | - |
|
数据表 |
4715SL | Box | Obsolete | 48VDC | Square - 119mm L x 119mm H | 201.0 CFM (5.63m³/min) | 1.046 in H2O (260.5 Pa) | Ball | 0.882 lb (400.07 g) | Tubeaxial | Speed Sensor (Tach) | 38.40mm | 62.3dB | 39.8 W | CE, CSA, UL, VDE | 5100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

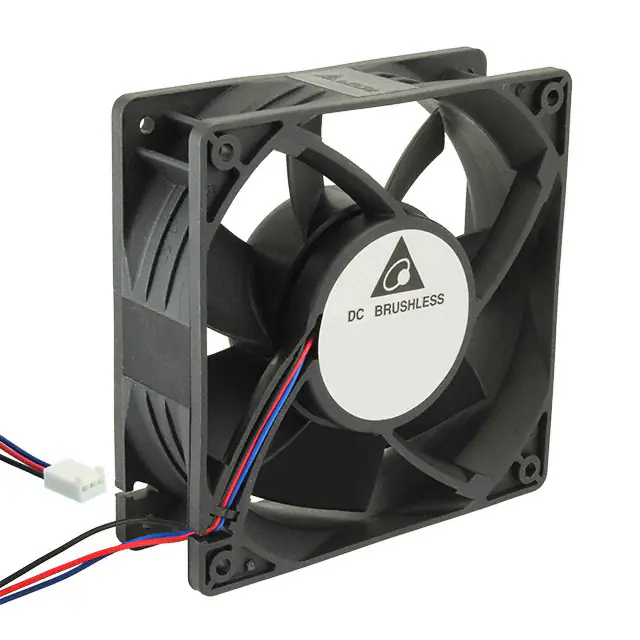

1-NPT/603-1325FAN AXL 120X38MM 12VDC RECT CONN |
4 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 241.0 CFM (6.75m³/min) | 1.082 in H2O (269.5 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 62.0dB(A) | 29.4 W | CE, CSA, UL, VDE | 5200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
1-NPT/603-1549FAN AXL 120X38MM 12VDC RECT CONN |
0 | - |
|
数据表 |
AFB | Box | Active | 12VDC | Square - 120mm L x 120mm H | 190.5 CFM (5.33m³/min) | 0.694 in H2O (173.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 55.5dB(A) | 15 W | CE, CSA, UL, VDE | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Position Rectangular Connector | - |
|
|
PEAD1A238BH MF00PEAD1A238BH MF00 |
0 | - |
|
数据表 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
17001158AFAN AXIAL 48VDC MSD48B3E2X-E3 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 49.1dB(A) | 7.2 W | CE, cUL, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001161AFAN AXIAL 48VDC MSD48K3E2X-E3 |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 120.0 CFM (3.36m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.10mm | 51.8dB(A) | 10.6 W | CE, cUL, UL | 3400 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
17001220AFAN AXIAL 24VDC MSD24B3-E3 |
0 | - |
|
数据表 |
Muffin XP | Box | Active | 24VDC | Square - 120mm L x 120mm H | 110.0 CFM (3.08m³/min) | - | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.10mm | 49.1dB(A) | 7 W | CE, cUL, UL | 3000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GE80254B3-000U-AC9FAN 80X25MM 48VDC IP56 53CFM |
0 | - |
|
数据表 |
GE | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GE92254B3-000U-AC9FAN AXIAL 92X25MM 48VDC WIRE |
0 | - |
|
数据表 |
GE | Bulk | Obsolete | 48VDC | Square - 92mm L x 92mm H | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | 0.253 lb (114.76 g) | Tubeaxial | - | 25.00mm | 43.0dB(A) | 4.08 W | - | 3900 RPM | - | 2 Wire Leads | IP56 - Dust Protected, Water Resistant |
|
4294HFAN AXIAL 119X38MM 24VDC TERM |
0 | - |
|
数据表 |
4200 | Bulk | Obsolete | 24VDC | Square - 119mm L x 119mm H | 108.0 CFM (3.02m³/min) | - | Ball | 0.63 lb (285.76 g) | Tubeaxial | - | 38.00mm | 49.0dB(A) | 5.3 W | CE, CSA, UL, VDE | - | - | 2 Terminals | - |
|
4212FAN AXIAL 119X38MM 12VDC WIRE |
0 | - |
|
数据表 |
4200 | Bulk | Obsolete | 12VDC | Square - 119mm L x 119mm H | 97.0 CFM (2.72m³/min) | - | Ball | 0.639 lb (289.85 g) | Tubeaxial | - | 38.00mm | 45.0dB(A) | 4.3 W | CE, CSA, UL, VDE | 3050 RPM | -4 ~ 167°F (-20 ~ 75°C) | 2 Wire Leads | - |
