直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

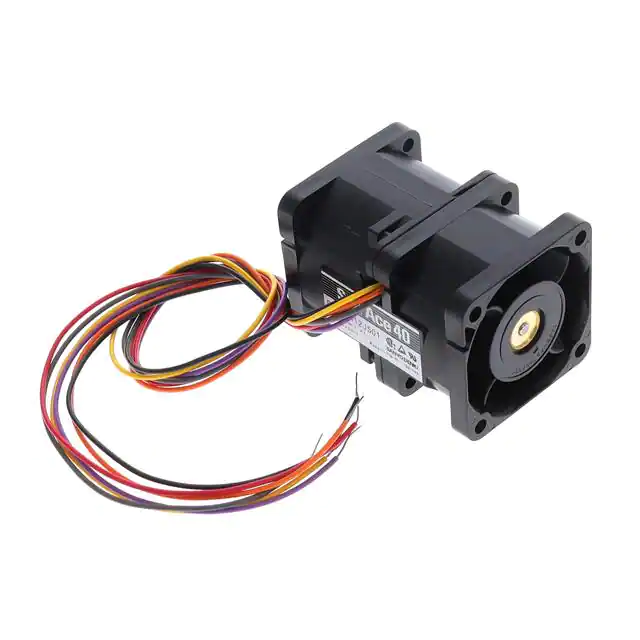

9CRA0412J501FAN AXIAL DUAL 40X56MM 12VDC |
22 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 31.8 CFM (0.890m³/min) | 2.290 in H2O (570.4 Pa) | Ball | 0.199 lb (90.26 g) | Tubeaxial (Dual) | Counter-Rotating, Speed Sensor (Tach) | 56.00mm | 62.0dB(A) | 16.8 W | cURus, TUV | 15800 Front, 12200 Rear | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads per Fan | - |
|
OD1238-12LBFAN AXIAL 120X38.5MM 12VDC WIRE |
78 | - |
|
数据表 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 73.0 CFM (2.04m³/min) | 0.130 in H2O (32.4 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 33.0dB | 3 W | cURus, TUV | 1950 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
OD1238-12MBFAN AXIAL 120X38.5MM 12VDC WIRE |
20 | - |
|
数据表 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 95.0 CFM (2.66m³/min) | 0.230 in H2O (57.3 Pa) | Ball | - | Tubeaxial | - | 38.50mm | 41.0dB | 4 W | cURus, TUV | 2540 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
ODB600-12MBFAN BLOWER 120.5X32MM 12VDC WIRE |
43 | - |
|
数据表 |
ODB600PT | Box | Active | 12VDC | Square/Rounded - 120.5mm L x 120.5mm H | 25.0 CFM (0.700m³/min) | 0.470 in H2O (117.1 Pa) | Ball | - | Blower | - | 32.00mm | 42.0dB | - | cURus | 2500 RPM | -4 ~ 176°F (-20 ~ 80°C) | 2 Wire Leads | - |
|
512F/2-531FAN AXIAL 50X15MM 12VDC WIRE |
15 | - |
|
数据表 |
500F | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 11.8 CFM (0.330m³/min) | - | Sintec | - | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 30.0dB(A) | 1 W | - | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9RA0848P4G0011FAN AXIAL 80X25MM 48VDC WIRE |
93 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.36 W | cURus, TUV | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA0848P4G001FAN AXIAL 80X25MM 48VDC WIRE |
36 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.36 W | cURus, TUV | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
OD8038-12HBIP69KFAN AXIAL 80X38MM 12VDC WIRE |
83 | - |
|
数据表 |
OD8038-IP69K | Box | Active | 12VDC | Square - 80mm L x 80mm H | 71.0 CFM (1.99m³/min) | 0.580 in H2O (144.5 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 49.0dB(A) | 7.2 W | CE, cURus, TUV, UR | 5000 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof |
|
9G1212G1D01FAN AXIAL 120X38MM 12VDC WIRE |
96 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 49.0dB(A) | 11.76 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9G1212G1011FAN AXIAL 119X38MM 12VDC WIRE |
77 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 11.76 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
BFB1248H-F00FAN BLOWER 120X32MM 48VDC WIRE |
0 | - |
|
数据表 |
BFB | Bulk | Obsolete | 48VDC | Square/Rounded - 120mm L x 120mm H | 31.4 CFM (0.879m³/min) | 0.748 in H2O (186.3 Pa) | Ball | 0.508 lb (230.42 g) | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 32.00mm | 51.0dB(A) | 7.2 W | CE, CSA, UL, VDE | 2500 RPM | 14 ~ 140°F (-10 ~ 60°C) | 3 Wire Leads | - |
|
|
9G1224E1D011FAN AXIAL 119X38MM 24VDC WIRE |
17 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Sensor | 38.00mm | 46.0dB(A) | 8.16 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9GA0824A20021FAN AXIAL 80X32MM 24VDC WIRE |
49 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | - | - | Ball | - | Tubeaxial | Locked Rotor Protection | 32.00mm | - | 3.6 W | - | - | - | 2 Wire Leads | - |
|
|
DC1203848V2B-BT0FAN 120X38MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 135.7 CFM (3.80m³/min) | 0.540 in H2O (134.5 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 48.0dB(A) | 38.4 W | CE, cURus | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC1203848U2B-BT0FAN 120X38MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 123.3 CFM (3.45m³/min) | 0.450 in H2O (112.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 44.0dB(A) | 36 W | CE, cURus | 2900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0603824I2B-2T2FAN 60X38MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 43.1 CFM (1.21m³/min) | 0.900 in H2O (224.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 51.0dB(A) | 12.48 W | CE, cURus | 8000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC0603824J2B-2T2FAN 60X38MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 54.0dB(A) | 16.32 W | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
|
DC1203848J2B-BT0FAN 120X38MM 48VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 190.5 CFM (5.33m³/min) | 0.690 in H2O (171.8 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 56.0dB(A) | 72 W | CE, cURus | 4100 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
PSD1204PBB1-A(2).Z.GNFAN AXIAL 40X24MM 12VDC WIRE |
0 | - |
|
数据表 |
MagLev® PSD | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 21.6 CFM (0.605m³/min) | 1.233 in H2O (307.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 24.00mm | 55.7dB(A) | 6 W | - | 14700 RPM | - | 2 Wire Leads | - |
|
ODB1232-12HBFAN BLOWER 120X32MM 12VDC WIRE |
0 | - |
|
数据表 |
ODB1232 | Box | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 33.0 CFM (0.924m³/min) | 0.920 in H2O (229.2 Pa) | Ball | - | Blower | - | 32.00mm | 55.0dB | - | cURus | 2600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
