直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

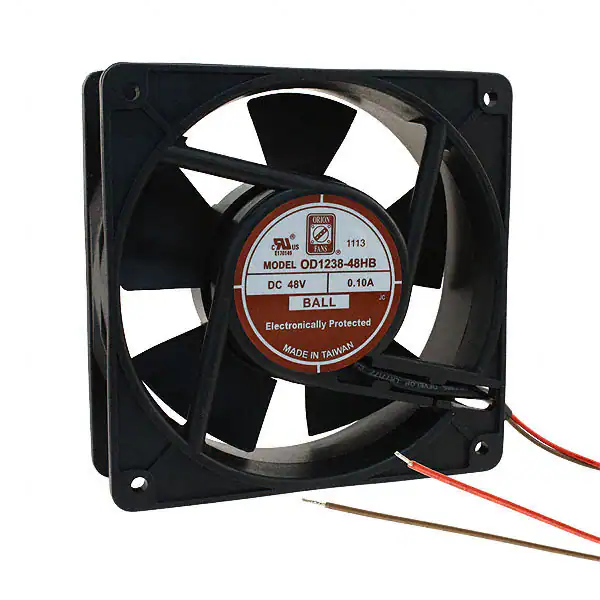

OD1238-48HBFAN AXIAL 120X38MM 48VDC WIRE |
8 | - |
|
数据表 |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | 0.572 lb (259.45 g) | Tubeaxial | Auto Restart | 38.00mm | 44.1dB(A) | 14 W | CE, cURus, TUV, UR | 2895 RPM | -4 ~ 149°F (-20 ~ 65°C) | 2 Wire Leads | - |
|
252/2NFAN AXIAL 25X8MM 12VDC WIRE |
75 | - |
|
数据表 |
250 | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 1.9 CFM (0.053m³/min) | - | Sintec | - | Tubeaxial | Speed Sensor (Tach) | 8.00mm | 15.0dB(A) | 500 mW | - | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|

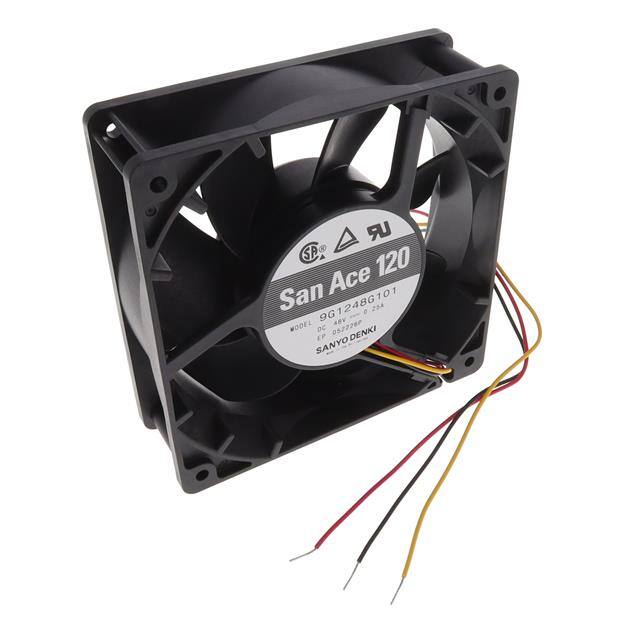

9G1248G101FAN AXIAL 119X38MM 48VDC WIRE |
37 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 137.0 CFM (3.84m³/min) | 0.542 in H2O (135.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 49.0dB(A) | 12 W | CSA, TUV, UL | 3600 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9G1248E101FAN AXIAL 119X38MM 48VDC WIRE |
19 | - |
|
数据表 |
San Ace 120 | Box | Active | 48VDC | Square - 119mm L x 119mm H | 118.0 CFM (3.30m³/min) | 0.401 in H2O (100.0 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 8.16 W | CSA, TUV, UL | 3100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9RA0812P1K001FAN AXIAL 80X38MM 12VDC WIRE |
51 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 104.5 CFM (2.96m³/min) | 1.230 in H2O (306.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 53.0dB(A) | 18.24 W | cURus, TUV | 8250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9GA0824P1H611FAN AXIAL 80X38MM 24VDC WIRE |
15 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 79.5 CFM (2.23m³/min) | 1.528 in H2O (380.6 Pa) | Ball | 0.353 lb (160.12 g) | Tubeaxial | PWM Control, Speed Sensor (Tach) | 38.00mm | 55.0dB(A) | 7.2 W | CSA, TUV, UL | 8250 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA0948P4G0011FAN AXIAL 92X25MM 48VDC WIRE |
34 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.36 W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA0948P4G001FAN AXIAL 92X25MM 48VDC WIRE |
18 | - |
|
数据表 |
San Ace 92 | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 63.5 CFM (1.78m³/min) | 0.290 in H2O (72.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.36 W | cURus, TUV | 4200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
9CRA0412P4J03FAN AXIAL DUAL 40X48MM 12VDC |
67 | - |
|
数据表 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 30.0 CFM (0.840m³/min) | 2.250 in H2O (560.0 Pa) | Ball | 0.176 lb (80.00 g) | Tubeaxial (Dual) | Counter-Rotating, Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.00mm | 62.0dB(A) | 14.4 W | CSA, TUV, UL | 16200 Front, 10800 Rear | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads per Fan | - |
|

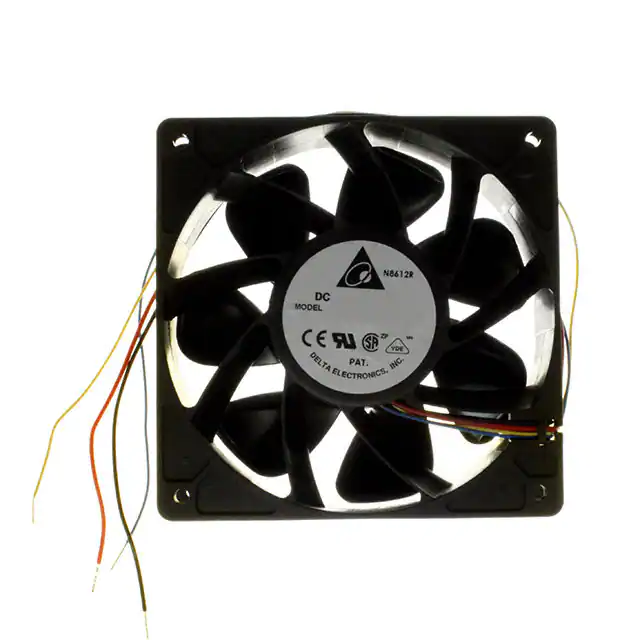

QFR1212EHEFAN AXIAL 120X38MM 12VDC WIRE |
59 | - |
|
数据表 |
QFR | Box | Not For New Designs | 12VDC | Square - 120mm L x 120mm H | 173.8 CFM (4.87m³/min) | 0.844 in H2O (210.2 Pa) | Ball | 0.728 lb (330.22 g) | Tubeaxial | Locked Rotor Protection | 38.00mm | 59.0dB(A) | 12 W | CE, CSA, UL, VDE | 5000 RPM | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
|
712F/2L-005FAN AXIAL 70X15MM 12VDC RECT |
19 | - |
|
数据表 |
700F | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 16.5 CFM (0.462m³/min) | - | Sintec | - | Tubeaxial | Speed Sensor (Tach) | 15.00mm | 25.0dB(A) | 600 mW | - | 3300 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Position Rectangular Connector | - |
|
4414FGFAN AXIAL 119X25.4MM 24VDC WIRE |
30 | - |
|
数据表 |
4400F | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 100.1 CFM (2.80m³/min) | - | Sintec | 0.386 lb (175.09 g) | Tubeaxial | Locked Rotor Protection | 25.40mm | 50.0dB(A) | 5 W | CE, CSA, UL, VDE | 2900 RPM | -4 ~ 140°F (-20 ~ 60°C) | 2 Wire Leads | - |
|
614NLFAN AXIAL 60X25.4MM 24VDC WIRE |
15 | - |
|
数据表 |
600N | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 12.4 CFM (0.347m³/min) | - | Ball | 0.145 lb (65.77 g) | Tubeaxial | - | 25.40mm | 16.0dB(A) | 900 mW | CE, CSA, UL, VDE | 2500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
9RA1248P4G001FAN AXIAL 120X25MM 48VDC WIRE |
16 | - |
|
数据表 |
San Ace 120 | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 130.0 CFM (3.64m³/min) | 0.480 in H2O (119.6 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.00mm | 47.0dB(A) | 7.2 W | cURus, TUV | 4500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9G1212H401FAN AXIAL 119X25MM 12VDC WIRE |
57 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 119mm L x 119mm H | 88.0 CFM (2.46m³/min) | 0.257 in H2O (64.0 Pa) | Ball | 0.529 lb (239.95 g) | Tubeaxial | Speed Sensor (Tach) | 25.00mm | 40.0dB(A) | 3.72 W | CSA, TUV, UL | 2850 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
12038VA-48P-EA-00FAN AXIAL 120X38MM 48VDC WIRE |
79 | - |
|
数据表 |
12038VA | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | - | - | Ball | - | Tubeaxial | Auto Restart | 38.00mm | - | - | - | - | 14 ~ 140°F (-10 ~ 60°C) | 2 Wire Leads | - |
_Series.jpg)
|
3412NGHFAN AXIAL 92X25.4MM 12VDC WIRE |
43 | - |
|
数据表 |
3400N | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 55.3 CFM (1.55m³/min) | - | Sintec | 0.22 lb (99.79 g) | Tubeaxial | - | 25.40mm | 36.0dB(A) | 2.5 W | CSA, UL, VDE | 3000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 2 Wire Leads | - |
|
CFM-A225BF-240-516FAN AXIAL 120X25.4MM 24VDC WIRE |
0 | - |
|
数据表 |
CFM-120 BF | Box | Active | 24VDC | Square - 120mm L x 120mm H | 128.0 CFM (3.58m³/min) | 0.470 in H2O (117.1 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.40mm | 51.7dB(A) | 12.72 W | CE, cURus, TUV | 4000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
GF80251B7-000U-AE9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 28.0dB(A) | 1.01 W | CE, CUR, TUV, UL | 2600 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
GF80251B5-000U-AE9Thermal Products |
0 | - |
|
数据表 |
GF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Ball | - | Tubeaxial | Auto Restart | 25.00mm | 33.0dB(A) | 1.74 W | CE, CUR, TUV, UL | 3200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
