直流无刷风扇（BLDC）
| 图片 | 厂商料号 | 库存情况 | 价格 | 数量 | 数据表 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 气流 | 静压 | 轴承类型 | 重量 | 风扇类型 | 特性 | 宽度 | 噪音 | 功率（瓦特） | 认证机构 | 转速（RPM） | 工作温度 | 端接方式 | 防护等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0603848J2B-3T0FAN 60X38MM 48VDC TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 48VDC | Square - 60mm L x 60mm H | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 32.64 W | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0603824L2B-BT0FAN 60X38MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 55.2 CFM (1.55m³/min) | 1.410 in H2O (351.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 57.0dB(A) | 24 W | CE, cURus | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
DC0603824J2B-BT0FAN 60X38MM 24VDC PWM/TACH |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 50.6 CFM (1.42m³/min) | 1.190 in H2O (296.4 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 54.0dB(A) | 16.32 W | CE, cURus | 9000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|

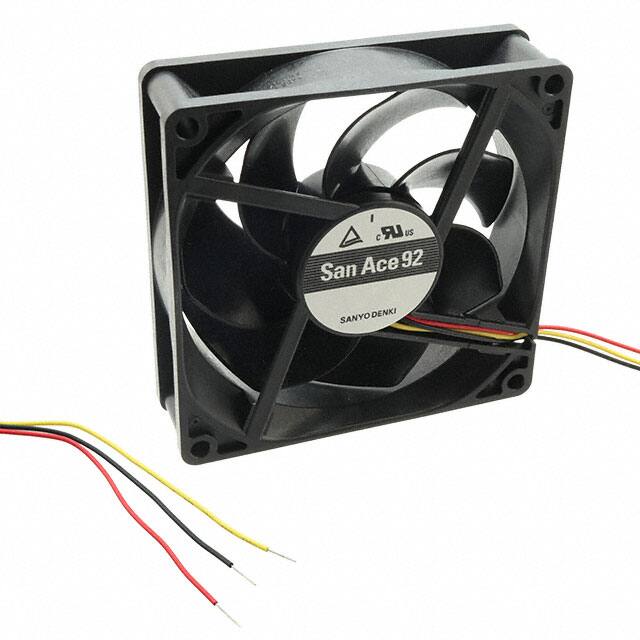

9GA0924J401FAN AXIAL 92X25.2MM 24VDC WIRE |
46 | - |
|
数据表 |
San Ace 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 77.7 CFM (2.18m³/min) | 0.420 in H2O (104.6 Pa) | Ball | 0.276 lb (125.19 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.20mm | 43.0dB(A) | 4.8 W | CSA, TUV, UL | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
9GV0812G101FAN AXIAL 80X38MM 12VDC WIRE |
53 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 138.0 CFM (3.86m³/min) | 1.970 in H2O (490.7 Pa) | Ball | 0.485 lb (220.00 g) | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.00mm | 65.0dB(A) | 45.6 W | CSA, TUV, UL | 10200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 3 Wire Leads | - |
|
OD9238-24HBIP68FAN AXIAL 92X38MM 24VDC WIRE |
81 | - |
|
数据表 |
OD9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | - | 0.700 in H2O (174.4 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 38.00mm | 56.0dB | 9.6 W | cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
PMD1208PMB2-A (2).GN.IP55FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 74.5 CFM (2.09m³/min) | 0.570 in H2O (142.0 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.00mm | 51.6dB(A) | 6.4 W | CE, CUR, TUV, UL | 4900 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
OD9238-48HBIP68FAN AXIAL 92X38MM 48VDC WIRE |
6 | - |
|
数据表 |
OD9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | - | 0.700 in H2O (174.4 Pa) | Ball | 0.441 lb (200.00 g) | Tubeaxial | Auto Restart | 38.00mm | 56.0dB | 12 W | cURus, TUV | 4500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP68 - Dust Tight, Waterproof |
|
|
PMD1208PMB3-A (2).GN.IP55FAN AXIAL 80X38MM 12VDC WIRE |
0 | - |
|
数据表 |
PMD | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 59.5 CFM (1.67m³/min) | 0.430 in H2O (107.1 Pa) | Ball | - | Tubeaxial | Auto Restart, Locked Rotor Protection | 38.00mm | 47.3dB(A) | 4.4 W | CE, CUR, TUV, UL | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | IP55 - Dust Protected, Water Resistant |
|
9RA1212A4001FAN AXIAL 120X25MM 12VDC WIRE |
81 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 101.2 CFM (2.83m³/min) | 0.293 in H2O (73.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 3.6 W | cURus, TUV | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
OD6038-12HBVXC10AFAN AXIAL 60X38MM 12VDC WIRE |
0 | - |
|
数据表 |
OD6038 VA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 61.0 CFM (1.71m³/min) | 1.590 in H2O (396.1 Pa) | Ball | - | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.00mm | 64.0dB | 17 W | cURus, TUV | 10000 RPM | 14 ~ 158°F (-10 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA1212M40011FAN AXIAL 120X25MM 12VDC WIRE |
56 | - |
|
数据表 |
San Ace 120 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 63.5 CFM (1.78m³/min) | 0.116 in H2O (29.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 28.0dB(A) | 1.44 W | cURus, TUV | 2200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
DC0803824L2B-2T2FAN 80X38MM 24VDC MOLEX 22-01-10 |
0 | - |
|
数据表 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 58.2 CFM (1.63m³/min) | 0.410 in H2O (102.1 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection | 38.00mm | 45.0dB(A) | 9.6 W | CE, cURus | 4200 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Position Rectangular Connector | - |
|
9RA0848G4001FAN AXIAL 80X25MM 48VDC WIRE |
40 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.36 W | cURus, TUV | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
CFM-9238BF-265-535DC AXIAL FAN, 92 MM SQUARE, 38 M |
0 | - |
|
数据表 |
CFM-92BF | Box | Active | 24VDC | Square - 92mm L x 92mm H | 88.3 CFM (2.50m³/min) | 1.040 in H2O (258.0 Pa) | Ball | - | Tubeaxial | Auto Restart | 38.00mm | 53.5dB(A) | 4.2 W | CE, cURus, TUV | 6500 RPM | 14 ~ 158°F (-10 ~ 70°C) | 2 Wire Leads | - |
|
|
9RA1224M4001FAN AXIAL 120X25MM 24VDC WIRE |
36 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 63.5 CFM (1.78m³/min) | 0.116 in H2O (29.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 28.0dB(A) | 1.68 W | cURus, TUV | 2200 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0848G40011FAN AXIAL 80X25MM 48VDC WIRE |
30 | - |
|
数据表 |
San Ace 80 | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 49.4 CFM (1.38m³/min) | 0.330 in H2O (82.2 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 37.0dB(A) | 3.36 W | cURus, TUV | 5000 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA1224A4001FAN AXIAL 120X25MM 24VDC WIRE |
27 | - |
|
数据表 |
San Ace 120 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 101.2 CFM (2.83m³/min) | 0.293 in H2O (73.0 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 25.00mm | 42.0dB(A) | 3.84 W | cURus, TUV | 3500 RPM | -4 ~ 158°F (-20 ~ 70°C) | 3 Wire Leads | - |
|
|
9RA0824P1G001FAN AXIAL 80X38MM 24VDC WIRE |
95 | - |
|
数据表 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 85.5 CFM (2.39m³/min) | 0.830 in H2O (206.7 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 48.0dB(A) | 9.84 W | cURus, TUV | 6750 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
|
|
9RA0812P1H001FAN AXIAL 80X38MM 12VDC WIRE |
50 | - |
|
数据表 |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 77.3 CFM (2.19m³/min) | 0.670 in H2O (166.9 Pa) | Ball | - | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 38.00mm | 46.0dB(A) | 7.92 W | cURus, TUV | 6100 RPM | -4 ~ 158°F (-20 ~ 70°C) | 4 Wire Leads | - |
